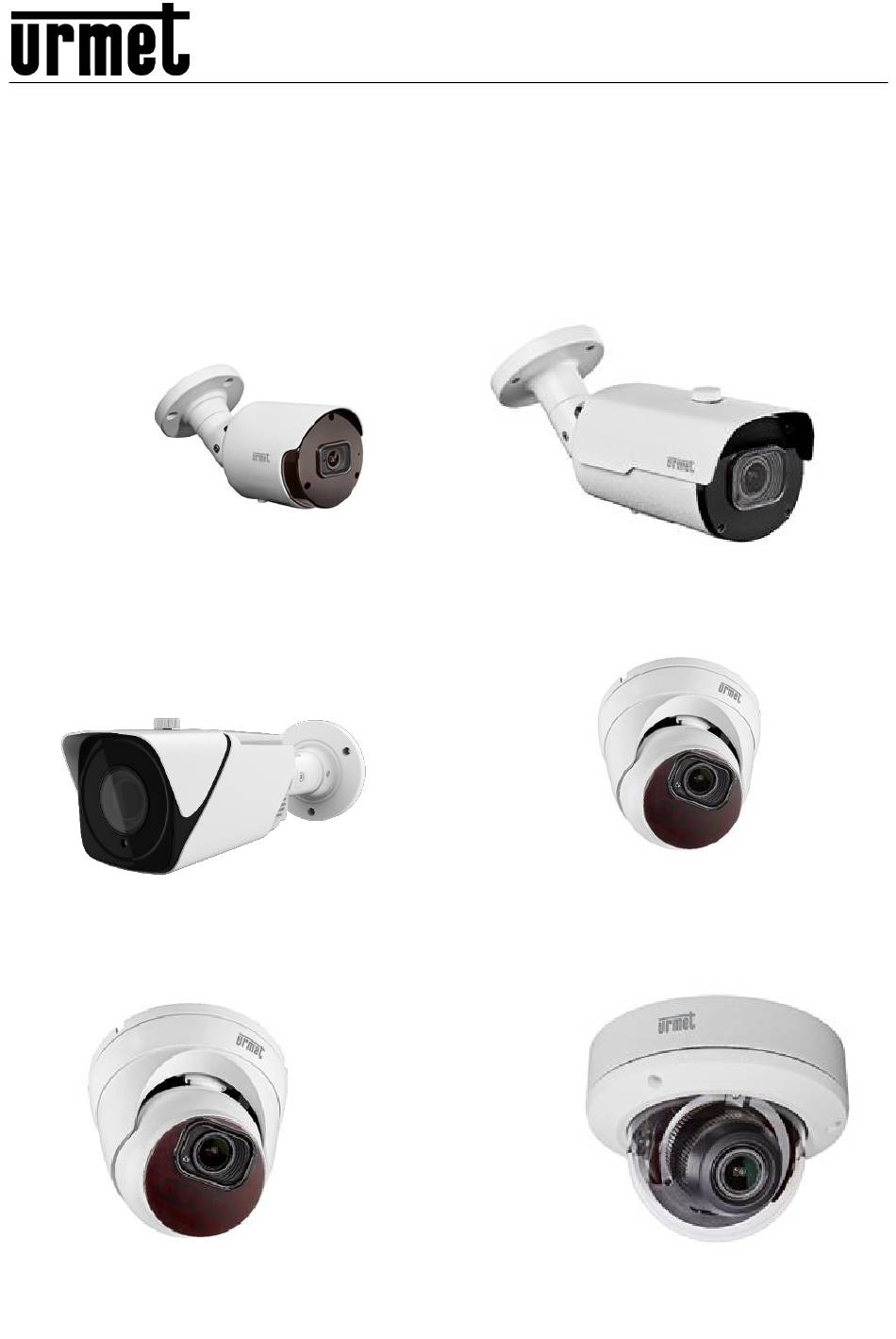

- Page 1 Mod. 1099 DS1099-130B H.265 5M ECO 2 IP Camera Bullet Camera IP Sch. 1099/500A Bullet Camera IP Varifocal Sch. 1099/501A Bullet Camera IP Varifocal Sch.1099/502A Camera IP 1099/550A Dome Camera IP Varifocal 1099/551A Vandal Dome IP Sch. 1099/552A...
- Page 2 H.265 5M ECO 2 IP Camera Bullet Camera IP Deterrence Sch. 1099/208A Cube Camera IP WIFI 2M 1099/210 DS1099-130B...
-
Page 3: Table Of Contents
USER MANUAL English CONTENTS Introduction ..............................5 Product Description ..........................6 Technical characteristics ......................6 Opening the Box ........................6 Warnings ...........................7 Overview ..............................9 Range of Application .........................9 Product description ........................9 Operating environment ......................9 IP Camera Connector Layout (Where FEATURED) .............. 10 Operating instructions ........................... 11 Checking the Connection ....................... - Page 4 9.4.3 FTP ................................33 9.4.4 RTSP ................................33 9.4.5 DDNS Configuration ........................... 34 9.4.6 HTTPS ................................ 35 9.4.7 IP Filter ............................... 35 Device ............................. 36 9.5.1 DISK ................................36 9.5.2 Audio................................37 9.5.3 Cloud ................................38 System ............................ 39 9.6.1 General ...............................
-
Page 5: Introduction
INTRODUCTION Thank you for purchasing our integrated and developed network camera products for network video monitoring. Our range includes the following products: Storage Network Bullet, Wireless Storage Network Bullet, IR Network Dome, IR Network Weather-Proof and High-Speed Network Ball cameras. Individual high-performance SOC chips are used in the media processor for audio/video capture, compression and transmission/transfer. -
Page 6: Product Description
PRODUCT DESCRIPTION URMET S.p.A. Ref. 1099/500A, Ref. 1099/501A, Ref. 1099/502A, Ref. 1099/550A, Ref. 1099/551A, Ref. 1099/552A and Ref. 1099/208A, are Eco 2 Series 5 Megapixel IP cameras, which can be controlled by a TCP/IP network connection. URMET S.p.A. Ref. 1099/210 is instead a Wi-Fi IP Camera 2MegaPixel. TECHNICAL CHARACTERISTICS ➢... -
Page 7: Warnings
WARNINGS Power supply ➢ Before connecting the equipment to the electrical outlet, ensure that the nameplate specifications match those of the mains power supply. ➢ It is advisable to install a suitable disconnection and protection switch upstream from the equipment. ➢... - Page 8 Urmet “Device Config Tool” software can be used to change the IP address and other network settings to prevent conflict with other devices on the network. ➢ Once the camera is properly connected and configured on the IP network, its video and settings can be viewed from a PC or smartphone.
-
Page 9: Overview
OVERVIEW RANGE OF APPLICATION These network cameras with their powerful image processing capacity can be used in various public places, such as malls, supermarkets, schools, factories and workshops, as well as in environments requiring HD images, such as banks and traffic control systems, as illustrated in the figure below: Monitoring centre PRODUCT DESCRIPTION An IP camera is an online digital surveillance camera, equipped with a web server and capable of independent operation,... -
Page 10: Ip Camera Connector Layout (Where Featured)
Device Connection The IP camera can be connected in two ways: • Connection to a PC Connect the IP camera to the PC using a direct network cable, with the power input connected to a 12VDC adaptor, and enter the IP addresses of the PC and the camera in a network segment. The IP camera will communicate with the PC within one minute after being switched on if the network is working properly. -
Page 11: Operating Instructions
OPERATING INSTRUCTIONS CHECKING THE CONNECTION • The factory default IP address for the IP camera is 192.168.1.168 and the subnet mask is 255.255.255.0. Give your computer an IP address in the same network segment as the IP camera (e.g., 192.168.1.69) and the same subnet mask as that of the IP camera. -
Page 12: Installation Of Controls And Login To The System
Online device search procedure Run Device Config Tool by double-clicking on the icon. It will search for and display any online device and its IP address, port number, web port number, number of channels, configured name, device type and version, subnet mask, gateway, MAC address, connection pattern and status. -
Page 13: Preview
Click OK to confirm. (It is possible, at this stage, to choose the language) A window will then appear in which you can select and configure the password recovery modes in case the password is lost. ➢ Security Question Configuration: choose one of the suggested questions and enter the answer (if the function is enabled you must fill in all the security questions);... -
Page 14: Recovery Password
In the login window you can choose a language. Enter your username (admin by default) and password (set previously) and then press Login. RECOVERY PASSWORD If you lose your password, you can simply click on the Password Recovery button and choose one of the modes set previously when changing your password. -
Page 15: Certificate Of Authorisation
5.3.2 CERTIFICATE OF AUTHORISATION Import the previously saved certificate (.txt file) and type the new password, then confirm by clicking on the OK button. 5.3.3 SUPER CODE Contact Urmet Customer Service, having previously written down the date and time of the camera, and the MAC ADDRESS (which you can find with the Device Config Tool, available for download from the website www.urmet.com). -
Page 16: Ptz Control
: (Colour) Button for setting the colour, brightness, contrast, saturation and sharpness of the frame. : (PTZ control) the PTZ interface appears when you click on the icon. : (IA Alarm) Button to open/close the window for alarms generated by intelligent video analysis. : (Manual Alarm): Button to manually activate the camera's alarm output. -
Page 17: Local Settings
LOCAL SETTINGS Select Local Settings to access the following dialogue window: here you can set the video storage location, paths for downloading remote files and storing snapshot images, the file type (MP4 by default, AVI or RF with H265 encryption), video recording duration and screen capture file type BMP, PNG or JPG. -
Page 18: Playback Controls
PLAYBACK CONTROLS ：from left to right, Play/Pause, Stop, Next frame, (select once to play a frame), Record, Capture, Download, Zoom, Play all, Stop all, Audio control. ：from left to right, Zoom, Original proportions, Increase scale, Full screen. With Tag option, it will be possible to search on the basis of saved tags. REMOTE SETTING DISPLAY CONFIGURATION 9.1.1... -
Page 19: Image Control
Name: name of the IP camera. Date Format: choose the format type for the date. Time Format: Choose the format type for the time. Flicker control: Choose 50Hz or 60Hz. Show Name: the camera name is displayed. Show Time: the date and time are displayed. OSD Self-adaptive: the red text on the frame;... -
Page 20: Privacy Zone
9.1.3 PRIVACY ZONE Select Video Cover under Channel to open the following page: Enable Video Cover, and then use the left mouse button to trace rectangles around areas not to be displayed during recording, in screenshots and in Live viewing. Save when done to keep the settings. Press Save to save the desired setting. -
Page 21: Record
• Video Code Type: Sets the video encoding (H265/H264/H265+/H264+) for each bit stream. • Video Code Level: Main Profile • Bitrate control: Sets the constant or variable bitrate for the stream. • Bitrate Mode: User-defined or Predefined. • Bitrate: To set the Bitrate level Note: ➢... -
Page 22: Schedule
9.2.3 SCHEDULE Select Schedule in the menu Record to access the page below. Example: a box in the table is equivalent to 30 minutes; green indicates continuous recording. EVENT 9.3.1 SETUP 9.3.1.1 MOTION DETECTION Motion detection setting procedure: • Select Enable •... -
Page 23: Pir (Only For Some Models)
9.3.1.2 PIR (Only for some models) PIR detection setting procedure: • Select Enable. • Hold down the left mouse button and drag over the image to colour (red) an area in which to define the PIR detection area. • Clear/All: Allows you to select or deselect the entire displayed area. •... -
Page 24: Siren (Only For Some Models)
9.3.1.4 Siren (Only for some models) • Siren: enables the siren in the event of an event detected. • Siren Type: Alarm1 type. • Siren Level: You can set the intensity of the siren sound on a scale from 1 to 10. •... -
Page 25: Alarm Output Settings
IMPORTANT NOTE: ➢ Sending push notifications is not available for the sound detection event using the connected Camera alone. If you want to receive push notifications on the App regarding this type of event, you must associate and connect the IP Camera to NVR/HVR. 9.3.2 ALARM OUTPUT SETTINGS 9.3.2.1... -
Page 26: I/O (Input/Output) [Where Featured]
Send an email, switch the alarm output (if provided), send an image to an FTP Server, send an image to the cloud (Dropbox), enable recording on an SD card, enable white light (if provided) or enable siren (if provided). Press Save to save the desired setting. 9.3.2.2 I/O (INPUT/OUTPUT) [where featured] •... -
Page 27: Pir (Only For Some Models)
Send an email, switch the alarm output (if included), send an image to an FTP Server, send an image to the cloud (Dropbox), enable recording on an SD card, enable white light (if provided) or enable siren (if provided). Press Save to save the desired setting. 9.3.2.3 PIR (Only for some models) •... -
Page 28: Sound Detection
9.3.2.4 Sound detection • Latch Time: To set the alarm output time (5S,10S, 20S, 30S). [for models where featured] • Post Recording: When Enable Record is selected, the recording delay can then be set (5S, 10S, 20S or 30S). • Send Mail: a function used with SMTP to enable the sending of e-mail. -
Page 29: Event Push
9.3.3 EVENT PUSH In this section, you can enter the server on which to receive Push notifications. Enable: enables the functionality of sending PUSH to an HTTP or UDP server. Name: enter the name of the server Push Way: choose the server type between HTTP and UDP server. -
Page 30: Pppoe
• Gateway: this address allows the camera to access the Internet. The Gateway address format is identical to that of the IP address, e.g., “192.168.001.001”. • IPv6 DHCP: enables automatic IPv6 addressing. • IPv6 Address: enables manual entry of IPv6 address. •... -
Page 31: Snmp
subnetwork address also consists of four groups of digits, separated by dots. For example, '255.255.000.000'. It is possible to enter the subnet mask in the case of STATE IP addressing. • Gateway: This address allows the camera to access the Internet. The format of the Gateway address is identical to that of the IP address. -
Page 32: Port Configuration
9.4.1.5 Port Configuration • HTTP Port: this is the port that will be used to connect remotely with the camera (i.e. via the Web Client). If the default port 80 is already in use by other applications, you must change it. •... -
Page 33: Ftp
• Username: sets the user name used for authentication on the SMTP server. • Password: sets the password assigned to the email account by the sender. • Sender: indicates the sender’s Email address. The email address must be consistent with the server used. In other words, if the email address –... -
Page 34: Ddns Configuration
9.4.5 DDNS CONFIGURATION Select DDNS in the Network menu to open the following page: DDNS (Dynamic DNS) is a service used to record a domain name and floating IP address with the DDNS server so that the domain name can be routed towards the IP address even if it is changed in a dynamic IP system. The user can access a remote camera using DDNS on the three previous types (Static, DHCP and PPPoE). -
Page 35: Https
9.4.6 HTTPS In this menu you can set the security encryption protocol. • Certificate Type: Default or Custom 9.4.7 IP FILTER Select IP Filter in the Network menu to open the following page: • Enable: if Enable is selected the Whitelist and Blacklist can be configured. •... -
Page 36: Device
Once the choice of address or address class has been confirmed, confirm with OK; the setting will be displayed in the menu below: You can edit the address list with the Edit button or delete the list with the Delete button. Press Save to save the desired setting. -
Page 37: Audio
9.5.2 AUDIO Click on Audio in the Device menu to open the following page: Audio setup procedure: • Select the Enable Audio option to access the audio parameters. • set Output Volume and Input Volume (0~10) • Audio Code Type: Choose the audio encoding between G711A (default) and G711U •... -
Page 38: Cloud
9.5.3 CLOUD In the event of an alarm, the IP camera is capable of sending images and video to a Cloud storage service via Dropbox, a free service that allows you to easily store and share snapshots and always have them on hand when needed. The configuration can be accessed under Cloud in the DEVICE menu. -
Page 39: System
SYSTEM System parameters include: General, Multi-User, Maintenance and Information. The various interfaces and functions are described below. 9.6.1 GENERAL 9.6.1.1 Date and Time Select General in the System menu to open the following page • Time setting mode: Select the time setting mode, whether Static or NTP Server Synchronisation •... -
Page 40: Multi User
• Daylight Saving Time: ➢ Set by week: Select the month, day and time for the start and end time of daylight saving time. For example, 2: 00 a.m. on the first Sunday of a certain month. ➢ Set by date: select the start date (click the calendar icon), end date and time for activation of daylight saving time. -
Page 41: Maintenance
Add New Users From the same menu you can also enable other users by clicking on the icon for the user to be enabled. • Select Enable • Click the field next to Username to change the user name of the account. -
Page 42: Load Default
• Browse system log events by search period. • Click Export to create a backup of the system log for the period searched, after naming the file, which will be saved in a system folder in .csv format 9.6.3.2 Load Default: Through this menu you can reset the camera’s factory settings You can choose to reset all settings at once or only specific... -
Page 43: Parameter Management
9.6.3.4 Parameter Management export/import the main camera settings. This menu allows you to • Click in the Import file window to open the dialogue where you can select the backup file to import, and confirm by clicking on the Import button. •... -
Page 44: Information
9.6.4 INFORMATION Click on Information in the System menu to open the following page: Some system information on the device is displayed in this section, including device type, MAC address and software version. The QR Code is the P2P ID that can be used via APP or UVS Pro Client for remote connection to the device. DS1099-130B... -
Page 45: 10 Technical Specifications For The Bullet 5M Eco 2 Ip Cameras
10 TECHNICAL SPECIFICATIONS FOR THE BULLET 5M ECO 2 IP CAMERAS Description Starlight Bullet IP Camera Items 1099/500A 1099/501A 1099/502A Image Sensor 1/2.7" Progressive CMOS Sensor Type SC5235 Video Format Optional format P/N Minimum Luminance Color 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON Lens Mount/Lens Type Fixed Lens 2.8 mm 2.7 - 13.5 mm... -
Page 46: Important Notes
Description Starlight Bullet IP Camera Items 1099/500A 1099/501A 1099/502A Multi-Browser Support: IE 10,11, Edge, Chrome, Firefox, Safari Web/Client/ Mobile Urmet UVS Pro Client Support: Windows 7 O.S. or higher / MAC O.S. 10.8.0 or higher iUVS Pro Software Mobile Support: (iOS, Android) SMART Smart analysis capability... -
Page 47: 11 Technical Specifications For The Dome 5M Eco 2 Ip Cameras
11 TECHNICAL SPECIFICATIONS FOR THE DOME 5M ECO 2 IP CAMERAS Descrizione Starlight Vandal Dome IP Camera Starlight Dome IP Camera Items 1099/550A 1099/551A 1099/552A Image Sensor 1/2.7" Progressive CMOS Sensor Type SC5235 Video Format Optional format P/N Minimum Luminance Color 0.05lux @ F1.2(AGC ON) ;... - Page 48 Descrizione Starlight Vandal Dome IP Camera Starlight Dome IP Camera Items 1099/550A 1099/551A 1099/552A NTP, DST, Synchronisation with PC time Multi-Browser Support: IE 10,11, Edge, Chrome, Firefox, Safari Web/Client/ Mobile Urmet UVS Pro Client Support: Windows 7 O.S. or higher / MAC O.S. 10.8.0 or higher iUVS Pro Software Mobile Support: (iOS, Android) SMART Smart analysis...
-
Page 49: Technical Specifications For The Bullet Deterrence Eco 2 Ip Cameras
12 TECHNICAL SPECIFICATIONS FOR THE BULLET DETERRENCE ECO 2 IP CAMERAS General Specifications 1099/208A Power consumption (W) 2.1W(D) / 5.3W(N) Power supply 12Vdc / PoE Dimensions (LxHxD or ØxH in mm) Ø 70mm x 151mm Weight(g) 435g Tipe of case Bullet Product color White (frontal black) - Page 50 Digital noise reduction 3D DNR Backlight Compensation BLC / D-WDR Max 7 (admin+user) No.: Max. Stream/PC access E-mail Alarm Image upload to FTP Server/ Cloud Dropbox FTP/Cloud NTP, DST, Sync. with PC time Hardware features IR illuminator range 2 Array IR LED / White illuminator range 4 PCS Up to 10m PIR angle / Distance...
-
Page 51: 13 Technical Specifications For Cube Camera Ip Wifi 2M
13 TECHNICAL SPECIFICATIONS FOR CUBE CAMERA IP WIFI 2M General Specifications 1099/210 Power consumption (W) ≦ 4.5W Power supply 12Vdc / PoE Dimensions (LxHxD mm) 63x120x33 Weight(g) 195g Tipe of case Plastic Product color White (frontal black) Operating conditions -10°C ~ +45°C Protection rating Indoor Video format... -
Page 52: Led, I/O Interface And Micro Sd Card Slot Description For 1099/210
Image upload to Cloud Dropbox FTP/Cloud NTP, DST, Sync. with PC time Hardware features N. LED IR / illuminator distance (m) 12 Array IR LED / up to 10m N. White LED / White illuminator 1 / up to 10m range (m) PIR angle / Distance Up to 115°, Up to 7 m... -
Page 53: Maximum Recording Time With Sd Card
MAXIMUM RECORDING TIME WITH SD CARD 15.1 REF. 1099/500A – 1099/501A – 1099/502A – 1099/550A – 1099/551A – 1099/552A – 1099/208A The following resolution options can be selected for Main Stream recording: “5Mpx”, “4Mpx”, “3Mpx”, “1080P”, “960P” for IP camera with H.265/ H.265+/ H.264/H264+ codec ➢... -
Page 54: 16.2 Installing Activex
Taking a Cisco router as an example: The IP address of the IP camera is 192.168.1.168, the web port is 8000 and the client port is 9988. 16.2 INSTALLING ACTIVEX If you need to install an ActiveX component, you may do so as follows. Before connecting the PC, activate the IE protection settings, as shown below: Double click on the icon to open Internet Explorer. - Page 55 ➢ Double click on the icon to open Internet Explorer. The “Internet Options” window will appear. ➢ DS1099-130B...
- Page 56 Select the “Trusted Sites” area. ➢ Click “Custom Level” and check that: ➢ • “Initialise and script ActiveX controls not marked as safe” is set to “Enable” or “Prompt”. • “Download signed ActiveX controls” is set to “Enable” or “Prompt”. Check that the Security Level is set to “Low”.
- Page 57 ➢ The following screen will be displayed: You will need to add the IP address of the device (example: in the “Add the website to the zone” field. http://192.168.36.40 Add the IP address of the device in the field and click “Add”. ➢...
-
Page 58: 16.3 Frequently Asked Questions
16.3 FREQUENTLY ASKED QUESTIONS ◆ Internet Explorer cannot load and install plug-ins. Possible cause: IE security level is set too high. Solution: Set IE security level to the minimum level. ◆ After updating, I cannot access the IP Camera through Edge in Internet Explorer mode. Solution: Clear the IE cache as follows: open IE Tools, select Internet Options, select the 2nd option under “Delete Files”... - Page 59 DS1099-130B Technical area URMET S.p.A. customer service 10154 TURIN (ITALY) VIA BOLOGNA 188/C +39 011.23.39.810 http://www.urmet.com Tel. +39 011.24.00.000 (AUTO) e-mail: info@urmet.com +39 011.24.00.300 - 323 MADE IN CHINA DS1099-130B...
