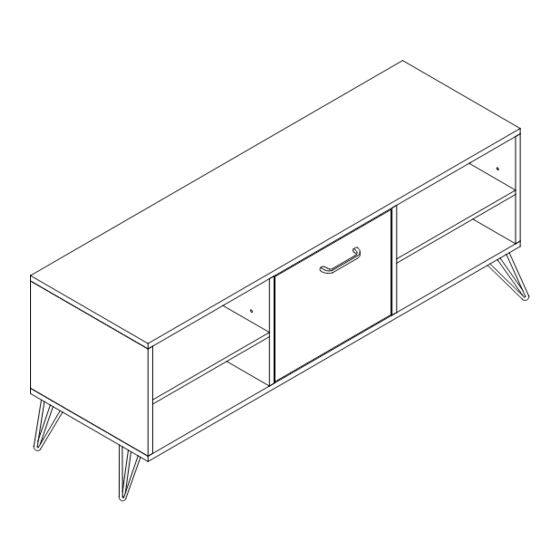

- Page 1 Ivy TV Stand 464/3597 hygena Width - 120cm Depth - 38cm Height - 52.5cm Issue 1-29-10-15...
- Page 2 Do not stand or put excessive weight on the product, this could cause damage.
- Page 3 0345 6400 800 Underside Underside Top panel Base panel (120x37.7x1.5cm) (120x37.7x1.5cm) Side panel x 2 Divider (left) x 1 (30x37.7x1.5cm) (30x37.7x1.5cm) Divider (right) x 1 Drawer front x 1 (30x37.7x1.5cm) (35.5x29.4x1.5cm) Drawer side panel (left) x 2 Drawer side panel (right) x 2 (35x21.5x1.2cm) (35x21.5x1.2cm) Drawer back...
- Page 4 0345 6400 800 Underside Shelf x 2 Back panel (119.8x32.8x0.3cm) (38.7x37.7x1.5cm) Legs x 5...
-
Page 5: Tools Required
Components - Fittings 0345 6400 800 Large locking nut x 16 Small locking nut x 4 Metal dowel x 20 Drawer runners 1 set 4 x 30mm Screw x 4 Wooden dowel x 16 M4 x 16mm Screw x 2 3.5 x 12mm Screw x 12 Handle x 1 M6 x 12mm Screw x 25... - Page 6 Assembly lnstructions Preparing panels Place top panel , base panel and drawer front flat on the floor with the fixing holes facing up. Screw metal dowels into each panel as shown. Note: Screw metal dowels as far as shown. Insert wood dowels into top panel base panel as shown.
- Page 7 Assembly lnstructions Assembling base panel With help, carefully locate base panel into position as shown. Insert large locking nuts into side panels dividers Turn locking nuts clockwise to secure. Shown upside down Assemble legs to base panel using screws...
- Page 8 Assembly lnstructions Assenbling back panel With help, carefully turn the unit onto it's front. Note: Ensure the unit is straight and square. Place back panel into the recess around the back of the unit. Secure using screws Note: Ensure the un-finshed side of back panel is facing out as...
- Page 9 Assembly lnstructions Assembling drawer a: Locate drawer back in between drawer side panels . Secure using screws b: Place drawer base into the grooves in back panel c: Locate drawer front onto the drawer body. Insert small locking nuts into drawer side Turn locking nuts clockwise to secure.
- Page 10 Assembly lnstructions Locating drawer Carefully slide drawer into position as shown. Insert shelf support pins into side panels dividers at the desived height. Carefully locate shelves onto the support pins.
- Page 11 Assembly lnstructions If you need help or have damaged or missing parts, call the Customer Helpline: 0345 6400 800 Home Retail Group. 489-499 Avebury Boulevard. Saxon Gate West. Central Milton Keynes. MK9 2NW...
