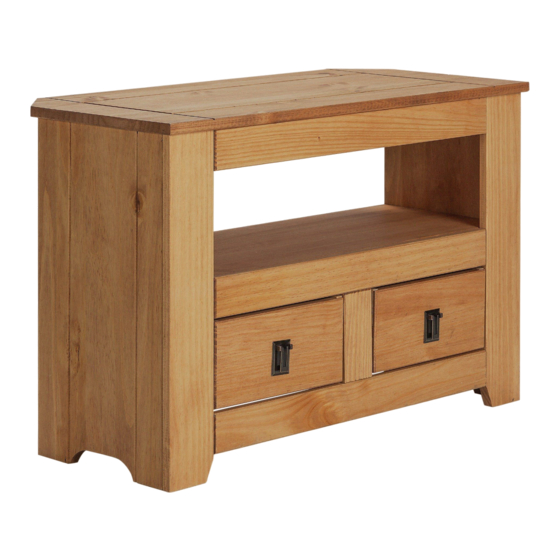

Corner tv unit

Advertisement

Quick Links

PENTON - Corner TV Unit
Assembly Instructions
- Please keep for future reference
462/6198
Dimensions
Width - 85cm
Depth - 40cm
Height - 57cm
Important –
Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the
Customer Helpline: 03456 400 800
Issue 1 - 15/09/15

Advertisement

loading
Need help?

Need help?

Do you have a question about the PENTON and is the answer not in the manual?

Questions and answers

Summary of Contents for Argos PENTON

  • Page 1 PENTON - Corner TV Unit Assembly Instructions - Please keep for future reference 462/6198 Dimensions Width - 85cm Depth - 40cm Height - 57cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the...
  • Page 2 Safety and Care Advice Important – Please read these instructions fully before starting assembly Check you have all the This product has been produced We do not components and tools listed on from natural timber; you may recommend the pages 2 and 3. notice some variation in the grain use of power and colour of different component...
  • Page 3 Components - Panels Please check you have all the panels listed below 7 Back panel (81.2 x 27cm) 1 Top panel (85 x 40cm) 8 Top front frame (68.6 x 6.5cm) underside 9 Bottom front frame x 2 (68.6 x 6.5cm) 2 Base panel (79.4 x 28.4cm) 10 Cross rail...
  • Page 4: Tools Required

    Components - Fittings If you have damaged or missing components, call the Customer Helpline: 03456 400 800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
  • Page 5 Assembly Instructions Step 1 Fixing right front frame to the right side panel (Two people required for an easier assembly). Insert right side panel into right front frame through joints. Yes! Note: Before fixing Attention: correct blocks into position of panel. place it is important to ensure that the slot and groove of parts...
  • Page 6 Assembly Instructions Step 3 Insert dowels into the indicated parts. Step 4 Fitting Metal dowels. Screw metal dowels into top panel and side panels Note: Insert metal dowels as far as shown. Do not over tighten.
  • Page 7 Assembly Instructions Step 5 Fixing side drawer runners. Fit side drawer runner to the right side panel. Fit and push dowels into the front frame first. Attach side drawer runner using screw Repeat step 5 for the left side panel and side drawer runner.
  • Page 8 Assembly Instructions Step 7 Insert the assembled frame and top front frame into the holes on left side panel Note: The hole position. Step 8 Fixing base panel. With help, fit base panel to the left side panel. Note: The hole position.
  • Page 9 Assembly Instructions Step 9 Fixing middle drawer runner. Attention: Fit middle drawer runner to the vertical frame then fix using screw Attention: Make sure middle drawer runner is positioned as shown in the diagram prior to fixing. Step 10 Fixing back column. Attention Fit back column the base panel...
  • Page 10 Assembly Instructions Step 11 Fixing cross rail. Fit cross rail to the left side panel and back column then fix it using screws Step 12 Fixing right side panel. With help, place right side panel properly ensuring dowels and front frames are all fit into their holes at the same time.
  • Page 11 Assembly Instructions Step 13 Fixing top panel. Caution: Carefully lay the top panel on a soft and clean surface to avoid damaging the product. With help, f it cabinet to the top panel Insert locking nuts into side p anel where shown.
  • Page 12 Assembly Instructions Step 15 Drawer assembly. Attach drawer sides to the drawer front using screws Slide drawer bottom into slots on drawer sides and position drawer back in place. Holding the drawer back , press the drawer sides and fix them using screws Using bolts attach...
