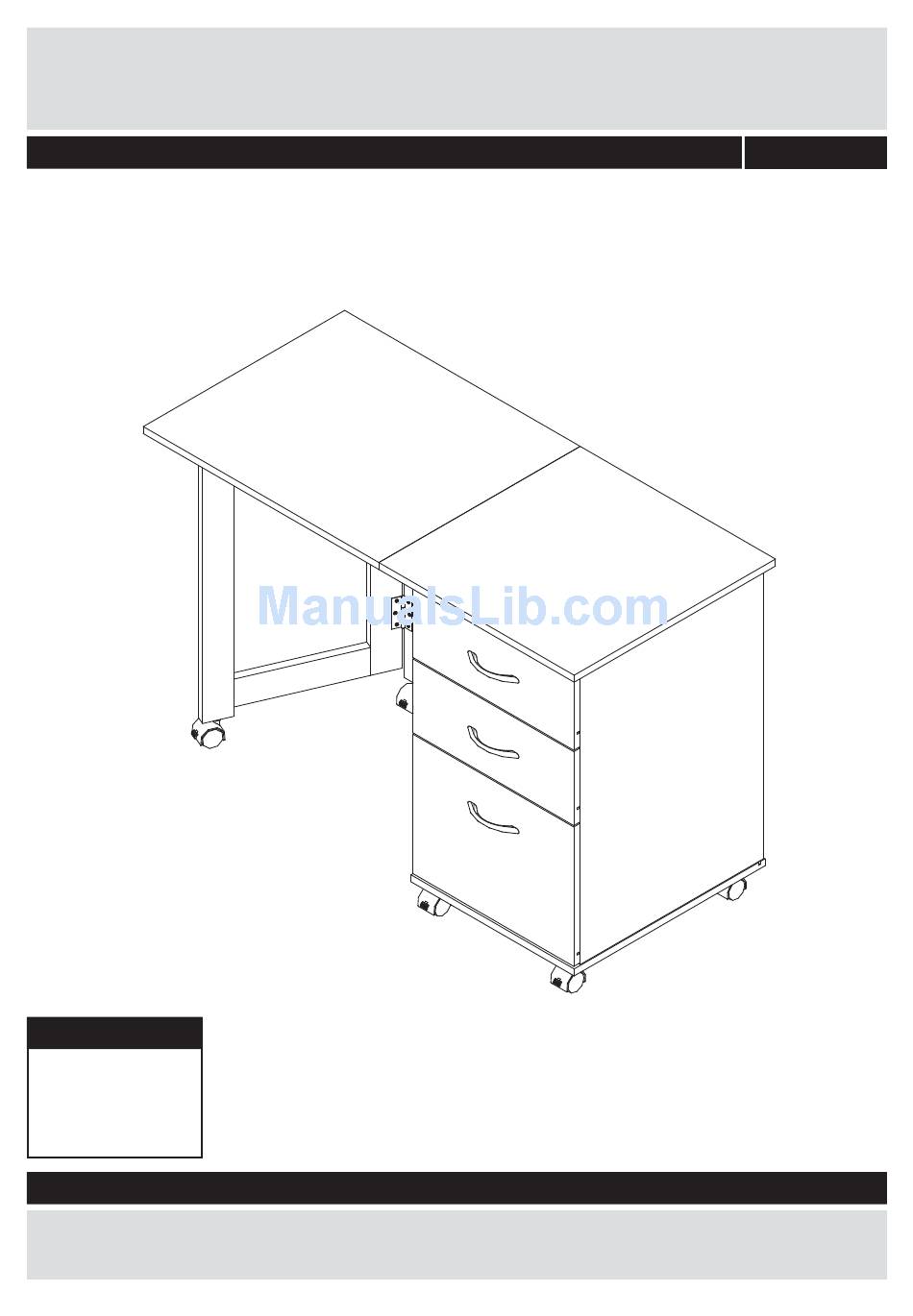

DINO SPACE SAVING DESK OAK
Assembly Instructions
462/6514
- Please keep for future reference
Dimensions
Width - 107cm
Depth - 50cm
Height - 72cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Argos Aftersales
Helpline: 0345 640 0800
Issue 3 - 20/07 / 2016
Advertisement
Table of Contents
Related Manuals for Argos 462/6514
Summary of Contents for Argos 462/6514
- Page 1 DINO SPACE SAVING DESK OAK Assembly Instructions 462/6514 - Please keep for future reference Dimensions Width - 107cm Depth - 50cm Height - 72cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Argos Aftersales Helpline: 0345 640 0800 Issue 3 - 20/07 / 2016...
-
Page 2: Care And Maintenance
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on • We do not components and tools listed on the product, this could cause recommend the pages 2 and 3. damage. use of power drill/drivers for • Remove all fi ttings from the • Assemble the item as close inserting screws, plastic bags and separate them to its fi nal position (in the same as this could damage the unit. ... - Page 3 Components - Panels Please check you have all the panels listed below Separator ( 37.1 X 10 CM ) Drawer back x 2 ( 31.5 X 9 CM ) Table top ( 58.5 X 50 CM ) Filing drawer front ( 39.9 X 30 CM ) Unit top Table left leg ( 64 X 37.8 CM ) ( 48.5 X 50 CM ) Filing drawer left side ( 33.5 X 14 CM ) Filing drawer right side ( 33.5 X 14 CM) Left side Table back leg ( 64 X 44 CM ) ( 63 X 45.5 CM ) Blocks x 2 (13.5 X 2 CM ) Filing drawer back ( 34.6 X 27 CM ) Stoppers x 2 ( 8 X 5.9 CM ) Drawer front x 2 Right side ( 39.9 X 15.9 CM ) ( 63 X 45.5 CM) Unit backboard Drawer left side x 2 (63.6 X 38.1 CM) ( 35 X 9 CM ) Base ( 40.5 X 47.4 CM) Drawer right side x 2 Drawer base x 3 ( 35 X 9 CM ) (32.5 X 34.4 CM )
-
Page 4: Tools Required
Components - Fittings Please check you have all the fi ttings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fi ttings may be supplied than are required. Camlock screw ( 35mm ) x 14 Camlock nut ( Ø14.5 x 11.5 mm ) x 14 wooden dowel ( Ø8 x 30 mm) x 22 Long screw ( Ø9 x 58 mm ) x 4 Runner-pair ( 350 mm ) x 3 Screw ( Ø7.5 x 43.7 mm) x 8 Short screw ( Ø6 x 12 mm ) x 66 Filing rods ( Ø4.5 x 355 mm ) x 2 Handle ( 127mm ) x 3 Bolt ( Ø8.8 x 22 mm) x 6 Castors ( Ø 40 ) x 1 Castors ( Ø 40 ) & spanner x 1 Short screw ( Ø 7.5 x 14 mm) x 16 Back support ( 17 x 10 mm) x 4 Screw ( Ø5 x 19 mm) x 4 Screw ( Ø7.5 x 31 mm) x 4 Hinge ( 42 x 64 mm) x 7 Screw ( Ø7.8 x 25 mm ) x 4 Tools required Crosshead screwdriver Small (medium & large) hammer Ruler/tape Flatblade screwdriver measure (medium) Eye protection (when using a hammer or glue) Ruler - Use this ruler to help correctly identify the screws 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170... - Page 5 Assembly Instructions Step 1 Assemble drawers Position runner on drawer left side and fi x into place using 2 x small screw . Insert wooden dowel into drawer left side Repeat for drawer right Right Drawer Rail side Front View Side View front Insert 2 x camlock screw into drawer front . Attach handle Note: Runners are to drawer front specifi c for left and using 2 x bolt ...
- Page 6 Assembly Instructions Step 2 Assemble fi ling drawer Position runner on fi ling drawer left side and fi x into place using 2 x small screw . Insert 4 x wooden dowel into fi ling drawer left side Repeat for drawer right Right Drawer Rail side Front View Side View Insert 2 x camlock screw into fi ling front drawer front . Attach handle to drawer front Note: Runners ...
-
Page 7: Assemble Frame
Assembly Instructions Step 3 Assemble frame Attach 2 x stoppers to table top using 2 x screw each. Insert 4 x camlock screw into unit top Join table top and unit top together using 3 x hinge , fi x into place using 6 x screw for each hinge. Note: Runners are specifi c for left and Insert 2 x wooden right sides - the dowel into separator wheel should be nearest to the front edge Insert 4 x wooden of the unit. dowel into left side Position 3 x runner on ... - Page 8 Assembly Instructions Step 3 cont. Assemble frame ttach 4 x castor to base as shown, fi x into place using 4 x screw each. Attach 2 x block to left side panel using 2 x screw for each. Attach base to assembled frame using 4 x screw Attach table left leg to table back leg using 2 x hinge , fi x as shown using 6 x screws for each. Attach assembled leg section to assembled frame using 2 x hinge fi x as shown using 6 x screws for each. Insert 2 x castor to assemble leg section as shown - tighten / adjust ...
- Page 9 4 x camlock nut with the top edge of the assembled frame as shown. Attach assembled tops and to the assembled frame. Rotate all camlock nuts clockwise for about 1/4 to 1/2 a turn or until the bolt “connects” with the screw and is secure. Slide the 2 x drawers and 1 x fi ling drawer into the unit as shown. Make sure that the assembled unit is square and the corners are at 90 degree angles. Fix the backboard into position using 4 x back support , and 4 x screw Assembly is complete. Argos Aftersales Helpline: 0345 640 0800...
