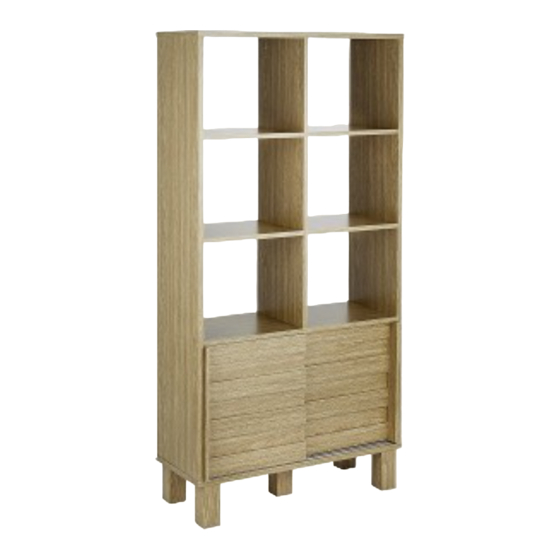

Hygena Genoa Slatted Display Unit
Assembly Instructions
464/2718D
- Please keep for future reference
Dimensions
Width - 75cm
Depth - 31.4cm
Height - 152.2cm
Important
– Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800
Issue 1 - 16/09/15

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Hygena Genoa 464/2718D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Argos Hygena Genoa 464/2718D

  • Page 1: A Into Indicated Holes In

    Hygena Genoa Slatted Display Unit Assembly Instructions 464/2718D - Please keep for future reference Dimensions Width - 75cm Depth - 31.4cm Height - 152.2cm Important – Please read these instructions fully before starting assembly If you need help or have damaged or missing parts, call the Customer Helpline: 03456 400800 Issue 1 - 16/09/15...
  • Page 2: Push Large Wood Dowels B

    Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • Do not stand or put weight on • We do not components and tools listed on the product, this could cause recommend the pages 3 &...
  • Page 3 Components - Panels Please check you have all the panels listed below Bottom panel (750 x 300 mm) Leg x 4 (60 x 130 mm) Top panel (750 x 300mm) Left side panel (1340 x 300mm) Right side panel (1340 x 300mm) Lower divider (409 x 240mm) Rear panel...
  • Page 4 Components - Panels Please check you have all the panels listed below Leg x 4 Top panel Bottom panel (60 x 130 mm) (750 x 300mm) (750 x 300 mm) Right side panel Lower divider Left side panel (1340 x 300mm) (409 x 240mm) (1340 x 300mm) Adjustable shelf x 2...
  • Page 5 Components - Fittings If you have damaged or missing components, call the Customer Helpline: 03456 400800 Please check you have all the fittings listed below Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.
  • Page 6 Assembly Instructions Step 1 Lay Upper divider Cam holes underneath Left fixed shelves the Left fixed shelves. their long edges on a flat soft surface as the Cam holes in the top direction shown. right of Upper divider. Push Small wood dowels into indicated holes in the shelves.
  • Page 7 Assembly Instructions Step 3 Screw 6 Metal dowels into the threaded holes in Upper divider and Lower fixed shelf. Step 4 Insert Small wood dowels into the center holes dowels and wood in Upper divider. dowels enter Firmly push Right fixed shelves on to the Upper divider...
  • Page 8 Assembly Instructions Step 6 Screw 6 Metal dowels into the threaded holes in Left side panel Screw 6 Metal dowels into the threaded holes in Right side panel Step 7 Insert Small wood dowels into the middle holes in dowels and wood Shelves dowels...
  • Page 9 Assembly Instructions Step 8 Screw 6 Metal dowels into the threaded holes in Top Panel shown. Holes in the rear edge for securing on to the wall in the last step. Step 9 Insert Small wood dowels into the middle holes in dowels and wood Side panels and Dividers.
  • Page 10: Table Of Contents

    Assembly Instructions Step 11 Screw Adjustable foot into the bottom hole of Center leg . You can adjust the foot to make sure the unit is stable when the assembly is complete. Step 12 Lay Bottom Panel its long edge on a flat Adjustable foot in soft surface.
  • Page 11 Assembly Instructions Step 14 Unfold Rear Panel Secure the Rear Panel into the rear edges of side panels, lower fixed shelf and bottom panel using 14mm Screws Note - make sure unit is square before securing rear panel in place. Measure on the back across the 2 diagonals to make sure unit is...
  • Page 12: Adjust The Foot To Make K

    Assembly Instructions Step 16 Place adjustable shelves onto the Shelf Pins. Taped edge. Step 17 Make sure the pin in the 2 people needed for this step. top lock in the Door is down, if not, push it down until it locks. Insert the bottom rollers of Door in the inner...
  • Page 13: Step 18

    Assembly Instructions Step 18 Make sure the pin in the top lock in Left side door is down, if not, push it down until it locks. Insert the bottom rollers of Door in the outer groove in the bottom panel, holding the door and push the top edge to line up with the outer groove in lower fixed...
  • Page 14 Assembly Instructions Step 20 Note: This Step is for securing the Unit to a wall and should only be attempted by experienced persons. You will Need the Following: Another person to assist you Electric Drill (& Drill Bits) Screwdriver Fixings Supplied: 2 Webbings 2 Small Wood Screws...
