https://wiki.teltonika-gps.com/view/FMB910_First_Start

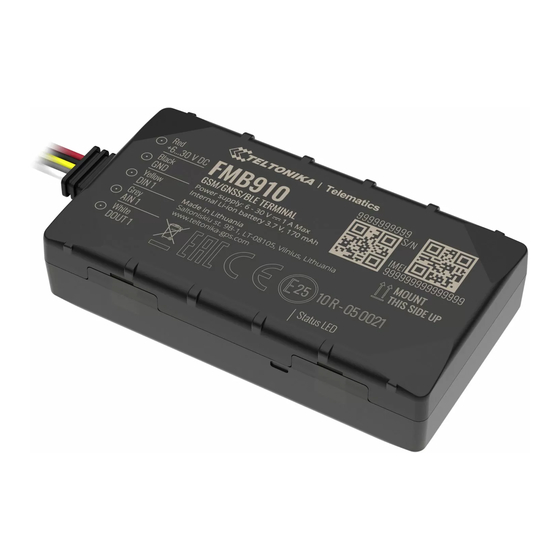

FMB910 First Start
Main Page
>
Basic Trackers
Simple and smart tracker with internal backup battery
Contents
1 How to insert Micro-SIM card, connect power supply cable and internal back-up
battery
2 Pinout
2.1 PC Connection (Windows)
2.2 How to install USB drivers (Windows)
2.3 Configuration (Windows)
2.4 Quick SMS configuration
3 Mounting recommendations
4 Installation photos
5 Safety information
5.1 Precautions
How to insert Micro-SIM card, connect power supply cable
and internal back-up battery
Gently remove FMB910 cover using plastic pry tool from both sides.
1.
2.
Separate PCB from plastic cover and connect power supply cable.
3.
Insert Micro-SIM card as shown with PIN request disabled or read
enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing
forward to slot.
4.
Connect internal back-up battery.
Attach device cover back. (Do not forget to configure the device before reassembling
5.
the device!)
6.
Device ready to use!
Micro-SIM card insertion/removal must be performed when device is powered off –
external voltage and internal battery disconnected. Otherwise Micro-SIM card might be
damaged or device will not detect it.
>
FMB910
> FMB910 First Start
Security info
how to
Advertisement
Table of Contents
Related Manuals for Teltonika FMB910
Summary of Contents for Teltonika FMB910
- Page 1 How to insert Micro-SIM card, connect power supply cable and internal back-up battery Gently remove FMB910 cover using plastic pry tool from both sides. Separate PCB from plastic cover and connect power supply cable. Insert Micro-SIM card as shown with PIN request disabled or read...
- Page 2 Digital output. Open collector output. Max. 3,3 A DC. PC Connection (Windows) Power-up FMB910 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see “LED behaviour description”. Connect device to computer using Micro-USB cable You will need to install USB drivers, see "How to install USB drivers...
- Page 3 Various and etc. FMB910 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality: Load from device –...
- Page 4 If device has made a record it is sent to the server every 120 seconds After successful SMS configuration, FMB910 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters.
- Page 5 Installation photos FMB910 is the device that has internal GNSS and GSM antenna. Device should be mounted with the sticker view to the open sky (metal free). FMB910 area with sticker is shown in figure below: FMB910 can be mounted under the plastic panel behind the front window, with the sticker / engraving direction to a window (sky).
- Page 6 Safety information This message contains information on how to operate FMB910 safely. By following these requirements and recommendations, you will avoid dangerous situations. You must read these instructions carefully and follow them strictly before operating the device! The device uses SELV limited power source. The nominal voltage is +12 V DC. The allowed voltage range is +6..+30V DC.
