Page 1: Table Of Contents

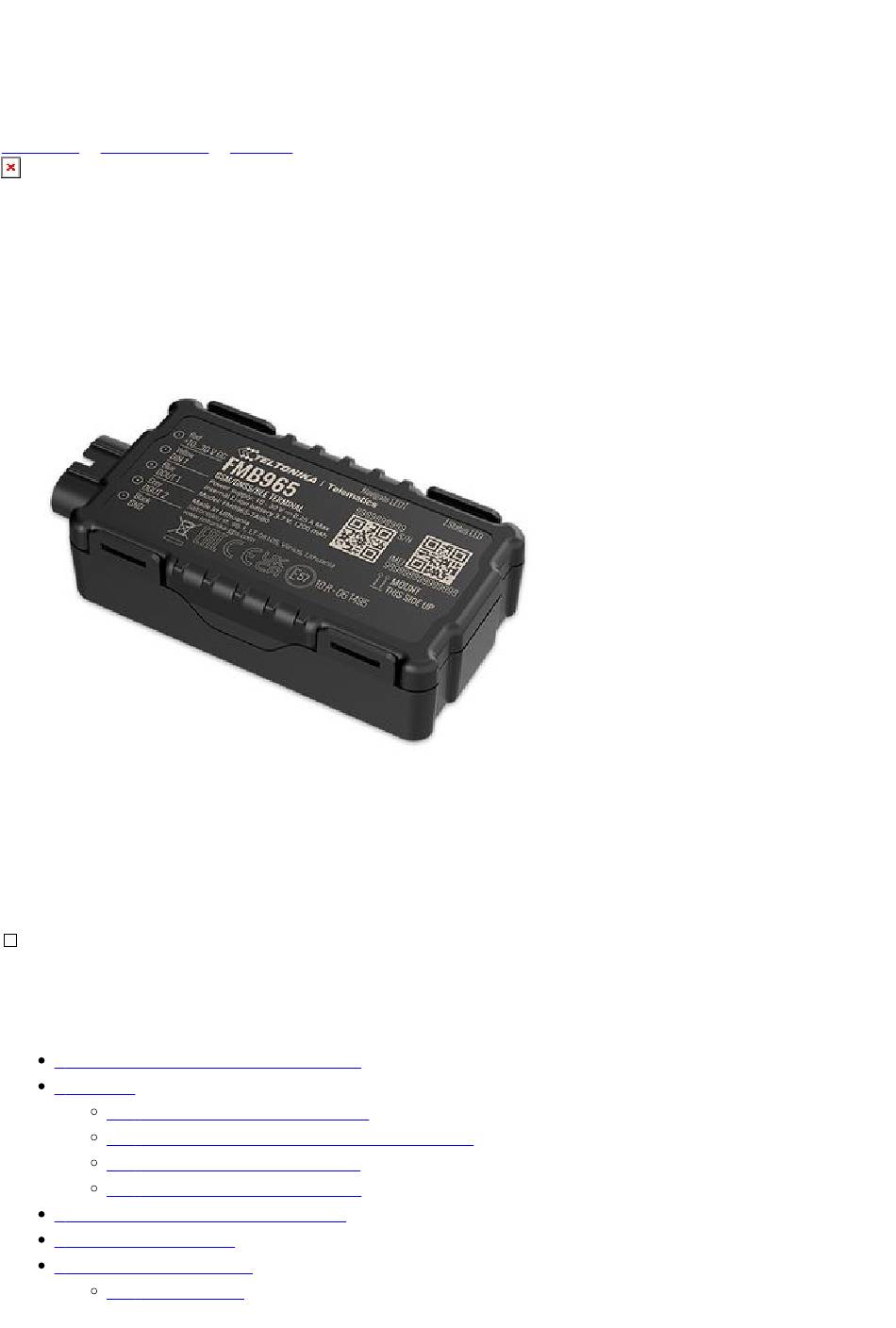

FMB965 First Start Main Page > Basic Trackers > FMB965 > FMB965 First Start Small and smart tracker with Bluetooth and internal backup battery Contents 1 How to insert Micro-SIM card 2 Pinout 2.1 PC Connection (Windows) 2.2 How to install USB drivers (Windows) 2.3 Configuration (Windows) -
Page 2: How To Insert Micro-Sim Card
How to insert Micro-SIM card Gently remove FMB965 cover using plastic pry tool from both sides. gently lift the PCB out of the cover Insert Micro-SIM card as shown with PIN request disabled or read Security info how to enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing outwards to slot. -
Page 3: Pinout

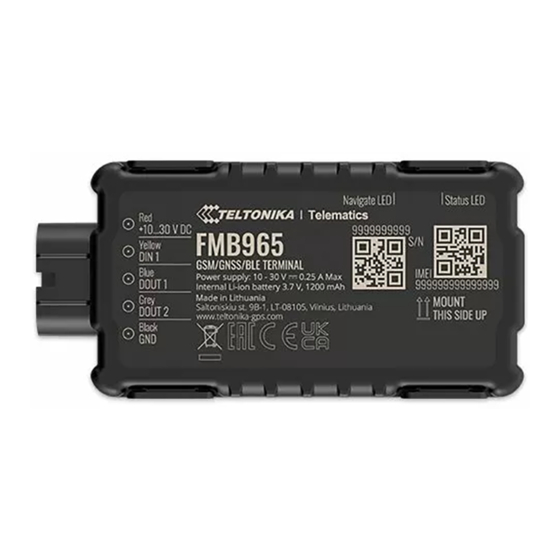

DOUT 2 Digital output. GND (-) Ground. PC Connection (Windows) Power-up FMB965 with DC voltage 10-30 V power supply using power cable. LED’s should start blinking, see “FMB965 LED status”. Connect device to computer using Micro-USB cable or Bluetooth connection:... -
Page 4: Configuration (Windows)
GNSS, GSM, I/O, Maintenance Various and etc. FMB965 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. -
Page 5: Quick Sms Configuration
Data Acquisition – where data acquiring parameters can be configured. More details about FMB965 configuration using Configurator can be found here. Quick SMS configuration Default configuration has optimal parameters present to ensure best performance of track quality and data usage. -
Page 6: Mounting Recommendations
If device has made a record it is sent to the server every 120 seconds After successful SMS configuration, FMB965 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters. -
Page 7: Installation Photos
Installation photos FMB965 is the device that has internal GNSS and GSM antenna. Device should be mounted with the sticker view to the open sky (metal free). FMB965 area with sticker is shown in figure below: FMB965 can be mounted under the plastic panel behind the front window, with the sticker direction... -
Page 8: Safety Information
(sky). It is recommended to place FMB965 behind dashboard as close to the window as possible. A good example of GNSS antenna placement is displayed in a picture below (area colored green). SIM card should be inserted in the module while the connector is plugged off (while module has no power). - Page 9 The device is susceptible to water and humidity. Installation and/or handling during a lightning storm is prohibited. https://teltonika-gps.com/product/fmb965/...
