https://wiki.teltonika-gps.com/view/FMB930_First_Start
FMB930 First Start
Main Page
>
Basic Trackers

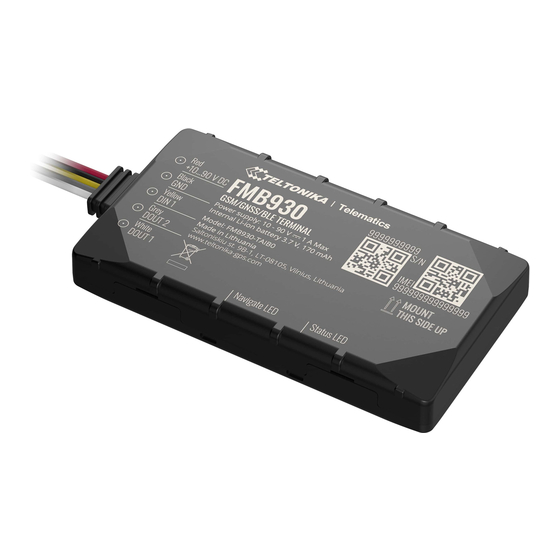

Small and smart tracker with Bluetooth and internal backup battery
Contents
1 How to insert Micro-SIM card
How to insert Micro-SIM card
1.
Gently remove FMB930 cover using plastic pry tool from both sides.
2.
Insert Micro-SIM card as shown with PIN request disabled or read
enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing
forward to slot.
3.
Connect the battery as shown on device. Position the battery in place where it does not
obstruct other components.
4.
Attach device cover back. Device is ready to be connected.
Micro-SIM card insertion/removal must be performed when device is powered off –
external voltage and internal battery disconnected. Otherwise Micro-SIM card might be
damaged or device will not detect it.
>
FMB930
> FMB930 First Start
Security info
how to
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teltonika FMB930
Summary of Contents for Teltonika FMB930
- Page 1 5 Installation photos 6 Safety information 6.1 Precautions How to insert Micro-SIM card Gently remove FMB930 cover using plastic pry tool from both sides. Insert Micro-SIM card as shown with PIN request disabled or read Security info how to enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing forward to slot.
- Page 2 Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. Configuration (Windows) At first FMB930 device will have default factory settings set. These settings should be changed according to the user's needs. Main configuration can be performed via Teltonika Configurator software.
- Page 3 Maintenance and etc. FMB930 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration the changes need to be saved to device using Save to device button. Main buttons offer following functionality: Load from device –...
- Page 4 If device has made a record it is sent to the server every 120 seconds After successful SMS configuration, FMB930 device will synchronize time and update records to configured server. Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters.
- Page 5 GND will be unpredictable, which can lead to unstable FMB930 operation and even its failure. Installation photos FMB930 is the device that has internal GNSS and GSM antenna. Device should be mounted with the sticker view to the open sky (metal free). FMB930 area with...
- Page 6 FMB930 can be mounted under the plastic panel behind the front window, with the sticker / engraving direction to a window (sky). It is recommended to place FMB930 behind dashboard as close to the window as possible or in a place that is not covered with metal and has no moving parts if you are using it on a motorcycle.
