Teltonika FMB965 Quick Manual
Smart waterproof tracker
Hide thumbs
Also See for FMB965:
- Quick manual (18 pages) ,
- First start-up quick start manual (9 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Teltonika FMB965
Summary of Contents for Teltonika FMB965
- Page 1 FMB965 Quick Manual Smart waterproof tracker v1.0...
-
Page 2: Table Of Contents
How to install USB drivers (Windows) ..........7 Configuration (Windows) ..............7 Quick SMS configuration ..............9 Mounting recommendations ............10 LED indications ................. 11 Characteristics .................. 11 Basic characteristics ............... 11 Electrical characteristics ..............13 Safety information ................14 Wiki FMB965 |... -
Page 3: Know Your Device

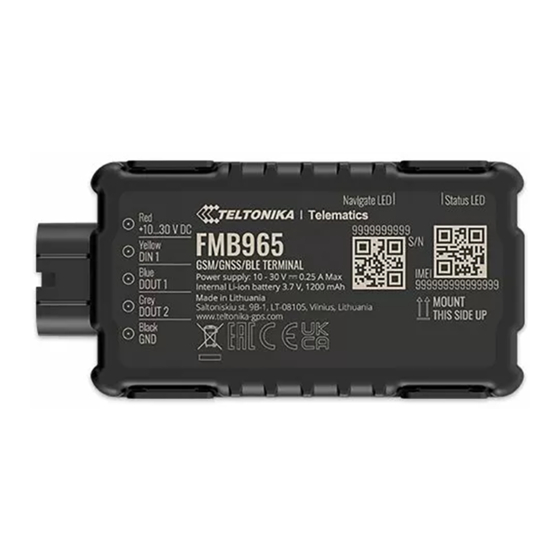

Know your device Figure 1 FMB965 device view Wiki FMB965 |... -
Page 4: Pinout
(10-30)V DC (+) (Red) Power supply (10-30) V DC (+). (Yellow) Digital input, channel 1. DIN 1 DEDICATED FOR IGNITION INPUT DOUT 1 (Blue) Digital output. DOUT 2 (White) Digital output. (Black) Ground. Figure 2 FMB965 pinout Wiki FMB965 |... -
Page 5: Wiring Scheme
Wiring scheme Figure 3 FMB965 Wiring scheme Automotive relay Wiki FMB965 |... -
Page 6: Set Up Your Device
Set up your device How to insert Nano-SIM card 1. Gently remove FMB965 cover using plastic pry tool from both sides. 2. Gently lift the PCB out of the cover. 3. Insert Nano-SIM card as shown with PIN request disabled or read Security info how to enter it later in Configurator. -
Page 7: Pc Connection (Windows)
Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. 1. Power-up FMB965 with DC voltage (10 – 30 V) power supply using power wires. LED’s should start blinking, see “LED Configuration (Windows) indications”. - Page 8 GNSS, GSM, I/O, Maintenance and etc. FMB965 has one user editable profile, which can be loaded and saved to the device. After any modification of configuration, the changes need to be saved to device using Save to device button. Main buttons offer following...
-
Page 9: Quick Sms Configuration
2005 – Port • 2006 – Data sending protocol • After successful SMS configuration, FMB965 device will synchronize (0 – TCP, 1 – UDP) time and update records to configured server. Time intervals and default I/O elements can be changed by using... -
Page 10: Mounting Recommendations
▬ Use 3A, 125V external fuse. potentials on the line GND will be unpredictable, which can lead to unstable FMB965 operation and even its failure. Wiki FMB965 |... -
Page 11: Led Indications
Device is not working or Device is in boot mode Cellular Technology 2G bands Quad-band 850 / 900 / 1800 / 1900 MHz GPRS Multi-Slot Class 12 (up to 240 kbps), Data transfer GPRS Mobile Station Class B Data support SMS (text/data) Wiki FMB965 |... - Page 12 1mA in a Operating temperature -40 °C to +85 °C sleep mode Storage temperature -40 °C to +85 °C Operating humidity 5% to 95% non-condensing Ingress Protection Rating IP67 Battery charge temperature 0 °C to +45 °C Wiki FMB965 |...
-
Page 13: Electrical Characteristics
Digital output (Open drain grade) Drain current (Digital Output OFF) µA Drain current (Digital Output ON, Recommended Operating Conditions) Static Drain-Source resistance (Digital Output mΩ Digital Input kΩ Input resistance (DIN1) Input voltage (Recommended Operating Conditions) Input Voltage threshold Wiki FMB965 |... -
Page 14: Safety Information
All related devices The device is susceptible to water and humidity. must meet the requirements of EN 60950-1 standard. The device FMB965 is not designed as a navigational device for • boats. Wiki... -
Page 15: Certification And Approvals
This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste. Hereby, Teltonika declare under our sole responsibility that the above described product is in conformity with the relevant Community harmonization: European Directive 2014/53/EU (RED). -
Page 16: Warranty
More information can be found at teltonika-gps.com/warranty- Repaired repair/ Replaced with a new product Replaced with an equivalent repaired product fulfilling the same functionality TELTONIKA can also repair products that are out of warranty at an agreed cost. Wiki FMB965 |...
