IMPORTANT:
KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE.

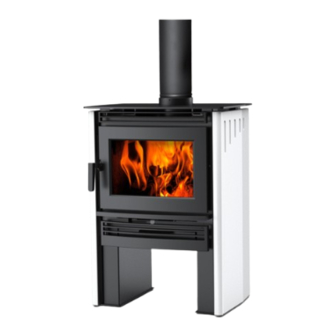

NEO 1.6
INSTALLATION AND OPERATING INSTRUCTIONS
- AUSTRALIA
SERIAL #
SAFETY NOTICE
If this stove is not properly installed, a house fire may result. For your safety,
follow the installation instructions. Contact local building or fire officials
about restrictions and installation inspection requirements in your area.
MODEL: NEO 1.6
270415-20
NEO 1.6 AUSTRALIA
5055.700AS
Advertisement
Table of Contents
Related Manuals for Pacific energy NEO 1.6
Summary of Contents for Pacific energy NEO 1.6
- Page 1 If this stove is not properly installed, a house fire may result. For your safety, follow the installation instructions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. MODEL: NEO 1.6 270415-20 NEO 1.6 AUSTRALIA...
-
Page 2: Table Of Contents
Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death. NEO 1.6 5055.700AS_270415-20... -
Page 3: Safety And Maintenance
10. Instruct all members of your family on the safe operation of the heater. Ensure they have enough knowledge of the entire system if they are expected to operate it. Study the section on chimney fires and the importance of following the steps outlined "In Case of Chimney Fire". NEO 1.6 5055.700AS_270415-20... -
Page 4: Maintenance Checks
- Replace if the baffle has permanent warping greater than this or has cracking or breakage. - Please contact your Dealer if you experience any of the damage listed above. Continuing to operate your stove with broken parts may accelerate damage to other parts and may void your warranty NEO 1.6 5055.700AS_270415-20... -
Page 5: Creosote
fireplace and void your warranty). 4. Do not leave the air inlet wide-open for extended periods of time. 5. Keep a fire extinguisher handy. 6. Prepare a home evacuation plan with a place outside where everyone is to meet. NEO 1.6 5055.700AS_270415-20... -
Page 6: If You Suspect A Chimney Fire
3. To install the panels, engage the tabs on the panel front flange into the slots in the panel mounting bracket. Fig. #2 4. Attach the panel to the rear shield. Secure with two screws. Fig. #3 NEO 1.6 5055.700AS_270415-20... -
Page 7: Note: Installation - Residential
CAUTION: THIS APPLIANCE SHOULD NOT BE OPERATED WITH A CRACKED GLASS. CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN ACCORDANCE WITH THESE INSTRUCTIONS. CAUTION: THE USE OF SOME TYPES OF PRESEVATIVE-TREATED WOOD AS A FUEL CAN BE HAZARDOUS. NEO 1.6 5055.700AS_270415-20... -
Page 8: We Strongly Clearances - Residential
250 mm 595 mm 150 mm Figure 4. Neo 1.6 Single Wall Connector - Residential. Clearances This heater may be installed using a single-wall connector (smoke pipe) or listed double-wall con- nector (see Mobile Home installation). 2. Clearances to combustible surfaces and materials using single-wall connector are shown in Figure #4. -
Page 9: Chimney And Connector - Residential
300 cm of flue top Figure 6. Neo 1.6 Chimney and connector Installation Procedure -Residential Install all components to the chimney manufacturer's installation requirements. (Outside combustion air may be required, consult local building codes. See Combustion Air section on page 11.) 2. -
Page 10: Ously Installed, You May Notice That Firebrick Installation
Next, install the side firebricks, 3 full-size each side as shown below. • Lastly, install 3 full-size firebricks and bricks A & B as shown in the bottom of the firebox. Figure 7. Neo 1.6 Brick layout ITEM DIMENSIONS PART NUMBER... -
Page 11: Combustion Air
* 10 cm diameter air inlet with rodent screen. Hooded vent or * If the crawl space is well ventilated, it is not 90˚ elbow turned necessary to extend air inlet to outside> down Figure 8. Neo 1.6 Masonary chimney install NEO 1.6 5055.700AS_270415-20... -
Page 12: Operation
WARNING: OPEN AIR CONTROL (AND DAMPER WHEN FITTED) BEFORE OPENING FIRING DOOR. Your PACIFIC ENERGY heater is designed for maximum overall efficiency at a moderate firing rate. Overfiring is hazardous and a waste of fuel. Too slow a burn contributes to creosote buildup and lowers combustion efficiency. -
Page 13: Disconnect The Detectors. If Neces-How To Test Your Wood
WARNING: Do not use grates or andirons to elevate the fuel. Burn directly on the fire bricks. Replace broken or missing bricks. Failure to do so may create a hazardous condition. NEO 1.6 5055.700AS_270415-20... -
Page 14: If This Stove Is Not Restarting After Extended Or Overnight Burns
firebox floor. Pull out ashpan and discard ashes into metal container. Do not burn with ash dump door open. Replace ashpan and ensure it is seated properly. Doing so will create a hazardous condition. Always leave about 25 mm of ash in firebox when cleaning. NEO 1.6 5055.700AS_270415-20... -
Page 15: Baffle Removal
It is recommended to inspect the liner and connector monthly and to have the liner cleaned annually or more frequently if required. Cover the opening at the top of the baffle supply tube when cleaning the chimney liner. If debris gets into the tube it can cause the tube to prematurely burn out. NEO 1.6 5055.700AS_270415-20... -
Page 16: Troubleshooting
1. Air control is set too high • Set air control lower 2. Not enough wood • Unsplit wood is preferred for overnight burns 3. Draft too high • Excessive chimney height and/or diameter 4. Poor quality or wet wood • Use good quality, dry wood Wood Won't Burn 1. Combustion air supply blocked • Check outside air supply for obstruction 2. Draft too low • Chimney plugged or restricted, -inspect and clean • Chimney oversized or otherwise unsuitable, -consult Dealer NEO 1.6 5055.700AS_270415-20... -
Page 17: Replacement Parts
Replacement Parts - NEO 1.6 (WHEN ORDERING, INCLUDE PART NUMBER WITH DESCRIPTION) ITEM DESCRIPTION PART NO. ITEM DESCRIPTION PART NO. 12 .... Firebrick Set ..........NE16.BRIC 2 ....Embossed Panel Set ............13 .... Brick Rail, Left/Right ......NE16.RAILSET ....Metallic Black ........NE16.PMBKA 14 .... - Page 18 NEO 1.6 5055.700AS_270415-20...
-
Page 19: Compliance Plate
Compliance Plate NEO 1.6 AS/NZS 4012/4013 (2014) HCMG/15/011 11/MARCH/2015 9.5 kW pivotstove.com.au 17/03/15 5050.416AS Compliance plate is located at the rear of the Neo 1.6 NEO 1.6 5055.700AS_270415-20... - Page 20 © 2015 Copyright Paci c Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. PACIFIC ENERGY FIREPLACE PRODUCTS LTD. Web site: www.paci cenergy.net 2975 Allenby Rd., Duncan, BC V9L 6V8 PRINTED IN CANADA...
