IMPORTANT:
THESE INSTRUCTIONS ARE TO REMAIN
WITH THE HOMEOWNER

SAFETY NOTICE

If this stove is not properly installed, a house
f i r e - p a r t s . c o m
fi re may result. For your safety, follow the
installation instructions.
building or fi re officials about restrictions
and installation inspection requirements in
you area.
TESTED and LISTED
to ULC S628 / UL 1482
Meets the U.S. Environmental Protection
Agency's May 2015 Particulate Emission
Standards
050515-24
©PACIFIC ENERGY FIREPLACE
PRODUCTS LTD. - 2014
INSTALLATION
AND OPERATING
Contact local
INSTRUCTIONS
Model:
NEO 1.6 INSERT
Series: A
NEO 1.6 INSERT-A
SERIAL #
5055.750

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NEO 1.6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pacific energy NEO 1.6

Summary of Contents for Pacific energy NEO 1.6

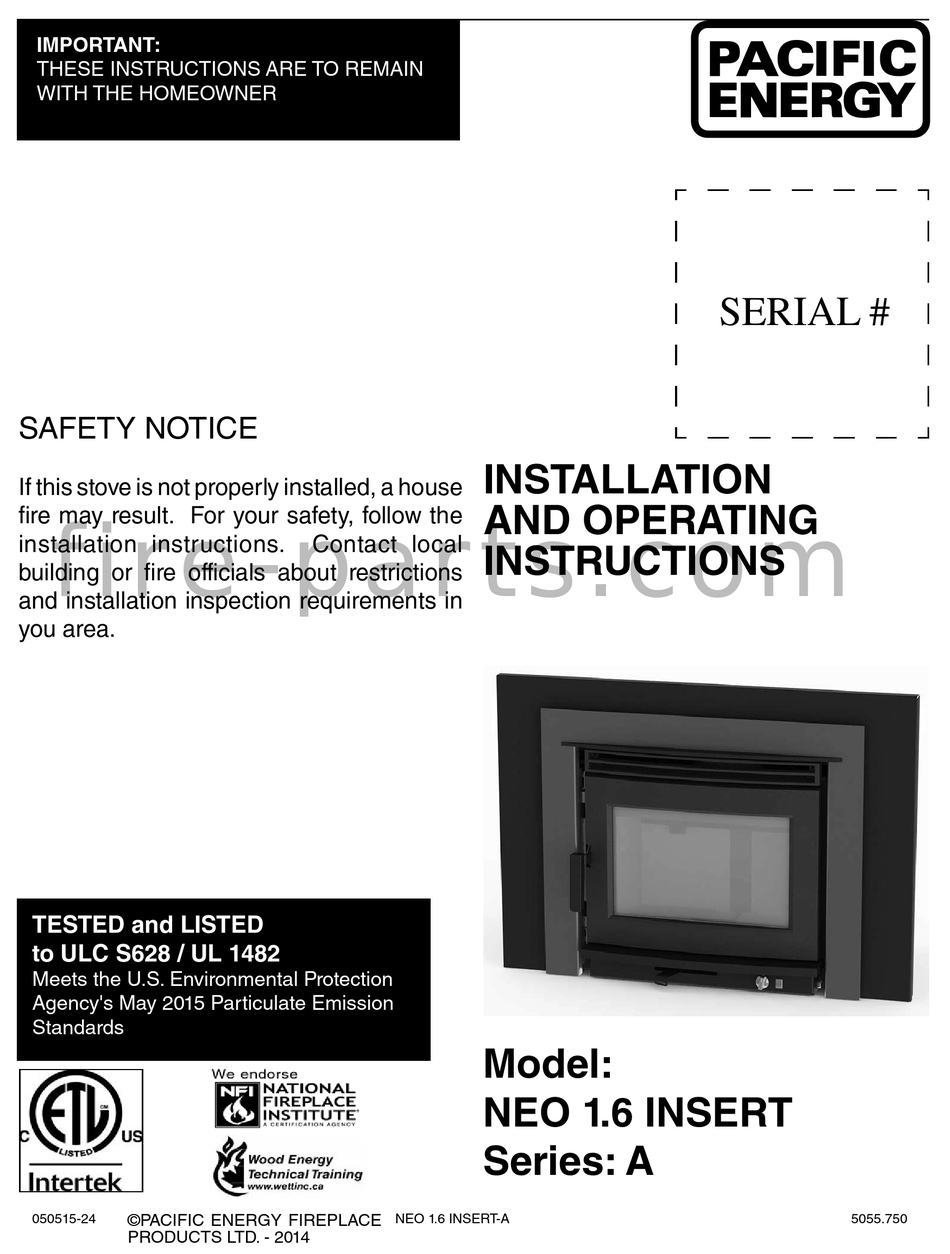

  • Page 1: Safety Notice

    TESTED and LISTED to ULC S628 / UL 1482 Meets the U.S. Environmental Protection Agency's May 2015 Particulate Emission Standards Model: NEO 1.6 INSERT Series: A 050515-24 ©PACIFIC ENERGY FIREPLACE NEO 1.6 INSERT-A 5055.750 PRODUCTS LTD. - 2014...

  • Page 2: Table Of Contents

    PLEASE SAVE THESE INSTRUCTIONS This manual describes the installation and operation of the Pacifi c Energy, NEO 1.6 Insert wood heater. This heater meets the 2015 U.S. Environmental Protection Agency's crib wood emission limits for wood heaters sold after May 15, 2015.

  • Page 3: Safety

    MEASURED FROM TOP OF 16” SURROUND BROW 406mm SIDE FACING AND ADJACENT WALL MEASURED FROM EDGE OF DOOR 13 1/2” j a c ” 343mm 248mm 8” Hearth 203mm 18” 457mm 050515-24 NEO 1.6 INSERT-A ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
  • Page 4 211 Standard for chimneys, fi replaces, vents and Solid-Fuel-Burning appliances in USA. MINIMUM EMBER PROTECTION DIMENSIONS 16 7/8”(429mm) USA 18 7/8”(479mm) CANADA 16”(406mm) USA Non-combustible hearth 18”(457mm) CANADA Non-combustible fl oor covering NEO 1.6 INSERT-A 050515-24 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 5: Chimney Smoke And Creosote Formation

    Chimney fi res are easy to detect; they usually involve one or more of the following: - Flames and sparks shooting out of the top of the chimney - A roaring sound - Vibration of the chimney 050515-24 NEO 1.6 INSERT-A ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 6: Operation

    5) For extended or overnight burns, unsplit logs are preferred. Remember to char the wood completely on ”High” setting Your PACIFIC ENERGY heater is designed for many years of before adjusting air control for overnight burn. trouble free operation. Over fi ring the appliance will shorten the life of the product.

  • Page 7: Restarting After Extended Or Overnight Burns

    With practice, you will become profi cient in operating your heater and will obtain the performance for which it was designed. 050515-24 NEO 1.6 INSERT-A ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 8: Maintenance

    Remove all particles of glass . Be careful as they are very sharp. Install new glass complete with gasket. Replace glass retainers and gasket guides then install new door gasket as per instructions provided with the door gasket kit. NEO 1.6 INSERT-A 050515-24 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 9: Blower Replacement

    Fig. #3 Fig. # 3 7. Reverse all previous steps to reinstall the new blower. Power Cord Position BOLTS 4. Disconnect the two wires leading to the blower motor. 050515-24 NEO 1.6 INSERT-A ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
  • Page 10 Fig. # 5 The power cord for the NEO 1.6 Insert comes factory set to exit the right side of the unit. If you desire, the cord can be switched to exit to the left of the unit. The cord will lose ap- proximately 12”...

  • Page 11: Maintenance Checks

    - Please contact your Dealer if you experience any of the damage listed above. Continuing to operate your stove with broken parts may accelerate damage to other parts and may void your warranty 050515-24 NEO 1.6 INSERT-A ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 12: Installation

    This will allow extra length be removed from the smoke shelf and adjacent damper frame of liner for fl ashing and rain cap. if necessary to accommodate a chimney liner, provided that NEO 1.6 INSERT-A 050515-24 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 13: Direct Flue Connection - (Usa Only)

    Fig. #6 3) Attach a stove connector to the bottom of the liner. Attach the NEO 1.6 Insert removable fl ue collar to the chimney Mantel or connector. Top Facing...

  • Page 14: Surround Assembly And Installation

    - p a r t s . c o m Fig. # 8 SURROUND HOOKS F RO N T S U R RO U N D MOUNTING BRACKET HOLES NEO 1.6 INSERT-A 050515-24 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 15: Blower

    CSA C22.1 Canadian Electrical Code and in the USA with the National Electrical Code, ANSI/NFPA 70 (latest edition). Fig. # 9 By-pass Thermo Blowers Rocker Switch Switch Speed Control G (green) L1 (white) L2 (black) 050515-24 NEO 1.6 INSERT-A ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 16: Troubleshooting

    - Check outside air supply for obstructions is blocked (see Combustion Air section) 2) Draft too low - Chimney plugged or restricted Inspect and clean - Chimney oversized or otherwise unsuitable Consult Dealer NEO 1.6 INSERT-A 050515-24 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 17: Firebrick Installation Instructions

    Firebrick Installation Instructions NEO 1.6 Insert This package contains 14 full-size fi rebricks. With the heater in the upright position, install fi rebricks as follows: - First, install 4 fi rebricks against the rear wall. - Next, install the side fi rebricks, 3 each side.

  • Page 18: Replacement Parts

    20..Brick set ............NE16.INSBRIC Parts can be obtained from your local Pacifi c Energy dealer using these part numbers. f i r e - p a r t s . c o m NEO 1.6 INSERT-A 050515-24 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 19: Warranty Information

    Pacifi c Energy is not responsible for installation, operational or environmental conditions beyond our control. (The company may, at its discretion, discharge all obligations by refunding the wholesale price of the defective part.) For Warranty claims, please contact your nearest Pacifi c Energy dealer. 050515-24 NEO 1.6 INSERT-A ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
  • Page 20 - p a r t s . c o m NEO 1.6 INSERT-A 050515-24 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
  • Page 21 - p a r t s . c o m 050515-24 NEO 1.6 INSERT-A ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.
  • Page 22 - p a r t s . c o m NEO 1.6 INSERT-A 050515-24 ©PACIFIC ENERGY FIREPLACE PRODUCTS LTD.

  • Page 23: Label

    MODEL / MODÈLE: NEO 1.6 INSERT SERIES / SÉRIE: A INSTALL AND USE ONLY IN ACCORDANCE WITH PACIFIC ENERGY’S INSTALLATION AND OPERATING INSTRUCTIONS. CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT CODES, RESTRICTIONS AND INSTALLATION INSPECTION IN YOUR AREA. INSTALL AND USE ONLY IN MASONRY OR FACTORY BUILT FIREPLACE. DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
  • Page 24 - p a r t s . c o m PACIFIC ENERGY FIREPLACE PRODUCTS LTD. PACIFIC ENERGY FIREPLACE PRODUCTS LTD. Phone: 1-250-748-1184 Phone: 1-250-748-1184 Web site: http://www.pacifi cenergy.net Web site: http://www.pacifi cenergy.net 2975 Allenby Rd., Duncan, B.C. V9L 6V8 2975 Allenby Rd., Duncan, B.C.
