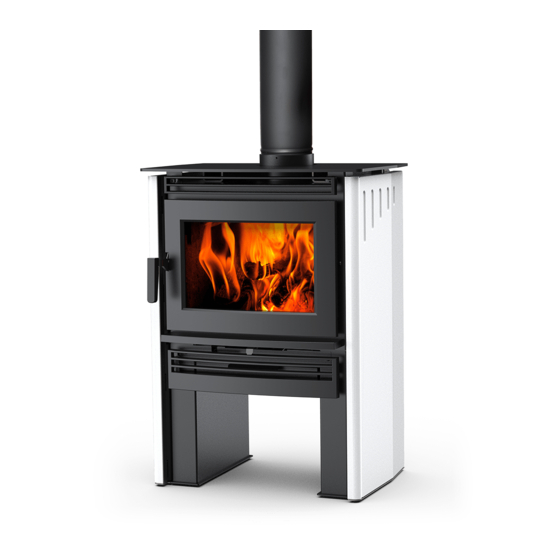

Pacific energy NEO 1.6 Manual
Hide thumbs
Also See for NEO 1.6:
- Installation and operating instructions manual (28 pages) ,
- Installation and operating instruction (24 pages) ,
- Nstallation and operating instructions (24 pages)
Subscribe to Our Youtube Channel
Related Manuals for Pacific energy NEO 1.6
Summary of Contents for Pacific energy NEO 1.6
- Page 1 NEO 1.6 & NEO 2.5 ZERO CLEARANCE MANUAL Distributed by Pivot Stove & Heating Co 1300 474 686 pivotstove.com.au Distributed by Pivot Stove & Heating 1300 474 686 pivotstove.com.au...
- Page 2 No modifications to the box or the installation specifications are authorized What is a Zero Clearance Box? The Pacific Energy Zero Box has been designed to allow the Neo 1.6 & the NEO 2.5 Inbuilt wood heaters to be installed into a framed out wall cavity...
- Page 3 Assembling the outer box Step 1 Place the base plate on the floor The 3 up-turn sides are to be facing up the side with the 5 feet to be facing down the side with the 3 feet to be facing up The front of the Base Plate has no upturn edge 3 Feet facing up Distributed by Pivot Stove &...
- Page 4 Stage 2 Fit the Right and side and the Left side to the base plate with fixing screws The Sides are to be located on the inside of the base plate - Note – air holes are to be on the bottom Front Angle return to be facing outwards Rear Angle returns to be facing inwards Stage 3...
- Page 5 Assembling the inner box Stage 4 Assemble the 2 x inner sides to the rear side with fixing screws the air holes are to be facing the bottom o the bottom lip is to be facing out the front return is to be facing out Distributed by Pivot Stove &...
- Page 6 Stage 5 Assemble the top panel to the Sides and Rear with fixing screws Stage 6 Fix the solid spigot to the top of the top of the inner box with fixing screws Distributed by Pivot Stove & Heating 1300 474 686 pivotstove.com.au...
- Page 7 NOTE: When installing the Neo 1.6 The Spigot goes towards the front of the Zero Clearance Box NOTE: When installing the Neo 2.5 The Spigot goes towards the back of the Zero Clearance Box Distributed by Pivot Stove & Heating 1300 474 686 pivotstove.com.au...
- Page 8 Completing the Zero Clearance Box Stage 7 Slide the inner box into the outer box Stage 8 Assemble the top to the outer box with fixing screws Distributed by Pivot Stove & Heating 1300 474 686 pivotstove.com.au...
- Page 9 Stage 9 Fix the crimped spigot on top of the top of the Zero Clearance Box with fixing screws NOTE We recommend you paint the bottom lip of the Zero Clearance Box with Stove Bright Metallic Black when raising the Neo Wood Heaters units off the floor so you don’t see the metal Zero Clearance Kit Distributed by Pivot Stove &...
- Page 10 Framing Guide Framing Guide Cavity Height 1,020 mm Cavity Width 1,080 mm Cavity Depth 620 mm If raising of the floor, recommended height off the floor 300mm Height Depth Width Floor Protection 18mm thick fireproof Board - Needs to extend under the Zero Clearance Box - Hearth to extend 500mm in front of the heater Recommended size of Bellis Board 1,075mm deep x 900mm wide...
