IMPORTANT:
KEEP THESE INSTRUCTIONS
FOR FUTURE REFERENCE.
INSTALLATION AND OPERATING INSTRUCTIONS
If this stove is not properly installed, a house fire may result. For your safety,
follow the installation instructions. Contact local building or fire officials
about restrictions and installation inspection requirements in your area.
120515-20

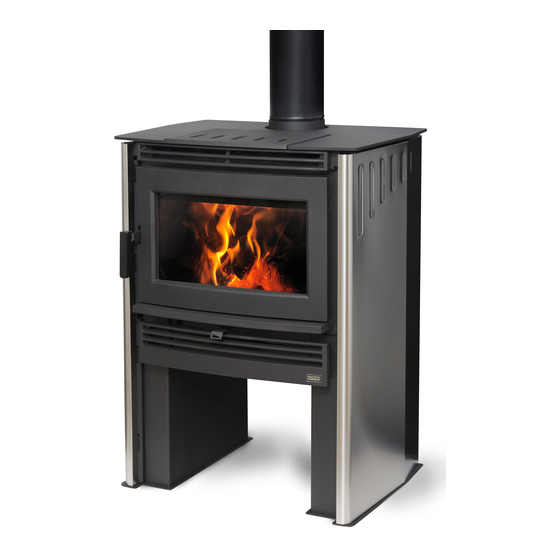

NEO 2.5
- AUSTRALIA
SAFETY NOTICE
MODEL: NEO 2.5
NEO 2.5 AUSTRALIA
SERIAL #
5055.900AS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pacific energy NEO 2.5
Summary of Contents for Pacific energy NEO 2.5
-
Page 1: Installation And Operating Instructions
If this stove is not properly installed, a house fire may result. For your safety, follow the installation instructions. Contact local building or fire officials about restrictions and installation inspection requirements in your area. MODEL: NEO 2.5 120515-20 NEO 2.5 AUSTRALIA... -
Page 2: Table Of Contents
Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death. NEO 2.5 5055.900AS_120515-20... -
Page 3: Safety And Maintenance
WARNING: Only use materials supplied by 4. DOOR GASKETS - The gasket used by Pacific Energy (22 mm medium density manufacturer when doing maintenence fiberglass rope) requires only light pressure to seal. This will prolong seal life. It is or replacements. -
Page 4: Maintenance Checks
- Replace if the baffle has permanent warping greater than this or has cracking or breakage. - Please contact your Dealer if you experience any of the damage listed above. Continuing to operate your stove with broken parts may accelerate damage to other parts and may void your warranty NEO 2.5 5055.900AS_120515-20... -
Page 5: Creosote
4. Do not leave the air inlet wide-open for extended periods of time. 5. Keep a fire extinguisher handy. 6. Prepare a home evacuation plan with a place outside where everyone is to meet. NEO 2.5 5055.900AS_120515-20... -
Page 6: If You Suspect A Chimney Fire
Appliance Dimensions 622mm 737mm 156mm 1.04m 1.02m Figure 1. NEO 2.5 Dimensions Assembly Crate Removal Side Panel Removal/Installation Carefully remove wood top and supports. To remove the panels, first remove the screws that secure the panel to the rear shield. Fig. #3 2. -
Page 7: Note: Installation - Residential
CAUTION: THIS APPLIANCE SHOULD NOT BE OPERATED WITH A CRACKED GLASS. CAUTION: THIS APPLIANCE SHOULD BE MAINTAINED AND OPERATED AT ALL TIMES IN ACCORDANCE WITH THESE INSTRUCTIONS. CAUTION: THE USE OF SOME TYPES OF PRESEVATIVE-TREATED WOOD AS A FUEL CAN BE HAZARDOUS. NEO 2.5 5055.900AS_120515-20... -
Page 8: We Strongly Clearances - Residential
370 mm 300 mm 150 mm 670 mm 80 mm Figure 4. Neo 2.5 Clearances 300mm with Dacromesh only. 100mm with Dacromesh and a 130° x 900 mm stainless steel flue shield. Floor Protector 870 mm The stove may be installed on a combusti-... -
Page 9: Chimney And Connector - Residential
4. To start installing smoke pipe (chimney connector), slip crimped edge of the pipe inside the stove collar. Use holes provided in collar to secure pipe with three screws. 5. Install the remaining lengths of pipe, one on top of the other, to the finished height of the chimney connector and secure to each other. NEO 2.5 5055.900AS_120515-20... -
Page 10: Ously Installed, You May Notice That Firebrick Installation
• Lastly, place 5 full-size firebricks and 1 of each bricks B, C and 2 of D on the bottom of the heater in the pattern shown below. Figure 7. Neo 2.5 Brick layout ITEM DIMENSIONS PART NUMBER 230 mm x 115 mm x 32 mm 5096.99... -
Page 11: Combustion Air
* 10 cm diameter air inlet with rodent screen. Hooded vent or * If the crawl space is well ventilated, it is not 90˚ elbow turned necessary to extend air inlet to outside> down Figure 8. Neo 1.6 Masonary chimney install NEO 2.5 5055.900AS_120515-20... -
Page 12: This May Be Due To Curing Of Stove Operation
WARNING: OPEN AIR CONTROL (AND DAMPER WHEN FITTED) BEFORE OPENING FIRING DOOR. Your PACIFIC ENERGY heater is designed for maximum overall efficiency at a moderate firing rate. Overfiring is hazardous and a waste of fuel. Too slow a burn contributes to creosote buildup and lowers combustion efficiency. -
Page 13: Disconnect The Detectors. If Neces-How To Test Your Wood
WARNING: Do not use grates or andirons to elevate the fuel. Burn directly on the fire bricks. Replace broken or missing bricks. Failure to do so may create a hazardous condition. NEO 2.5 5055.900AS_120515-20... -
Page 14: Restarting After Extended Or Overnight Burns
Pull out ashpan and discard ashes into metal container. Do not burn with ash dump door open. Replace ashpan and ensure it is seated properly. Doing so will create a hazardous condition. Always leave about 25 mm of ash in firebox when cleaning. NEO 2.5 5055.900AS_120515-20... -
Page 15: Baffle Removal
Tilt baffle sideways to drop down and remove from firebox. Inspect gasket between baffle and supply tube. If necessary, replace with gasket SSER.1395 available from your Pacific Energy dealer. Re-install baffle assembly in reverse order. The two side pieces of insulation must be tight against the siderails. -
Page 16: Troubleshooting
• Use good quality, dry wood Wood Won't Burn 1. Combustion air supply blocked • Check outside air supply for obstruction 2. Draft too low • Chimney plugged or restricted, -inspect and clean • Chimney oversized or otherwise unsuitable, -consult Dealer NEO 2.5 5055.900AS_120515-20... -
Page 17: Replacement Parts
8 ..Door Casting, Black ......NE25.5037900 27 ..Pipe Shield(optional) ........NE25.78725 9 ..Door Handle Assembly ........NE16.7817 All parts may be ordered from your nearest Pacific Energy 10 ..Side Shield Bracket, LHS ......NE25.78485 dealer. Use www.pacificenergy.net for the location of the 10b ...Side Shield Bracket, RHS ......NE25.7848 dealer nearest you. - Page 18 NEO 2.5 5055.900AS_120515-20...
-
Page 19: Compliance Plate
Compliance Plate NEO 2.5 AS/NZS 4012/4013 (2014) HCMG/15/013 13/MARCH/2015 9.9 kW pivotstove.com.au 17/03/15 5050.425AS Compliance plate is located at the rear of the Neo 2.5 NEO 2.5 5055.900AS_120515-20... - Page 20 © 2015 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. PACIFIC ENERGY FIREPLACE PRODUCTS LTD. Web site: www.pacificenergy.net 2975 Allenby Rd., Duncan, BC V9L 6V8...
