IMPORTANT:
THESE INSTRUCTIONS ARE TO
REMAIN WITH THE HOMEOWNER
INSTALLATION
& OPERATING
INSTRUCTIONS
SAFETY NOTICE
If this stove is not properly installed, a
house fire may result. For your safety,
follow the installation instructions.
Contact local building or fire officials
about restrictions and installation,
inspection requirements in your area.
5055.600EU-A

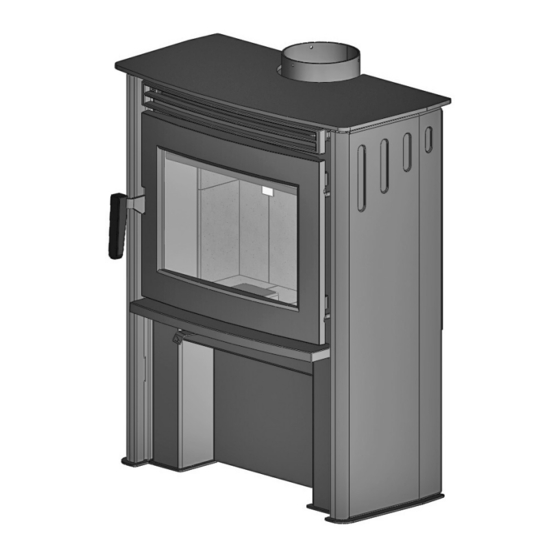

MODELS:
NEO 1.2 EU-En
SERIAL #
NEO 1.2
NEO 1.2 Short
310816-28
Advertisement
Table of Contents
Related Manuals for Pacific energy neo 1.2
Summary of Contents for Pacific energy neo 1.2
- Page 1 If this stove is not properly installed, a house fire may result. For your safety, MODELS: follow the installation instructions. NEO 1.2 Contact local building or fire officials about restrictions and installation, NEO 1.2 Short inspection requirements in your area. NEO 1.2 EU-En 5055.600EU-A 310816-28...
-
Page 2: Table Of Contents
Rating Label ..............25 PLEASE SAVE THESE INSTRUCTIONS This manual describes the installation and operation of the Pacific Energy, NEO 1.2/NEO 1.2 Short Freestanding wood heater. SAFETY NOTICE: If this stove is not properly installed, a house fire may result. For your safety, follow the instal- lation instructions. -
Page 3: Approvals
Your local authority is responsible for implementing the Clean Air Act 1993 including designation and supervision of smoke control areas and you can contact them for details of Clean Air Act requirements. The NEO 1.2 and NEO 1.2 Short have been recommended for use in Smoke Control Areas when burning seasoned cord wood. -
Page 4: Safety
Operator Instructions Safety Chimney Fires The result of excessive creosote buildup is a chimney fire. Chimney fires are dangerous. Chimney inside temperatures can exceed 1100°C. This causes much higher than normal temperatures in the chimney and on its exterior surfaces. Thus ignition of nearby or touching combustible material is more likely during a chimney fire. -
Page 5: Warning Note
Operator Instructions WARNING NOTE Properly installed, operated and maintained this stove will not emit fumes into the dwelling. Occasional fumes from de ashing and re fuelling may occur. However, persistent fume emission is potentially dangerous and must not be tolerated. If fume emission does persist, then the following immediate action should be taken: Open doors and windows to ventilate the room and then leave the premises. -
Page 6: Operation
Operator Instructions Operation CAUTION: Never use petrol, petrol type lantern fuel, kerosene, charcoal lighter fluid or similar liquids to start or "freshen up" a fire in this stove. Keep all such liquids well away from the stove while it is in use. CAUTION: Hot while in operation. -
Page 7: How To Test Your Wood
Operator Instructions How to Test Your Wood Add a large piece of wood to the stove when it has a large, hot bed of coals. It is dry if it is burning on more than one side within one minute. It is damp if it turns black and lights within three minutes. If it sizzles, hisses and blackens with- out igniting in five minutes it is soaked and should not be burnt Lighting a Fire WARNING: Never use chemicals or any other volatile liquid to start a fire. -
Page 8: Restarting From Hot Embers
Operator Instructions WARNING: Do not use grates or andirons to elevate the fuel. Burn directly on the fire bricks. Replace broken or missing bricks. Failure to do so may create a hazardous condition. Restarting from Hot Embers If there is insufficient burning material in the fire bed to light a new fuel charge, excessive smoke emission can occur. Refueling must be carried out onto a sufficient quantity of embers and ash that the new charge will ignite in a reasonable period. -
Page 9: Maintenance Checks
Operator Instructions Maintenance Checks Check the following parts for damage such as cracks, excessive corrosion, burned out sections and excessive warping: (See website for descriptions and more detail) Some warping of the baffle is normal (up to 6mm). Replace if the baffle has permanent warping greater than this or has signs of cracking or breakage. - Page 10 WARNING: ONLY USE MATERIALS AND COMPONENTS SUPPLIED BY MANUFACTURER WHEN DOING MAINTENANCE OR REPLACEMENTS. Spare Parts: For more information on obtaining spare parts, please contact your Pacific Energy stove dealer. For a dealer directory use www.pacificenergy.net. 4. DOOR GASKETS - The gasket used on this unit (3/4" high density fiberglass rope) requires only light pressure to seal.
-
Page 11: Baffle Removal
Operator Instructions Baffle Removal Chimney connector pipe should be disconnected from stove to clean and inspect. Only if this is not possible should you remove baffle assembly. CAUTION: Ceramic blanket insulation is located on top of baffle. Do not use a vacuum in this area. -
Page 12: Warranty Information
3 Year Comprehensive • Pacific Energy will replace or repair any part found to be defective (parts and labor) for three years from the date of purchase. This coverage includes electrical components (blowers, speed controls and thermal switches). Conditions •... -
Page 13: Installation Instructions
Installation Instructions Stove Dimensions NEO12 Short Dimensions 380mm 690mm 615mm 650mm Figure 1: NE12.24 Dimensions. NEO12 Dimensions 688mm 420mm 89mm 807mm 841mm Figure 2: NE12.32 Dimensions. 310816-24_ NEO 1.2 5055.600EU-A... -
Page 14: Assembly
4. Slide the hold down brackets away from the stove. Lag bolts (2 on each side) Figure 3: NEO 1.2 pallet removal. Side Panel Installation 1. Carefully remove the panels from the box. 2. Loosen the panel bracket screws a little so that the bracket can move while fitting the panel into place (Figure 6). - Page 15 Installation Instructions Panel Bracket Figure 4: Panel bracket.ai Figure 5: Slide panel in to place. Align panel with unit base Figure 7: Base of panel and alignment. Figure 6: Panel adjustments. 310816-24_ NEO 1.2 5055.600EU-A...
-
Page 16: Installation
- The services of a competent or certified installer, are strongly recommended. BOTH CHIMNEY SYSTEM AND CONNECTOR MUST BE APPROVED TO LOCAL AND NATIONAL STANDARDS. Clearances to combustibles. 300mm 300mm 300mm 300mm 300mm Figure 8: NEO12 EU clearances. 310816-24_ NEO 1.2 5055.600EU-A... -
Page 17: Important Warning
12mm thick, in accordance with Building Regulations Approved Document J, to a distance of 30 cm in front of the stove and 15 cm to each side measuring from the door of the combustion chamber. 150mm 300mm Non-combustible floor protector Figure 9: NEO 1.2 Floor protector EU 310816-24_ NEO 1.2 5055.600EU-A... -
Page 18: Chimney And Connector
Approved Document J (see also combustion air supply). Adequate provision e.g. easily accessible soot door or doors must be provided for sweeping the chimney and connecting fluepipe where it is not intended for the chimney to be swept through the appliance. 310816-24_ NEO 1.2 5055.600EU-A... -
Page 19: Combustion Air Supply
(Optional for residential installation.) Outside air supply for the NEO 1.2 model must be connected underneath the stove. The outside air supply for the NEO 1.2 Short model must be connected from behind the stove. Attach the intake starter to the bottom of the stove with the screws provided. -
Page 20: Commissioning And Handover
Manual: To manually operate the blower, set the rocker switch to "Man" and set the speed control to desired setting. This will bypass the sensing device and allow full control of the blower. Switching from "Auto" to "Man" or selecting speed may be done anytime. 310816-24_ NEO 1.2 5055.600EU-A... - Page 21 *3” (75mm) diameter air inlet with rodent screen Hooded vent or *If the crawl space is well ventilated it 90 elbow turned down is not necessary to extend air inlet to outside Figure 10: NEO 1.2 EU - Venting to a masonry chimney. 310816-24_ NEO 1.2 5055.600EU-A...
- Page 22 90 elbow turned down 3" diameter air inlet with rodent screen. If the crawl space is well ventilated it is not necessary to extend air inlet to outside Figure 11: NEO 1.2 EU - Common venting configuration 310816-24_ NEO 1.2 5055.600EU-A...
-
Page 23: Neo 1.2 Firebrick Installation Instructions
Installation Instructions NEO 1.2 Firebrick Installation Instructions This package contains 6 full-size firebricks as well as 6 various cut-size bricks. With the heater in the upright position, install firebricks as follows: • Place 4 full-size firebricks "C" at the back of the heater first. -
Page 24: Replacement Parts - Neo 1.2
9.... Optional Blower ......WODC.BLOW 10 ..Firebrick Set ........NE12.BRIC 11 ..Door Gasket ......WODC.NEODGKIT All parts may be ordered from your nearest Pacific Energy dealer. 12 ..Baffle Assembly ....... NE12.787520 Contact Pacific Energy for the location of the dealer nearest you. -
Page 25: Rating Label
Rating Label 170616-24_NEO 1.2 EU-En 5055.600EU-A... - Page 26 Operator Instructions 310816-28_NEO 1.2 EU-En 5055.600EU-A...
- Page 27 Operator Instructions 310816-28_NEO 1.2 EU-En 5055.600EU-A...
- Page 28 © 2016 Copyright Pacific Energy Fireplace Products LTD Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. PACIFIC ENERGY FIREPLACE PRODUCTS LTD. 2975 Allenby Rd., Duncan, B.C. V9L 6V8 For technical support, please contact your retailer.
