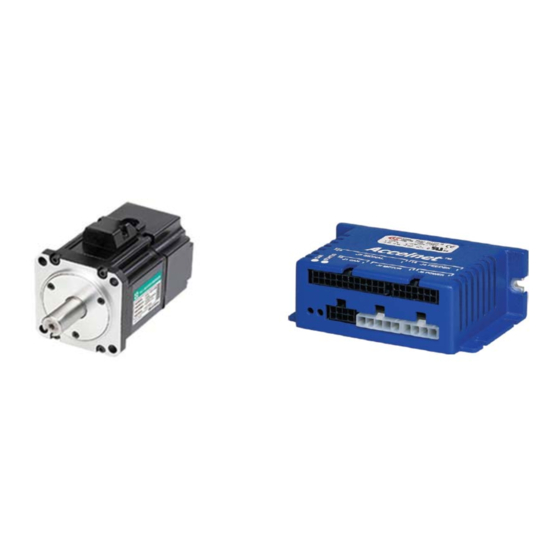

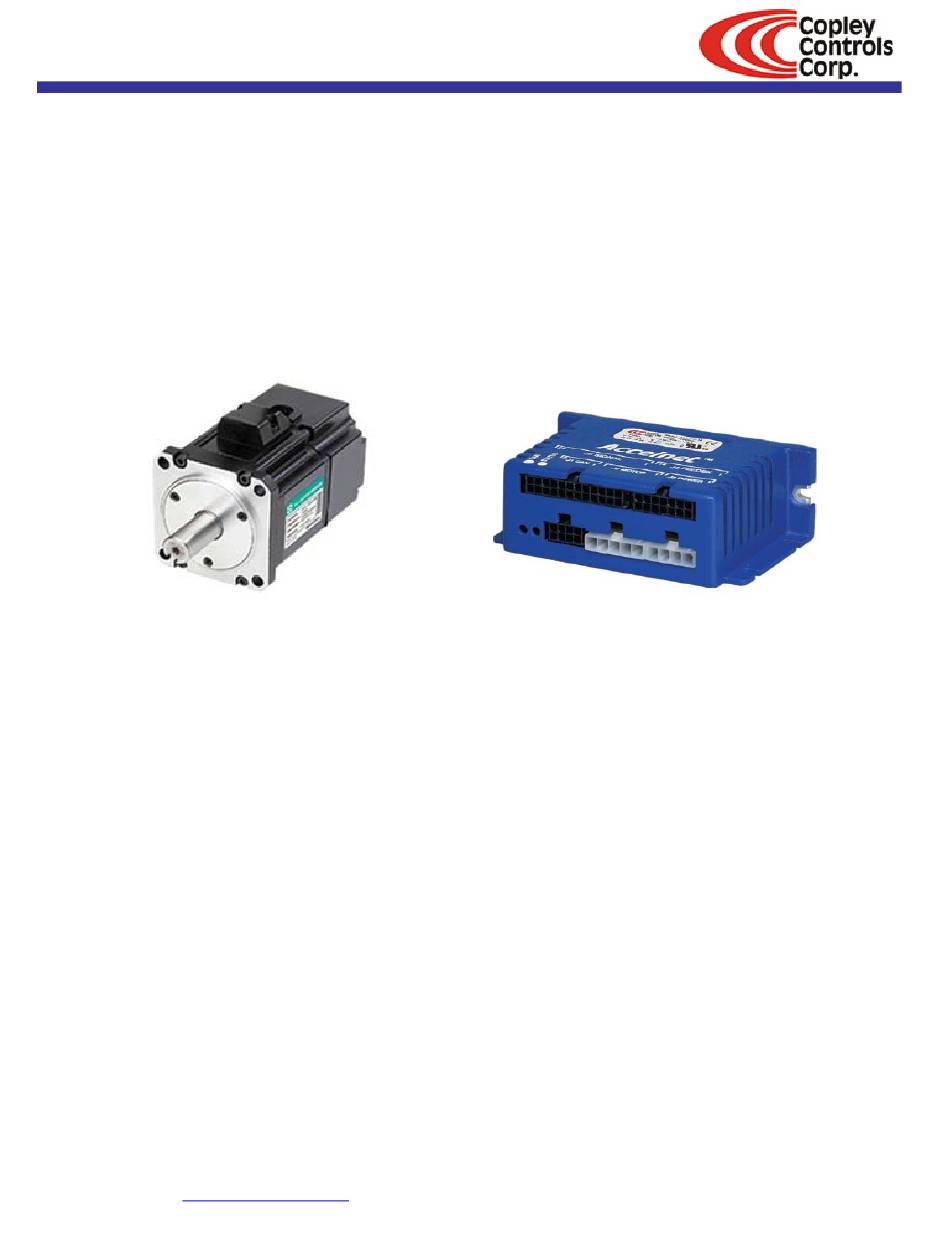

APM-SA Series with Copley AccelNet Micro Panel
(M)
metronix
With Copley ACJ-090-09 AccelNet Micro Panel Amplifier
Features
•
Rated Power 30W, 50W, and 100W with 24Vdc to 75Vdc operation.
•
Torque from 95mNm to 318mNm Continuous
•
Rated speed 3000rpm
•
Commutating Encoder 2048 line count (8192 counts/rev) standard
•
Optional 24V Brake
www.copleycontrols.com
APM-SA Series Rotary Brushless motor
Filename: AccelnetMicroPanel_to_Metronix-APM-SA.doc
Advertisement
Table of Contents
Related Manuals for Metronix APM-SA Series
Summary of Contents for Metronix APM-SA Series
- Page 1 APM-SA Series with Copley AccelNet Micro Panel APM-SA Series Rotary Brushless motor metronix With Copley ACJ-090-09 AccelNet Micro Panel Amplifier Features • Rated Power 30W, 50W, and 100W with 24Vdc to 75Vdc operation. • Torque from 95mNm to 318mNm Continuous •...
- Page 2 APM-SA Series with Copley AccelNet Micro Panel Motor Data Model Power Rated Maximum Watts Kgcm^2 Nm/Arms V/krpm Speed rpm SAR3A 30 0.0167 0.1009 10.6 11.7 0.095 3000 5000 SAR5A 50 0.0245 0.1448 15.2 0.159 3000 5000 SA01A 0.0435 0.2527 26.4...
- Page 3 APM-SA Series with Copley AccelNet Micro Panel www.copleycontrols.com Filename: AccelnetMicroPanel_to_Metronix-APM-SA.doc...
- Page 4 APM-SA Series with Copley AccelNet Micro Panel ACJ-090-09 Accelnet Micro Panel Wiring. Frame Gnd Frame Gnd Shield Signal Gnd RS232 Tx Hall U Hall U Brown RS232 Rx Hall V Hall V Blue Signal Gnd Hall W Hall W Orange...
