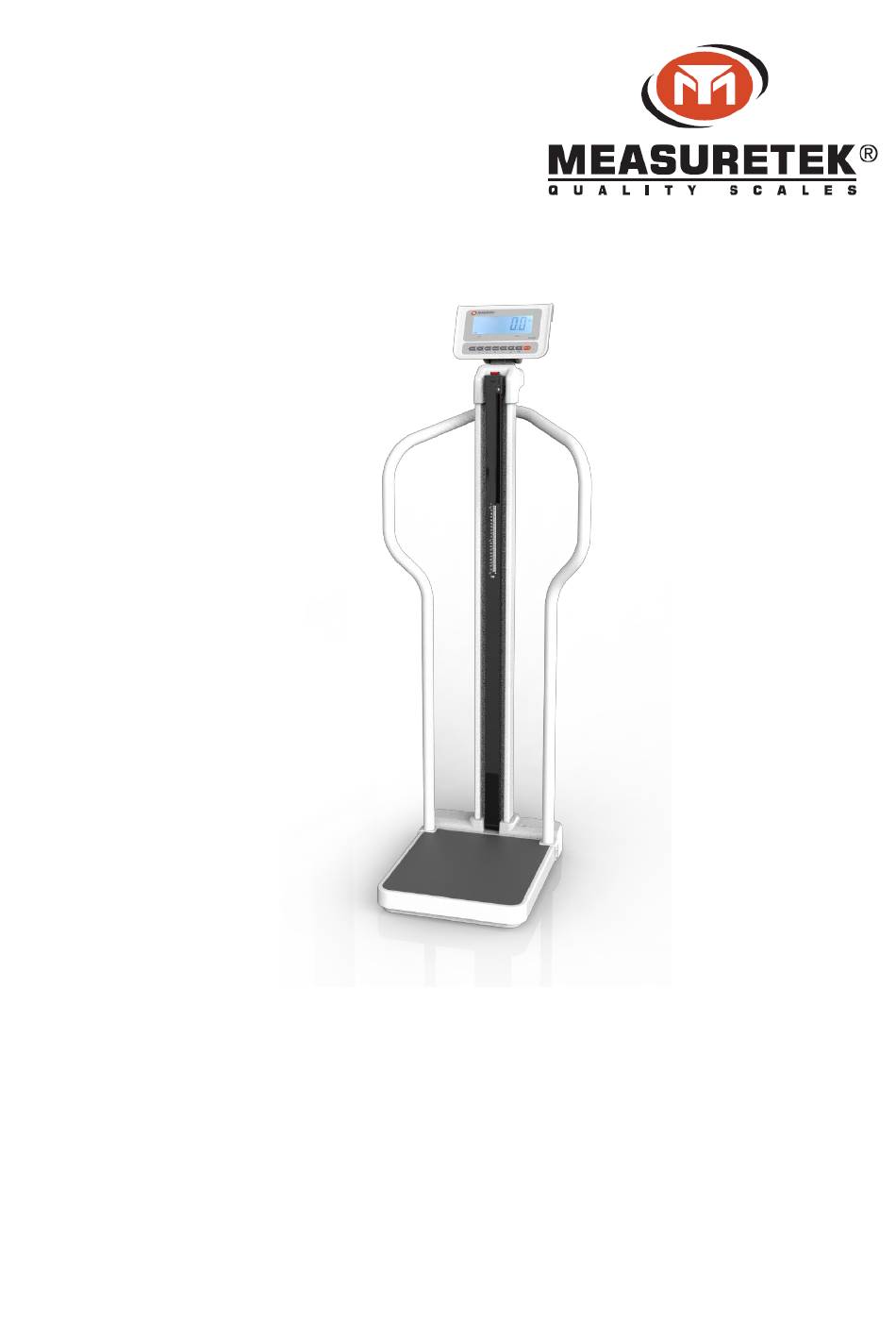

- Page 1 EH-PDE Physician Scale User Manual Contents subject to change without notice Version 1.0 11/2024...
-
Page 2: Table Of Contents
Table of Content 1. General and Safety Information ................. 2 2. Specification ........................ 2 3. Installation ........................3 4. Display and Key functions ..................8 4.1. Display............................8 4.2. indicator ............................. 9 4.3. Key functions ..........................10 5. Operation ........................11 5.1 Turn on/off the scale........................ -
Page 3: General And Safety Information
Electronic scales are precision instruments. Do not operate near cell phones, radios, computers or other electronic devices that emit radio frequencies that may cause unstable readings. Specification Model EH-PDE (Eye-Level) Capacity 660 lb / 300 kg Division 0.2 lb / 0.1 kg... -
Page 4: Installation
Installation 3.1 Assembly steps for scale 1) Recommended two personnel to assembly the scale. 2) Prepare a Phillips screwdriver. 3) Carefully remove the contents of the carton and place each part on a flat, level, and dry surface. Handpost (optional) Column and display indicator assembly Scale platform... - Page 5 5) Place the column on a table with the height rod face down, keep a firm hold on the platform and place it close to the tail end of the column. Plug the connector from the platform base to the connector from the column, then screw the lock on the connector. 6) Partly insert the platform base into the column tail, do not tightly clamp them to prevent the cable from getting caught on the bolts or getting stuck in any ribs.
- Page 6 8) Now tightly insert the platform base into the tail of column until the 4 bolts of the column completely access the holes on the bottom of the platform. Use the wrench to secure the column to the platform base with the provided nuts and washers. Column Washer Platform base...
- Page 7 10) Now the installation for scale without handpost is complete. Lift the scale and place it on a flat and hard ground. 3.3 Assembly steps for handpost lace the scale on a flat ground, put the handpost onto the platform and secure it with the suppled screws and hex wrench.
- Page 8 2) Tilt the scale down with the long side of the platform facing up, install the other two screws. Install the upper screw first, then the lower screw. Then tighten all the 8 screws to secure the handpost to the platform base. 3) Now the installation for handpost is complete.
-
Page 9: Display And Key Functions
Display and Key functions 4.1. Display www.easthighscale.com... -
Page 10: Indicator
4.2. indicator Meaning of Annunciators - Zero-point annunciator, gross weight is 0, tare weight is 0 - Stable annunciator - Battery level display - Net weight indication, tare weight is not equal to 0 -Weight is in lb -Weighting unit is kg - BMI working status - Indicates that the locked weight will be displayed until the scale is turned off or HOLD... -
Page 11: Key Functions
4.3. Key functions Condition Function Definition Weighing/BMI Mode Enter User parameter settings Weighing/BMI Mode Unit conversion Menu/Data Entry Mode Return to previous menu <3 seconds Displays the last locked stable weight Weighing/ BMI Mode >3 seconds Display/set date and time Input data mode Increase the flashing data by 1 Menu Mode... -
Page 12: Operation
Operation 5.1 Turn on/off the scale When scale is off, press the key to turn on the scale. When the scale is powered on, press and hold the key to turn it off. 5.2 Zero Function a. If the display is not 0 and there is no load on the scale, press the key to reset to zero. -
Page 13: Change Unit Of Measures
5.5 Change Unit of Measures In the weighing state, press the UNIT key to convert the unit of measure between KG and LB. Note: When Lock annunciator lights on, the unit of measure cannot be converted. 5.6 REWEIGH Function a. After the weighing is stable, the LOCK annunciator lights up and the weighing value is locked. Press REWEIGH to reweigh and lock. -
Page 14: Setting Auto Off Time
score. This BMI score is then used as a tool to categorize a patient as underweight, normal, overweight, obese or morbidly obese. a. When the scale is in normal weighing mode, stand onto the scale platform. When the reading is stable and the LOCK annunciator lights up, press the BMI key to enter the BMI mode. b. -
Page 15: Setting Sound Options
5.11 Setting Sound Options SETUP a. Press to turn on the scale, short press , you will enter the SETUP mode, it will show “CAL”, press the key, it will show “USER”, press the key to confirm to enter the USER manual setting mode. key until BEEP is displayed, press the b. -
Page 16: User Menu Setting
User Menu Setting "CAL”, press the a. When the scale is on, press the SETUP key to enter SETUP mode. The scale displays key till it displays “USER". Press the key to confirm and enter USER menu setting. In the mode, press the keys to switch the parameters in the menu. - Page 17 First level Secondary Default Options definition menu menu Settings 1200 2400 BAUD. R T 9600 Set USB (VCP) baud rate 4800 9600 19200 BYT. F MT Set USB (VCP) data format NONE Set USB (VCP) output conditions: NONE = None; CONT CONT = continuous print output;...
- Page 18 ON = Key audible tone is on BEEP OFF = Key audible tone is off The minimum weight that can be locked: 1-255 = 1-255 d; when the weight is less than this setting value, it will not be NLD. R NG 1-255 locked.
-
Page 19: Troubleshooting
Troubleshooting Fault category Cause Inspection and treatment methods 1. The power adapter does not have reliable 1. Check whether the power adapter access; connector is in good condition; Unable to turn on 2. The battery voltage is 2. Replacement battery; too low;... - Page 20 Fault category Cause Inspection and treatment methods In HOLD mode, the weight data is unstable within 9 STB.ER Stabilize the load. seconds and fluctuates for more than 5 days. 1. The load weight 1. Reduce the load on the scale; exceeds the key zero Unable to perform 2.
