Beijer Electronics BoX2 extreme Installation Manual page 10

Installation

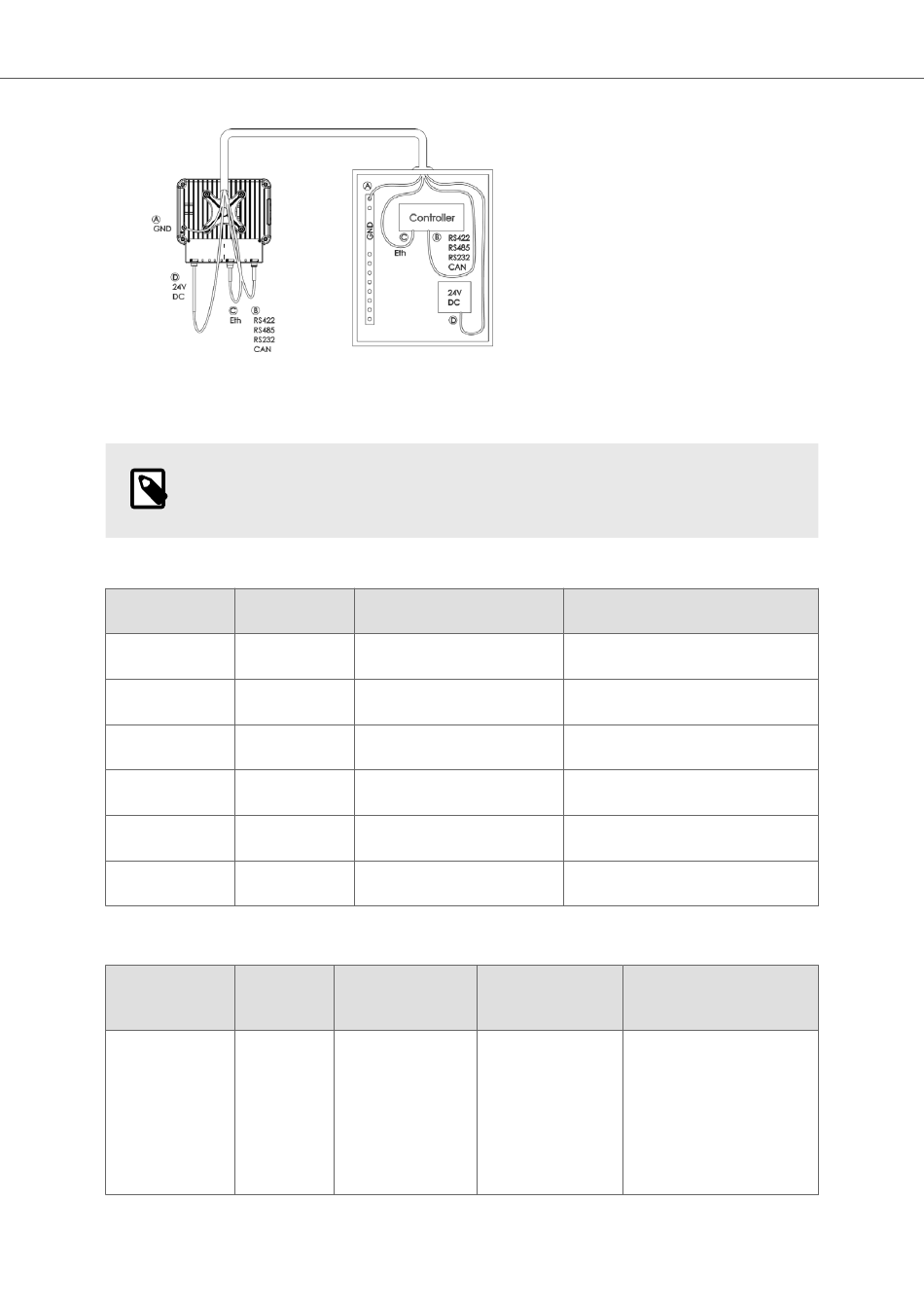

• Connect cable A to the terminal, using 14-20 AWG (2.08–0.52 mm2), 180–220 N-cm torque.
NOTE
Use minimum 85°C copper conductors only.
ATEX \ IECEx Zone 2 Environment (M12 cables sets)
Manufacturer Beijer Part
Number
Binder 100-1025
100-1151
Binder 100-1024
100-1152
Binder 100-1023
100-1153
Type 4X, C1D2 Environments (M12 connector with cable gland)
Manufacturer Beijer
Part
Number
Binder 100-1148
2023-09
Manufacturer Model No.
77-3529-0000-50708-0300
77-3529-0000-50708-1000
77-4529-0000-34704-0300
77-4529-0000-34704-1000
77-3430-0000-50004-0300
77-3430-0000-50004-1000
Manufacturer Description
Model No.
99-1487-992-08 X2 extreme
Connector, M12
SS 8p male 5.5 -
7.5 mm Gland
(COM)
10
Description
M12 male 8p to blank 3 meter
(COM)
M12 male 8p to blank 10 meter
(COM)
M12 male 4p to blank 3 meter
(LAN)
M12 male 4p to blank 10 meter
(LAN)
M12 female 4p to blank 3 meter
(power)
M12 female 4p to blank 10
meter (power)
Cable Ratings
CMX cable rated 300V,
2 4AWG, 8 conductor,
5.5 - 7.5 mm OD, -30°
C to 70° C
PLTC cable rated 300V,
22AWG, 4 conductor,
5.5 mm – 7.5 mm OD,
-30° C to 70° C
Beijer Electronics, MAEN276
