Summary of Contents for Victrola MONTAUK

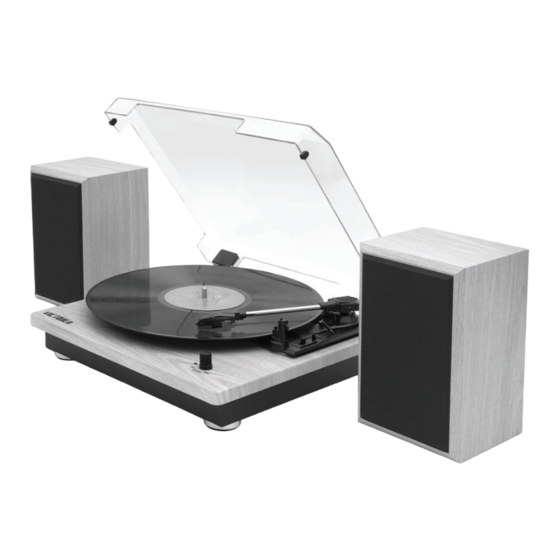

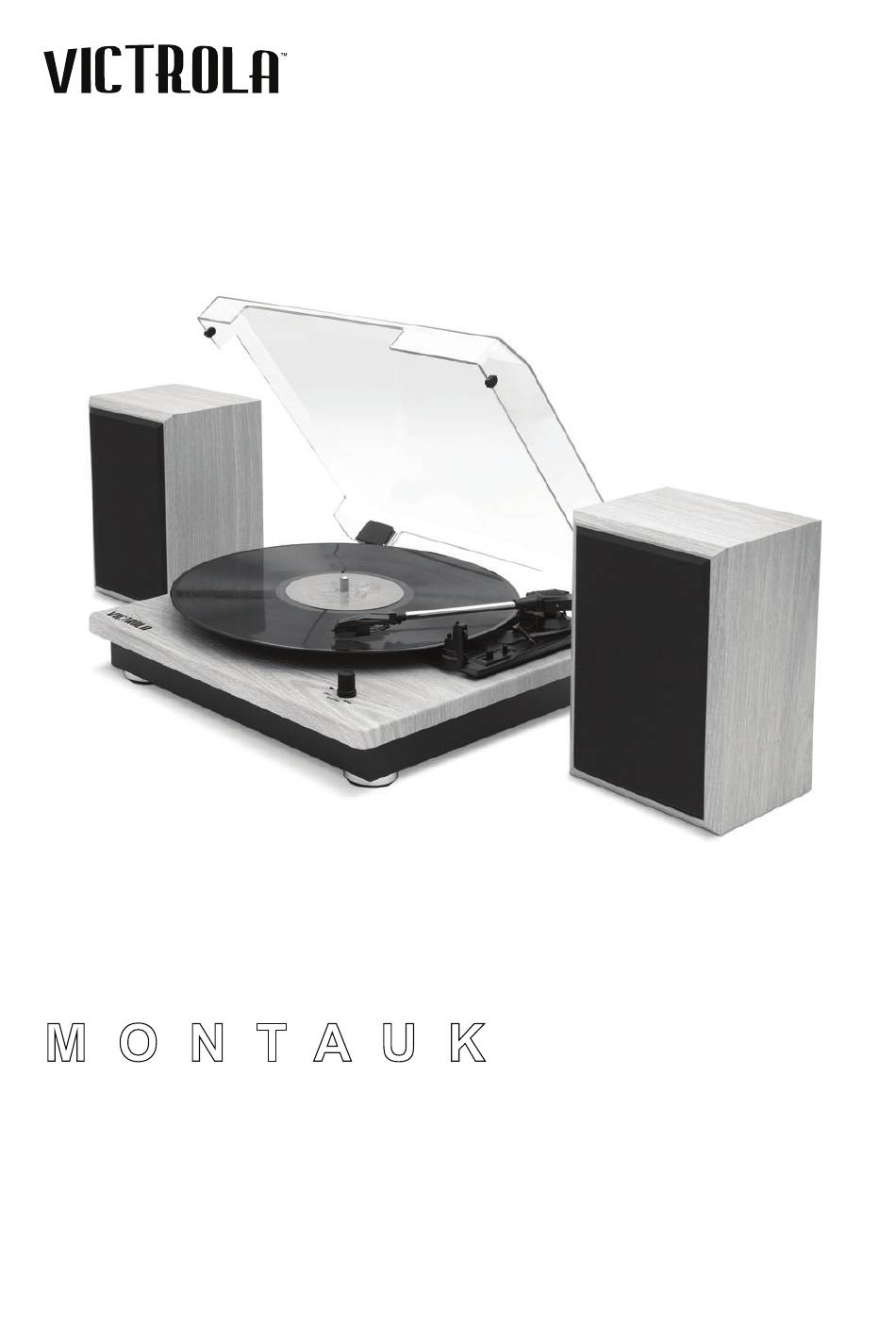

- Page 1 T H E M O N T A U K MODEL: VM-135 INSTRUCTION MANUAL PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE AND KEEP IT FOR FUTURE REFERENCE.
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS 1. Do not cover or block any ventilation openings. When placing the device on a shelf, leave 5 cm (2”) free space around the whole device. 2. Install in accordance with the supplied user manual. 3. Keep the device away from heat sources such as radiators, heaters, stoves, candles and other heat-generating products or naked flame. - Page 3 23. Only use attachments/accessories specified by the manufacturer. 24. Refer all servicing to qualified service personnel. Servicing is required when the device has been damaged in any way, such as the power supply cord or the plug, when liquid has been spilled or objects have fallen into the device, when the device has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Page 4: Specifications
45 RPM adapter Design and specification are subject to change without notice. Bluetooth is a registered trademark of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners. Victrola is a registered trademark of Innovative Technology Electronics LLC. -
Page 5: Turntable Layout
TURNTABLE LAYOUT 1. 45 RPM ADAPTOR 2. LIFT LEVER 3. AUTO STOP CONTROL SWITCH 4. SPEED SELECTION SWITCH 5. TONE ARM 6. TONE ARM LOCK 7. PHONO STYLUS CARTRIDGE 8. POWER/VOLUME KNOB 9. POWER LED LIGHT INDICATOR 10. TURNTABLE SHAFT 11. -
Page 6: Turntable Operation
TURNTABLE OPERATION Set Up An AC/DC adaptor with an output of 12V DC 2.0A is included with this Turntable with Bluetooth reception and Wooden Speakers. The adapter is required for operating the unit. Connect the speaker cables from each speaker to the back of the unit NOTE: The external speaker cables are color coded, the cable with the red connector should be put in the red hole and the white one in the white hole. -
Page 7: Bluetooth Operation
4. Turn your external device’s Bluetooth Setting ON. Wait a moment, then look for the Bluetooth pairing name “Victrola Montauk”. If your device asks for a password (depending on the device manufacturers, model, and software version), then enter digits “0000” and press OK. -
Page 8: Fcc Statement
FCC STATEMENT Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 9: Warranty
Except as limited below, if the product proves defective in either material or workmanship within one (1) year from the date of purchase, Victrola will replace the product at no charge. If the product model is no longer available and cannot be replaced with an identical model, Victrola will issue a merchandise credit for the purchase price to be redeemed at victrola.com.
Need help?
Do you have a question about the MONTAUK and is the answer not in the manual?
Questions and answers
Cannot get Bluetooth to work. With unit turned on and arm on armrest, the led light does not flash
The Bluetooth on the Victrola Montauk may not be working if the external device’s Bluetooth setting is not turned on or if pairing has not been completed. Ensure that Bluetooth is enabled on the external device and search for "Victrola Montauk" in the Bluetooth settings. If a password is required, enter "0000" and confirm. If the issue persists, try restarting both devices and attempting the pairing process again.
This answer is automatically generated
