Victrola VTA-67 Instruction Manual

3-in-1 turntable
Hide thumbs

Advertisement

Table of Contents

3-IN-1 TURNTABLE
MODEL: VTA-67

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTA-67 and is the answer not in the manual?

Questions and answers

Related Manuals for Victrola VTA-67

Summary of Contents for Victrola VTA-67

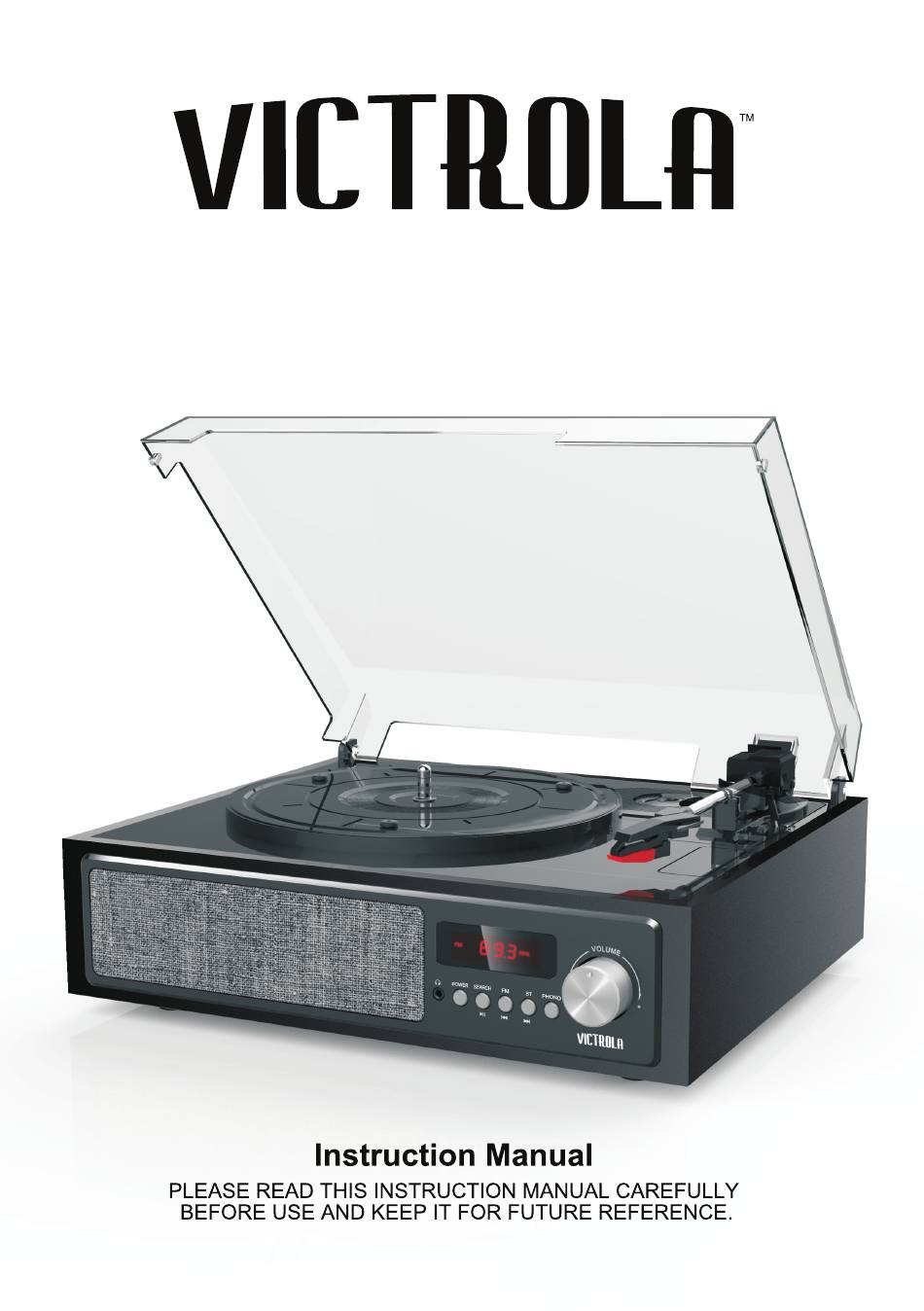

  • Page 1 3-IN-1 TURNTABLE MODEL: VTA-67...

  • Page 2: Table Of Contents

    CONTENTS Safety Instructions....................Product overview....................Setup/Basic Operation..................Listening to a Vinyl Record................... Listening to the FM Radio..................Listening to an External Audio Device(AUX Mode)..........Listening to an External Audio Device(Bluetooth Mode)........Maintenance/Proper Handing................Troubleshooting Guide..................Specifications......................FCC Statement and other warnings..............

  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS 16. The mains plug is used as disconnect device, the disconnect device shall remain readily operable. 17. To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall not be placed on apparatus.
  • Page 6 PRODUCT OVERVIEW Rear view 9. FM wire antenna While tuned to a station in FM mode, extend the wire and reposition. 10. LINE OUT jacks For amplifier device with RCA auxiliary input sockets, insert the white and red plugs on the RCA cable into the unit. Insert the opposite end into the amplifier device.

  • Page 7: Setup/Basic Operation

    SETUP/BASIC OPERATION Setup 1. Remove white protective needle cover by gently pulling towards front of unit. 2. Remove any packaging materials from the unit. Connect the power adapter to the DC Input jack to power on the unit. Note: - It is strongly recommended that this product should be operated only from the type of power source indicated on the marking label.

  • Page 8: Listening To A Vinyl Record

    LISTENING TO A VINYL RECORD 1. Turn the unit ON by pressing the POWER button. 2. Press the PHONO button to enter the PHONO mode. 3. Gently open the dust cover. 4. Put the record on the turntable. Select the speed. When playing a 45 RPM record, use the included 45 adaptor.

  • Page 9: Listening To An External Audio Device(Bluetooth Mode)

    NOTE: The effective distance between your external device and this unit is 10 meters(33ft). 4. Wait for the “VTA-67” to appear on the paired devices list of your external device and press “VTA-67”. In some instances: a window will ask you a password. Fill in “0000" then press “OK”...

  • Page 10: Maintenance/Proper Handing

    MAINTENANCE/PROPER HANDING Handling Vinyl Records Do not touch the record’s grooves. Only handle records by the edges or the • label with clean hands. Touching the record surface will cause your record’s quality to deteriorate. To clean a record, use a soft anti-static cloth to gently wipe the record surface •...

  • Page 12: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Possible Cause Solution symptom Uint will not power on Connect the DC power • • Unit is unplugged. • adapter to the jack. The volume level is set • No sound output from • Adjust the volume. • speakers too low.
  • Page 13 Possible Cause Solution symptom • No sound The unit is not switched • Ensure the unit is • switched to BT mode. to Bluetooth mode. Your device’s and/or • Move your Bluetooth • device closer to unit. your unit’s volume is not Turn up the volume turn up.

  • Page 14: Specifications

    SPECIFICATIONS GENERAL Power adapter -----------------DC 5V/1A Power Consumption ----------5W Power Output -------------------2X2W Size--------------------------------12.7'’(322mm)W×11.4'’(290mm)D×5.2'’(132mm)H Weight-----------------------------4.5 lbs (2kg) FM Radio Range -----------------------------------88 to 108 MHZ RECORD PLAYER Speeds ----------------------------------33-1/3 rpm, 45 rpm and78 rpm BLUETOOTH Bluetooth Version -------------------- Bluetooth V4.0 Bluetooth Profiles -------------------- A2DP, AVRCP Bluetooth Frequency range ------- 2.402GHz-2.480GHz Operating Distance ------------------10 meters (33 ft.)
