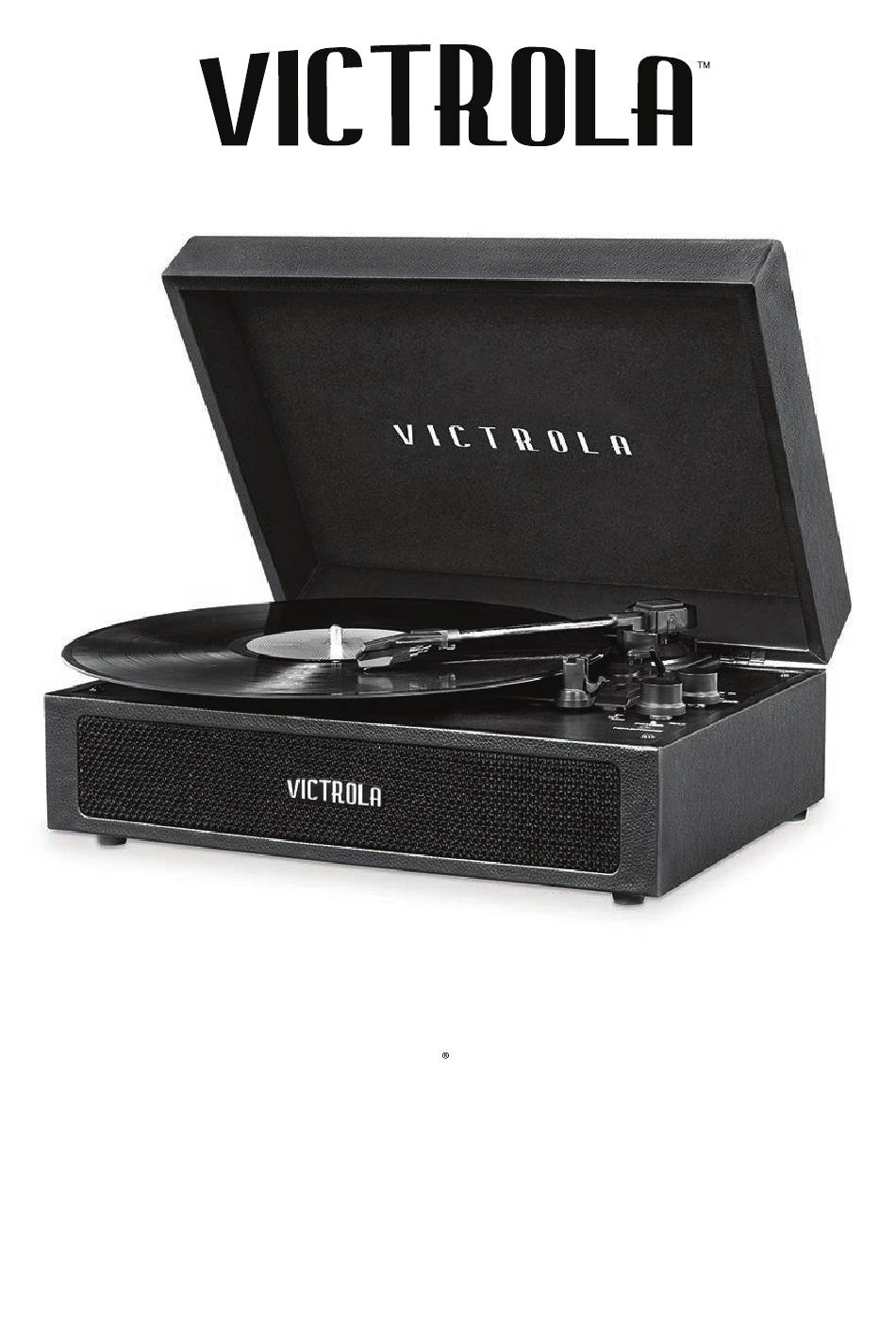

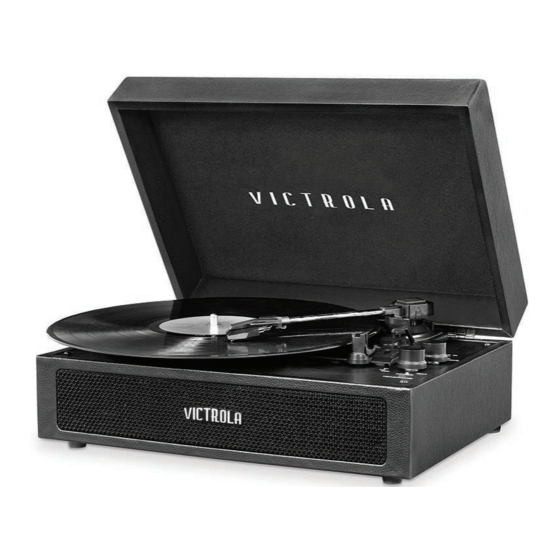

- Page 1 Parker Bluetooth Turntable Model: VSC-580BT Instruction Manual PLEASE READ THIS INSTRUCTION MANUAL CAREFULLY BEFORE USE AND KEEP IT FOR FUTURE REFERENCE.
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS ................2 SPECIFICATIONS .................... 3 TURNTABLE LAYOUT..................4 TURNTABLE OPERATION ................5 POWER SUPPLY ..................5 BASIC OPERATION ..................5 TURNTABLE NEEDLE REPLACEMENT............. 5 BLUETOOTH OPERATION ................6 AUX-IN OPERATION..................6 HEADPHONE OPERATION................6 FCC STATEMENT .................... 6 CALIFORNIA PROP 65 WARNING.............. -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS 1. Read these instructions – All the safety and operating instructions should be read before this product is operated. 2. Keep these instructions – The safety and operating instructions should be retained for future reference. 3. Heed all warnings – All warnings on the appliance and in the operating instructions should be adhered to. -
Page 4: Specifications
This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO PREVENT The exclamation point within an equilateral The lightning flash with arrowhead within an triangle is intended to alert the user to the... -
Page 5: Turntable Layout
TURNTABLE LAYOUT TURNTABLE PLATTER TURNTABLE SHAFT 45 RPM ADAPTOR LIFT LEVER TONE ARM CLIP LINE-IN JACK AUTO AND MANUAL STOP SELECTION SWITCH FUNCTION (BT (BLUETOOTH), LINE-IN, PHONO) KNOB SPEED SELECTION SWITCH TONE ARM POWER ON/OFF AND VOLUME CONTROL KNOB POWER/BLUETOOTH LIGHT INDICATOR STYLUS CARTRIDGE HEADPHONE JACK RCA OUTPUT JACK... -
Page 6: Turntable Operation
TURNTABLE OPERATION POWER SUPPLY Insert the adaptor plug into the DC IN jack on the rear of the unit, then connect the AC/DC adaptor (5V 1A, 100-240V~50/60Hz) to a AC/DC wall outlet. BASIC OPERATION 1. Open the lid of the unit. 2. -
Page 7: Bluetooth Operation
BLUETOOTH OPERATION An external device with Bluetooth Connectivity can be wirelessly connected to this turntable using the Bluetooth function. 1. Power ON the unit by turning the VOLUME CONTROL KNOB clockwise. 2. Turn the FUNCTION KNOB to the BT (Bluetooth ) position, the blue LED light will ®... -
Page 8: Fcc Statement
FCC STATEMENT Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 9: Warranty
To obtain service, the purchaser MUST present an original sales receipt / proof of purchase. Please contact us at www.victrola.com to request an RMA (Return Material Authorization) number to return products for service or replacement. Returns without an RMA number on the package will be refused and returned to sender.
