6.3.

INCREASING SAFETY LEVEL

WARNING
Modifications of the safety system, involving application of the power line con-
tactors, shall be performed only by a competent person. A competent person is
a qualified and knowledgeable person, who because of their training, experience
has the knowledge required to apply those changes. It is customer responsibility
to commission modification of the safety system to a competent person, expe-
rienced with industrial wiring practices, which will be required to undertake the
installation. Commissioning shall be undertaken by a trained electrical techni-
cian experienced in safety installations.
6.3.1

ASSEMBLING MOTION LOCK JUMPER

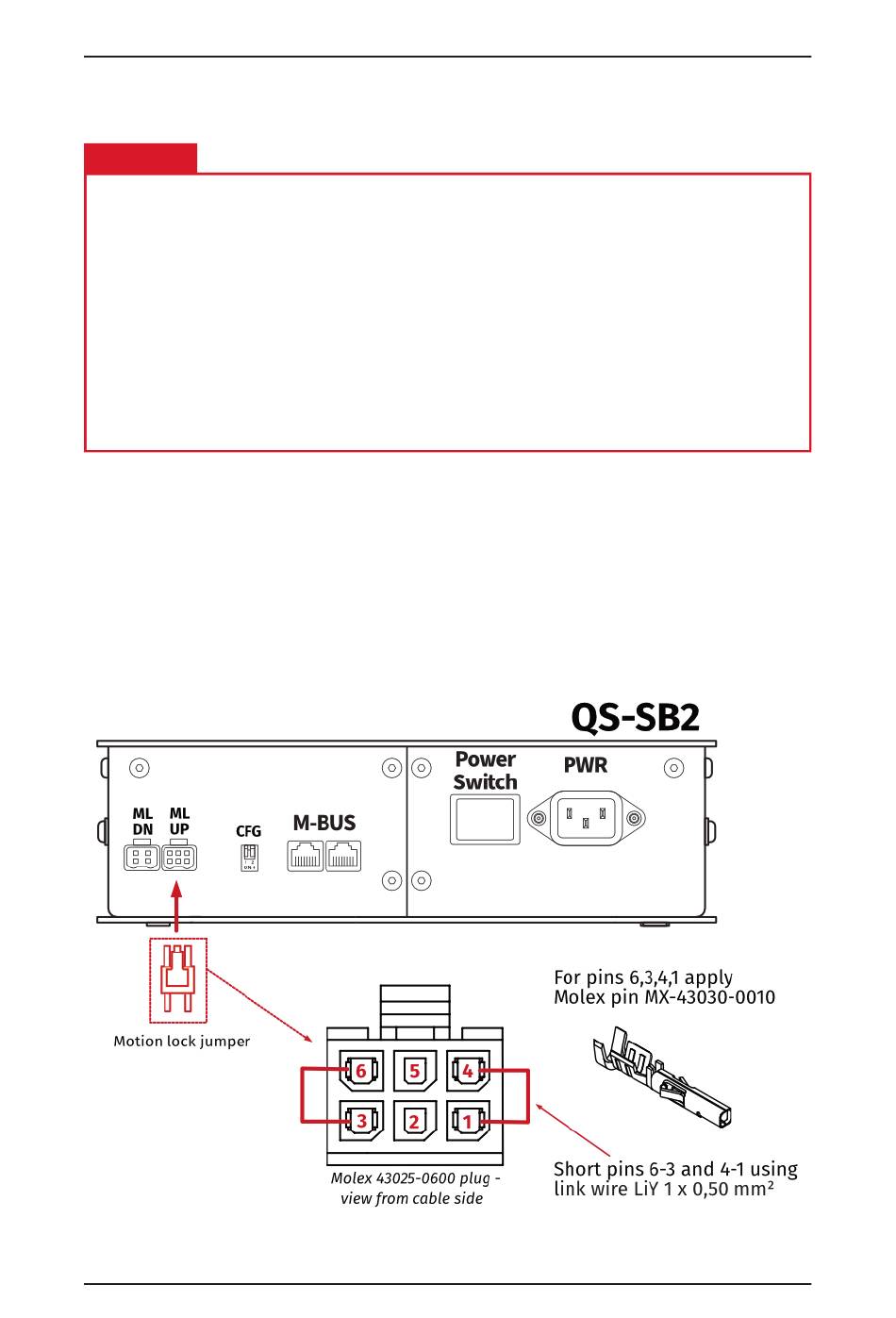

To apply solutions which require to use power line contactors, Motion Lock connection
cables in the QS-SB2 power cabinet needs to be replaced with jumpers, which are not
provided with the QS-S25. To prepare jumper, you need to assemble recommended
connector as shown below :
