QS-S25
3.1.5
MOUNTING STEERING WHEEL MODULE

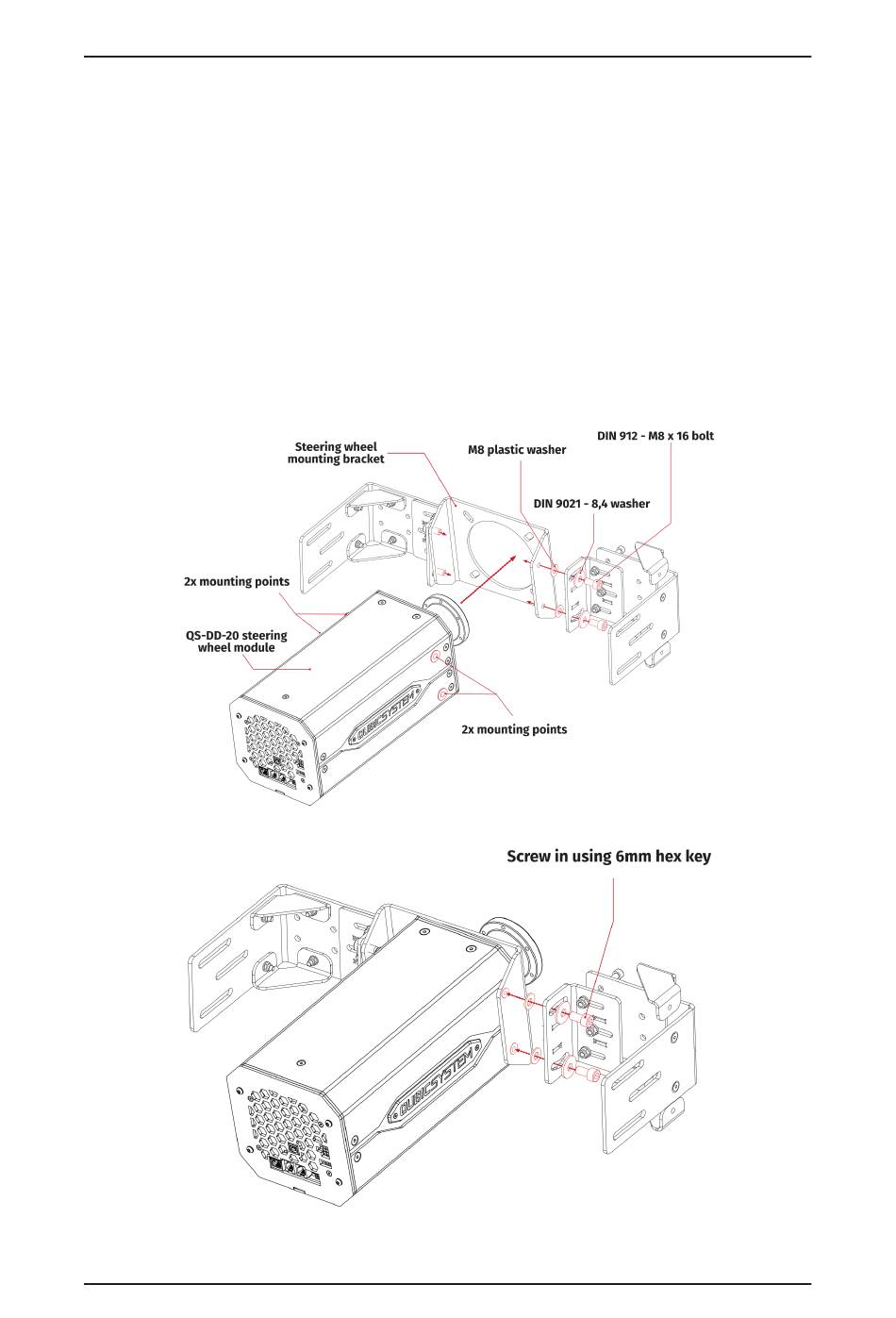

In order to mount the QS-DD-20 steering wheel module to the QS-S25 cockpit:
1. Put the QS-DD-20 steering wheel module through the hole in the steering wheel
mounting bracket.
2. Screw in 4x M8x16 bolts located on the side of the mounting bracket to the steering
wheel module using 6mm hex key.
3. Connect the device according to the interconnections scheme which can be found
in the QS-DD-20 user manual.
User Manual R2.0
21
