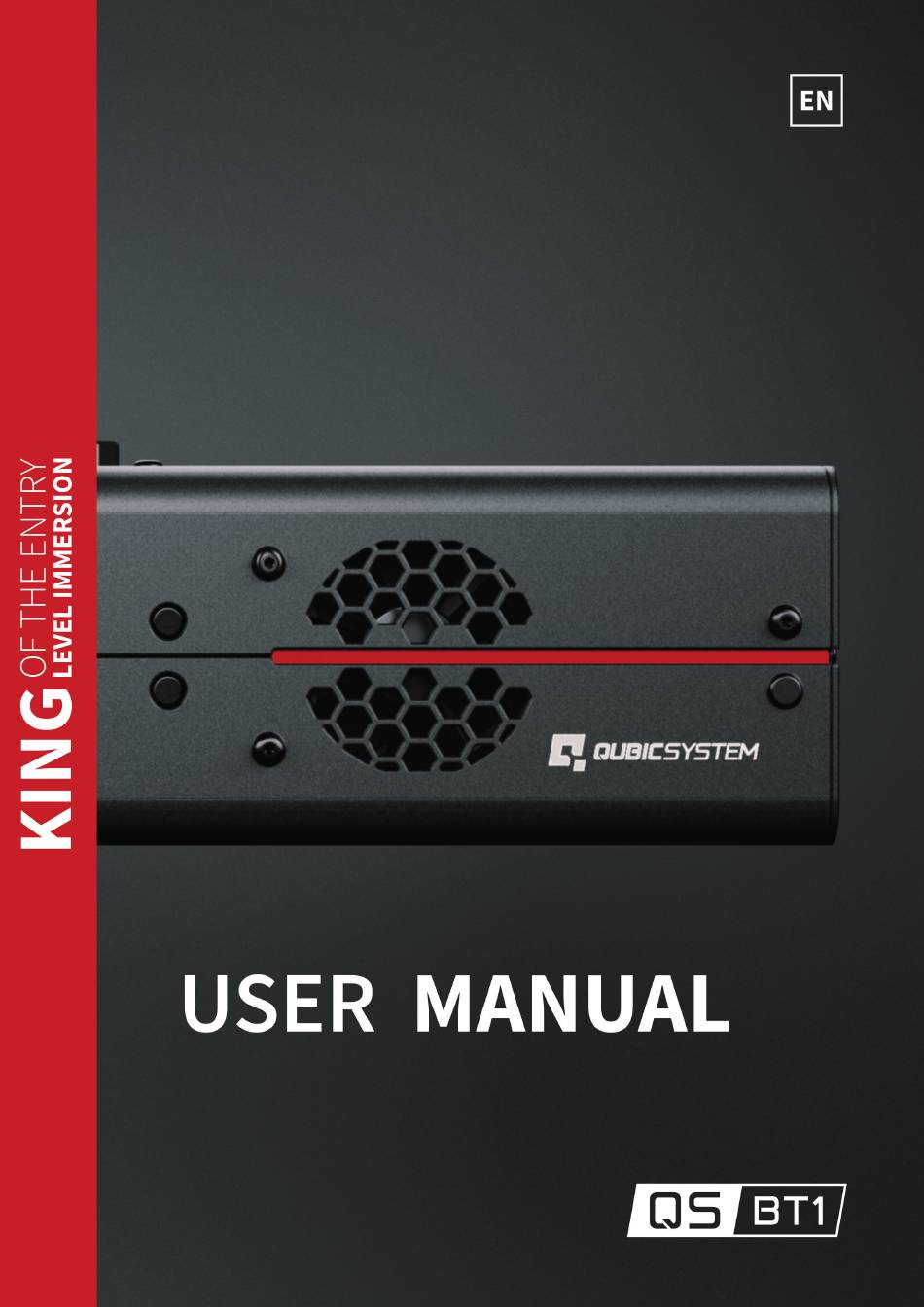

Qubic System QS-BT1 User Manual

Hide thumbs Also See for QS-BT1:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QS-BT1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Qubic System QS-BT1

Summary of Contents for Qubic System QS-BT1

  • Page 3: Table Of Contents

    Contents 1 Introduction ......... . 2 Safety precautions .

  • Page 4: Introduction

    It is powered by the same technology as QS-220 and provides force feedback similar to that offered by direct-drive wheels. QS-BT1 generates vibrations to simulate a running engine, tensions up with downshifts, upshifts, in corners, and finally - gives a strong pull when crashing.

  • Page 5: Essential Information

    Use the QS-BT1 only for its intended purpose, according to instructions. ■ Unplug the QS-BT1 from the power supply if it is not used for an extended period of ■ time or when there is a need to perform hardware installation, maintenance, service or repair.
  • Page 6 Protect the power cord from being damaged by being stepped on, rubbed against, or ■ pinched. DO NOT use the QS-BT1 if the ambient temperature is below 5°C (41°F) or above 40°C ■ (104°F). DO NOT use the QS-BT1 if it has been damaged, or any component is broken or ■...

  • Page 7: Technical Details

    WARNING It is forbidden to use the device in applications other than intended. 4.2. LIST OF COMPONENTS INFO The QS-BT1 package does not include seat belts; they need to be obtained separately. User Manual R2.1 05/2024...

  • Page 8: Operating And Storage Conditions

    Maximum altitude: 0 - 2000 m (6561 ft) ■ Ensure a safe distance from QS-BT1’s cooling vents on the backside (min. 15 cm / 6 ■ in.) and on the frontside (min. 3 cm / 1.18 in.), and for cable plugs underneath (min.
  • Page 9 QS-BT1 UNIVERSAL MOUNTING ADAPTER * ALL DIMENSIONS IN MILLIMETERS MOUNTING HOLE DIMENSIONS The QS-BT1’s mounting bolts insertion depth CANNOT exceed 20 mm and CANNOT be less than 15 mm. User Manual R2.1 05/2024...

  • Page 10: Power Supply Specification

    QS-BT1 4.5. POWER SUPPLY SPECIFICATION QS-BT1 requires 120/230 VAC 50-60 Hz single phase power source with neutral and protective earth connection. WARNING The power supply for QS-BT1 includes an electric cord with an equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching socket that is correctly installed and grounded in accordance with appropriate local codes and ordinances.

  • Page 11: Noise Emission

    4.7. NOISE EMISSION The QS-BT1 was checked for noise level emission. Noise level during normal work conditions is not over 50 dB. Measurements method complies with ISO 11202 standard. Four measuring positions as shown on the picture are placed 160 cm from the floor level and 100 cm from the edge of the device.

  • Page 12: Setup And Installation

    QS-BT1 SETUP AND INSTALLATION 5.1. ATTACHING TO THE ALUMINUM BASED COCKPIT PROFILE If you have a custom cockpit based on aluminum profiles, QS-BT1 must be mounted using universal mounting adapters. Assembly parts: No. Part description Qty. Universal mounting adapter T-slot nut M8...
  • Page 13 QS-BT1 Slide the T-Slot nuts into the cockpit rear profile bar and then screw in the universal adapter using bolts and toothed washers by hand. Do not torque down the bolts yet. Adjust the space between mounting brackets to fit in the belt tensioner mounting holes.
  • Page 14 QS-BT1 Attach the QS-BT1 to the mounting brackets. Align and adjust the position of the belt tensioner. It should rest flat against the bracket. Tighten all eight bolts down (25 Nm [18.5 ft-lbs] of torque applies for bolts with an 8.8 metric grade).

  • Page 15: Attaching To Qs-Ch1

    QS-BT1 5.2. ATTACHING TO QS-CH1 The QS-BT1 should be attached to QS-CH1 using two mounting brackets (not included - can be purchased separately from our retailers). Assembly parts: No. Part description Qty. Mounting bracket Bolt M8 x 16 (DIN 933)
  • Page 16 25 Nm (18.5 ft-lbs) of torque. Repeat the operation on the other side. Attach the QS-BT1 to the brackets. Rest the QS-BT1 flat against the brackets and screw in the bolts. Tighten all four bolts down to 25 Nm (18.5 ft-lbs).

  • Page 17: Attaching To Qs-V20

    QS-BT1 5.3. ATTACHING TO QS-V20 The QS-BT1 should be attached to QS-V20 using a mounting bracket (not included - can be purchased separately from our retailers). Assembly parts: No. Part description Qty. Mounting bracket Bolt M8 x 25 (DIN 912)
  • Page 18 QS-BT1 OPTIONAL for easier access - unscrew the rear logo plate (in case of rivets using assembly - drill them out). Unscrew the bolts and eye-ring nuts from the QS-V20’s frame. Rest the bracket flat on the QS-V20 frame and put through mounting bolts.
  • Page 19 Rest the QS-BT1 flat against the bracket and screw in the bolts by hand. Then torque down all four bolts to 25 Nm (18.5 ft-lbs) of torque.

  • Page 20: Attaching To Qs-S25

    QS-BT1 5.4. ATTACHING TO QS-S25 The QS-BT1 should be attached to the QS-S25 using a mounting bracket (not included - can be purchased separately from our retailers). Assembly parts: No. Part description Qty. Mounting bracket Bolt M8 x 35 (DIN 912)
  • Page 21 QS-BT1 Attach the QS-BT1 bracket to the back of QS-S25 frame. Rest the bracket flat on the QS-S25 frame and put through mounting bolts. Screw in the nuts on the bolts from underneath. Torque down all four bolts to 25 Nm (18.5 ft-lbs) of torque while holding the nuts from underneath with a flat wrench.

  • Page 22: Attaching To Hs-203

    Adding QS-BT1 reduces maximum user weight for HS-203 down to 115 kg (253 ■ lbs). The QS-BT1 should be attached to HS-203 using two mounting brackets (not included - can be purchased separately from our retailers). Assembly parts: No. Part description Qty.
  • Page 23 INFO Adapting brackets are not interchangeable. Refer to illustration below. Remove the seat from seat adapter bracket. Attach the QS-BT1 mounting bracket and spacer between the top frame of the HS-203 motion unit and the seat mounting bracket. INFO The seat adapter bracket in the illustrations below serves only as an example.
  • Page 24 M8x25 bolts to 25 Nm (18.5 ft-lbs) and M8x55 bolts to 20 Nm (14.7 ft-lbs) of torque while holding the nuts with a flat wrench. Rest the QS-BT1 flat against the brackets and screw in the bolts. Torque down all four bolts to 25 Nm (18.5 ft-lbs) of torque.

  • Page 25: Cable Connections

    MOTION LOCK CONNECTION DIAGRAMS It is recommended that you install a Motion Lock button. It is possible to run QS-BT1 device individually with a dedicated Motion Lock button. It is not included and can be purchased separately as an accessory from our retailers.
  • Page 26 QS-BT1 Seat belt tensioner (QS-BT1) with two power cabinets (QS-210/220). Variant #1 Variant #2 Seat belt tensioner (QS-BT1) with two power cabinets (QS-210/220) and a direct drive steering wheel (QS-DD-20). User Manual R2.1 05/2024...
  • Page 27 QS-BT1 Seat belt tensioner (QS-BT1) with a direct drive steering wheel (QS-DD-20), motion platform (QS-CH2) and two power cabinets (QS-210/220). Seat belt tensioner (QS-BT1) with a motion platform (QS-CH2) and two power cabinets (QS-210/220). User Manual R2.1 05/2024...
  • Page 28 QS-BT1 Seat belt tensioner (QS-BT1) with a direct drive steering wheel (QS-DD-20). Seat belt tensioner (QS-BT1) with one power cabinet (QS-210/220). Seat belt tensioner (QS-BT1) with stand-alone Motion Lock. User Manual R2.1 05/2024...

  • Page 29: Connecting Belts

    Attach tensioner buckles to belt buckles on the seat belts. Belts should not have too much slack initially but they will be tensioned later by the QS-BT1 after in-game engagement. Attach seat inserts to the seat belt holes. Inserts are compatible and will fit interchangeably.

  • Page 30: Attaching Back Seat Belts To The Platform

    ATTACHING BACK SEAT BELTS TO THE PLATFORM INFO Attaching back seat belts to the platform (with snap-hooks or a shackle) is optional but highly recommended. The QS-BT1 should only work as a belt tensioner, not a belt’s hooking point. WARNING...
  • Page 31 QS-BT1 QS-V20 Attach the seat belt’s snap hook to the eye-ring nut. QS-S25 Eye-ring nuts for seat belt’s snap hooks are equipped from factory. User Manual R2.1 05/2024...
  • Page 32 QS-BT1 HS-203 Attach the seat belt’s shackles between the mounting brackets and two top mounting bolts (underneath toothed washers). User Manual R2.1 05/2024...

  • Page 33: Seat Belt Settings

    QS-BT1 5.8. SEAT BELT SETTINGS 5.8.1 SEAT BELT SETUP For your safety and the best simulation experience, the seat belt must be set up correctly. Correct seat belt tension can be determined by placing your hands underneath the belts. If your hands can move freely - tighten the belt.

  • Page 34: Vehicle Vs. Flight Simulations Setup

    QS-BT1 5.8.2 VEHICLE VS. FLIGHT SIMULATIONS SETUP INFO To have the most immersive experience in vehicle or flight simulations you need a compatible seat with specific seat belt slots height. In vehicle simulations you should have In flight simulations you should have...

  • Page 35: Operation

    INFO For connecting and setting up the QS-BT1, see section 5.6 at page 24. 1. After turning on the QS-BT1, red light scanning effect at the led bar begins. The device is in standby mode. 2. Activate a correct profile in QubicManager main application window. For details refer to section 7.2 at page 37.

  • Page 36: Software

    This section refers to the QubicManager, which is the default Qubic Systems ■ software. If you already own another Qubic System device, the QS-BT1 will be automatically added to your device list in the QubicManager after connecting and powering up.
  • Page 37 Turn on the device by switching on the power switch button on the power supply unit. If QubicManager has recognized the QS-BT1 correctly, the status of the device will change to Connected. Device status is visible in the lower left corner.

  • Page 38: Adjustments

    QS-BT1 Check the Action Center on the right side panel for a list of actions that require attention. It is possible to solve them one by one or by pressing the Resolve All button. Firmware updates may require additional confirmation in the dialogue box.
  • Page 39 QS-BT1 In the profile window select ”Seat Belt Tensioner”: Adjust the settings to your own preferences using sliders in the profile window. Changes can be made ”on the fly” without quitting or restarting the simulation application. User Manual R2.1 05/2024...

  • Page 40: Troubleshooting

    QS-BT1 TROUBLESHOOTING WARNING DO NOT attempt to do any repairs by yourself. It is dangerous and will result in loss of warranty! All repairs should be consulted with technical support and performed by a qualified technician. Before contacting technical support, try this: Check the Action Center in QubicManager.
  • Page 41 QS-BT1 2. Diagnostic window allows pulling belts by using the sliders. It also displays the input data signal from the application. Check all cable connections of the device. ■ Restart QubicManager application by right-clicking on the application icon in the ■...

  • Page 42: Creating A Snapshot

    QS-BT1 8.1. CREATING A SNAPSHOT A snapshot is the easiest and fastest way to diagnose a problem. If you send in the zip file generated in the snapshot along with a description of the problem, technical support receives the necessary information about the product and its configuration. It can be then analyzed to provide the best solution.

  • Page 43: Discord Channel

    We strongly recommend joining our discord channel, where our growing community is sharing amazing tips and ideas of how to set up, use and tune the Qubic System products. You can also send questions for technical support or get answers directly from the community.

  • Page 44: Conformity Information

    QS-BT1 is an advanced device and if stored or disposed of incorrectly, it could harm the environment or/and other people. Please contact your local authorities for information regarding the nearest collection point.
