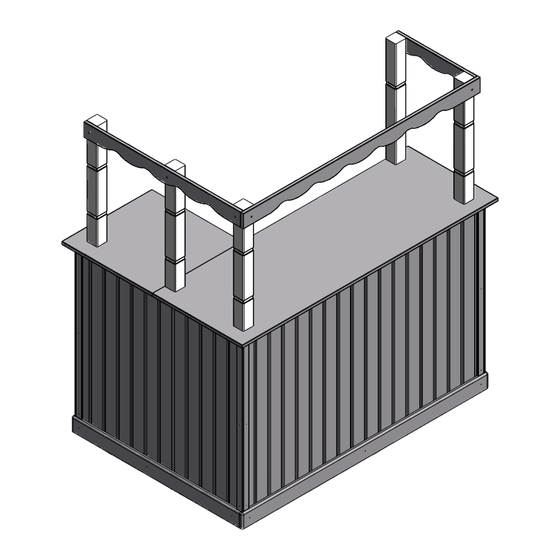

- Page 1 Cabin Corner Bar Installation Manual Unique Cabin Corner Bar Reference Number www.dunsterhouse.co.uk...
- Page 2 Cabin Corner Bar Installation Manual Important Thank you for purchasing the cabin corner bar from Dunster house. We aim for our customers to enjoy our products for many years and we appreciate your custom. Please retain all documentation with regards to your purchase. This cabin corner bar comes with a unique cabin corner bar reference number (shown on the front page of this manual and also on the outside of the packaging).
- Page 3 Cabin Corner Bar Installation Manual Panel A Panel B (With M8 Metal Inserts) (With M8 Metal Inserts) Wall Panel Wall Panel 1603 57.5 57.5 M8 Metal M8 Metal M8 Metal Holes Inserts Inserts Inserts Through Panel C Panel D (With M8 Metal Inserts) (Without M8 Metal Inserts) Moveable Bar top Wall Panel...
- Page 4 Cabin Corner Bar Installation Manual 45x45x450.A Frame Support 45x45x450.B Frame Support 45x45x400.B Frame Support 45x45x220.A 1x Frame Support 45x45x200.A Frame Support 45x45x150.A Frame Support 70x70x700.A Bar Pillar 70x70x700.B Bar Pillar 70x70x700.C Bar Pillar Page 3...
- Page 5 Cabin Corner Bar Installation Manual 19x90x1641.A 1641 Trim 19x90x1578.B 1578 Decorative Fascia 19x90x1119.A 1119 Trim 19x90x1045.B 1045 Decorative Fascia 19x90x525.B 19x90x200.A Decorative Fascia Bar Connector 19x90x549.B 19x90x549.A Trim Trim 8x38x1527.A 1527 Trim 8x38x481.A 8x38x990.A Trim Trim 8x38x1032.A 1032 Trim ACCESSORIES Description 60mm Confirmat Screw for Insert (Hex Allen Key Head) 45mm Confirmat Screw for Insert (Hex Allen Key Head)
- Page 6 Cabin Corner Bar Installation Manual 8x 25mm Screws Step 1 & 2 - Required Components 1x Screwdriver or Drill (Cross Head) 1x Tape Measure (Recommended) Panel A Modesty Block (With M8 Metal Inserts) 57.5 Holes Through M8 Metal Inserts BOTTOM Note:- It is strongly recommended to use a tape measure to find the right component with the right length.
- Page 7 Cabin Corner Bar Installation Manual 4x 25mm Screws Step 3 - Required Components 1x Screwdriver or Drill (Cross Head) 1x Tape Measure (Recommended) Panel B Modesty Block (With M8 Metal Inserts) 57.5 LEFT RIGHT BOTTOM 1603 Note:- It is strongly recommended to use a tape measure to find the right component with the right length. Pre-Drill for all screws to avoid splitting the timber Step 3 25mm Screws...
-
Page 8: Step 4 & 5 - Required Components
Cabin Corner Bar Installation Manual 3x 70mm Confirmat Screws Step 4 & 5 - Required Components 1x (Hex) Allen Key 1x Tape Measure (Recommended) 45x45x220.A 45x45x150.A 45x45x200.A Step 4 Fix '45x45x150.A' and '45x45x220.A' together using 1x '70mm Confirmat Screw' and the '(Hex) Allen Key' Use the diagram as a reference 45x45x150.A View after completing 'Step 4'... - Page 9 Cabin Corner Bar Installation Manual 3x 70mm Confirmat Screws 2x 25mm Screws Step 6 & 7 & 8 - Required Components 1x Screwdriver or Drill (Cross Head) 1x (Hex) Allen Key 1x Tape Measure (Recommended) 45x45x400.B Modesty Block 45x45x450.B 45x45x450.A Note:- It is strongly recommended to use a tape measure to find the right component with the right length Step 6 Fix '45x45x400.B' and '45x45x450.B' using the...
- Page 10 Cabin Corner Bar Installation Manual 4x 70mm Confirmat Screws Step 9 & 10 - Required Components 1x (Hex) Allen Key 1x Tape Measure (Recommended) Panel B Step 5 Construct (With M8 Metal Inserts) 57.5 2x Holes on the inside LEFT RIGHT Step 8 Construct 2x Holes...
- Page 11 Cabin Corner Bar Installation Manual 2x 60mm Confirmat Screws (For Insert) 2x M8 Washers Step 11 & 12 - Required Components 1x Screwdriver or Drill (Flat and Cross Head) 1x 3.9 x 35mm Screws 1x Tape Measure (Recommended) 1x (Hex) Allen Key Bar shelf Panel B Panel A...
- Page 12 Cabin Corner Bar Installation Manual 2x 60mm Confirmat Screws (For Insert) 2x M8 Washers Step 13 - Required Components 1x (Hex) Allen Key 1x Tape Measure (Recommended) Panel A (With M8 Metal Inserts) Panel B (With M8 Metal Inserts) 57.5 57.5 LEFT RIGHT...
- Page 13 Cabin Corner Bar Installation Manual 7x 25mm Screws Step 14 - Required Components 1x Screwdriver or Drill (Cross Head) 1x Tape Measure (Recommended) Bar top 4x Holes on side 2x Holes in EACH corner Stiffening Braces BACK BACK BOTTOM FRONT FRONT 1x Holes in EACH corner Note:- It is strongly recommended to use a tape measure to find the right component with the right length.
- Page 14 Cabin Corner Bar Installation Manual 2x 60mm Confirmat Screws (For Inserts) 2x M8 Washer Step 15 - Required Components 1x (Hex) Allen Key 2x 8mm x 30mm Dowel 1x Tape Measure (Recommended) 70x70x700.B Front Bar Assembly 70x70x700.A M8 Metal LEFT Insert Metal M8 Metal...
- Page 15 Cabin Corner Bar Installation Manual 2x 60mm Confirmat Screw (For Insert) 2x M8 Washer Step 16 - Required Components 1x (Hex) Allen Key 2x 8mm x 30mm Dowel 1x Tape Measure (Recommended) 70x70x700.C Front Bar Assembly 70x70x700.B M8 Metal LEFT Insert M8 Metal Insert...
- Page 16 Cabin Corner Bar Installation Manual 2x 45mm Confirmat Screw (For Inserts) 2x M8 Washers Step 17 - Required Components 1x (Hex) Allen Key 1x Tape Measure (Recommended) 19x90x1578.B 1578 Note:- It is strongly recommended to use a tape measure to find the right component with the right length. Step 17 Fix the component '19x90x1578.B' in the position shown in the diagram.
- Page 17 Cabin Corner Bar Installation Manual At this stage, please choose which side you want your bar Option 1 Right Side Bar Continue following the STEPS to build the Cabin Option 2 Left Side Bar Continue following the STEPS but in a mirrored way.
- Page 18 Cabin Corner Bar Installation Manual 2x 60mm Confirmat Screw 2x M8 Washers Step 18 - Required Components 1x (Hex) Allen Key 1x Tape Measure (Recommended) Panel C Panel D 57.5 12.5 (With M8 Metal Inserts) (Without M8 Metal Inserts) Holes Through 2x Holes M8 Metal 2x Holes...
- Page 19 Cabin Corner Bar Installation Manual 6x 25mm Screws Step 19 - Required Components Modesty Block Note:- It is strongly recommended to use a tape measure to find the right component with the right length. Step 19 Attach 3x 'Modesty Blocks' in the positions Panel D shown using 2x '25mm Screws' per modesty block.
-
Page 20: Left Side Bar
Cabin Corner Bar Installation Manual 2x 60mm Confirmat Screws (For Inserts) 2x M8 Washers Step 20 & 21 - Required Components 1x (Hex) Allen Key 4x 25mm Screws 1x Tape Measure (Recommended) 1x Screwdriver or Drill (Cross Head) Front Bar Assembly Step 19 Assembly Moveable Bar top Note:- It is strongly recommended to use a tape measure to find the right component with the right length. - Page 21 Cabin Corner Bar Installation Manual 1x 60mm Confirmat Screws (For Inserts) 1x M8 Washers Step 22 & 23 - Required Components 1x (Hex) Allen Key 4x 30mm Confirmat Screw (For Inserts) 1x Dowel 4x M5 Washers 19x90x200.A Note:- It is strongly recommended to use a tape measure to find the right component with the right length. Step 22 Using 'M5 Washers' and '30mm Confirmat Screws', Fix the component '19x90x200.A underneath both...
- Page 22 Cabin Corner Bar Installation Manual 5x 45mm Confirmat Screws (For Inserts) 5x M8 Washer Step 24 & 25 - Required Components 1x (Hex) Allen Key 1x Tape Measure (Recommended) 19x90x525.B 19x90x1045.B 1045 Note:- It is strongly recommended to use a tape measure to find the right component with the right length. Step 24 70x70x700.B Fix '19x90x1045.B' in the position shown in the diagram.
- Page 23 Cabin Corner Bar Installation Manual 3x 3.9mm x 35mm Screws Step 26 - Required Components 1x Screwdriver or Drill (Cross Head) 1x Tape Measure (Recommended) 19x90x1641.A 1641 Note:- It is strongly recommended to use a tape measure to find the right component with the right length. Pre-Drill for all screws to avoid splitting the timber Step 26 Fix '19x90x1641.A' using 3x '35mm Screws'.
- Page 24 Cabin Corner Bar Installation Manual 9x 25mm Screws Step 27 - Required Components 1x Screwdriver or Drill (Cross Head) 1x Tape Measure (Recommended) 8x38x1527.A 8x38x990.A 1527 Note:- It is strongly recommended to use a tape measure to find the right component with the right length. Pre-Drill for all screws to avoid splitting the timber Step 27 Screw the 2x '8x38x990.A' trims to 'Panel B' using 3x '25mm Screws' on each trim.
- Page 25 Cabin Corner Bar Installation Manual 3x 3.9mm x 35mm Screws Step 28 - Required Components 9x 25mm Screws 1x Screwdriver or Drill (Cross Head) 19x90x1119.A 8x38x990.A 1119 8x38x1032.A 1032 Note:- It is strongly recommended to use a tape measure to find the right component with the right length. Pre-Drill for all screws to avoid splitting the timber Step 28 Screw the bottom trim '19x90x1119.A' using 3x '35mm Screws'.
- Page 26 Cabin Corner Bar Installation Manual 2x 3.9mm x 35mm Screws Step 29 - Required Components 9x 25mm Screws 1x Screwdriver or Drill (Cross Head) 19x90x549.A 8x38x990.A 8x38x481.A Note:- It is strongly recommended to use a tape measure to find the right component with the right length. Pre-Drill for all screws to avoid splitting the timber Step 29 Screw the bottom trim '19x90x549.A' using 2x '35mm Screws'.
- Page 27 Cabin Corner Bar Installation Manual 2x 3.9mm x 35mm Screws Step 30 - Required Components 9x 25mm Screws 1x Screwdriver or Drill (Cross Head) 19x90x549.B 8x38x990.A 8x38x481.A Note:- It is strongly recommended to use a tape measure to find the right component with the right length. Pre-Drill for all screws to avoid splitting the timber Step 30 Screw the bottom trim '19x90x549.B' using 3x '35mm Screws'.
