EXPLODED UNIT DRAWING & PARTS LIST – CHILLED WATER

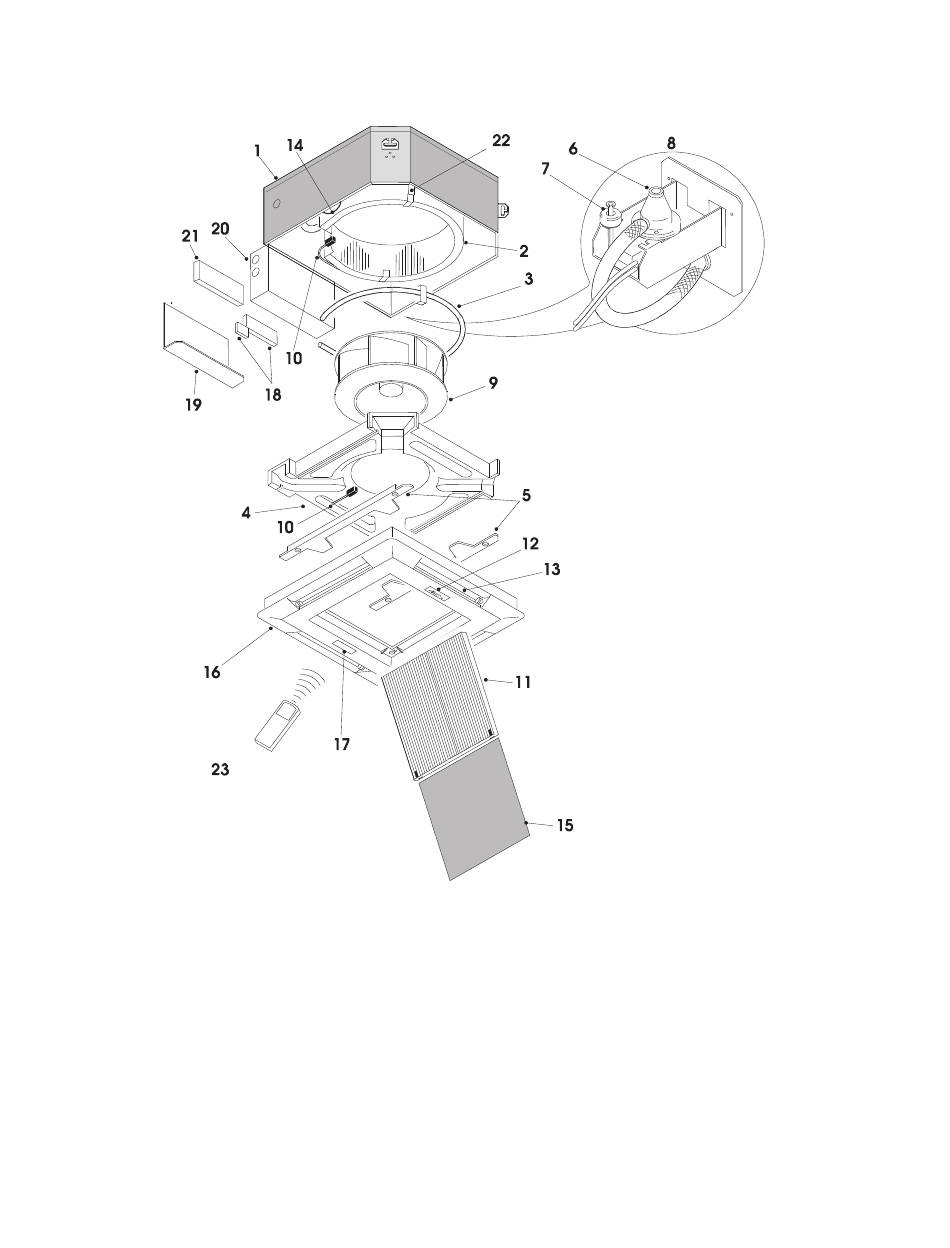

Figure 30.1 - Exploded Unit Drawing & Parts List – Chilled Water – Sizes 08 and 12
Lorem ipsum
1. Cassette Chassis
2. Chilled Water Coil
3. Electric Heater Element Assembly
4. Condensate Tray
5. Condensate Tray Supports (2)
6. Condensate Pump
High Level Switch
7.
8. Condensate Pump Assembly (Shown Inverted)
9. Fan/Motor Assembly
10. Coil/Return Air Sensors
(Microprocessor Only – Digit 8=M)
11. Grille
12. Brand Label
30
Handset
Lorem ipsum
13. Air Deflector Vanes (4)
14. Freeze Protection Thermostat
15. Filter
16. Fascia Assembly
17. Infrared Receiver
(Microprocessor Only – Digit 8 = M)
18.
Terminal Rail, Relays & Timer
19. Control Box Lid
Control Box
20.
PCB Controller
21.
(Microprocessor Only – Digit 8 = M)
22. Coil Support Brackets
Remote Handset
23.
(Microprocessor Only Digit 8 = M)
8-504.11
–
