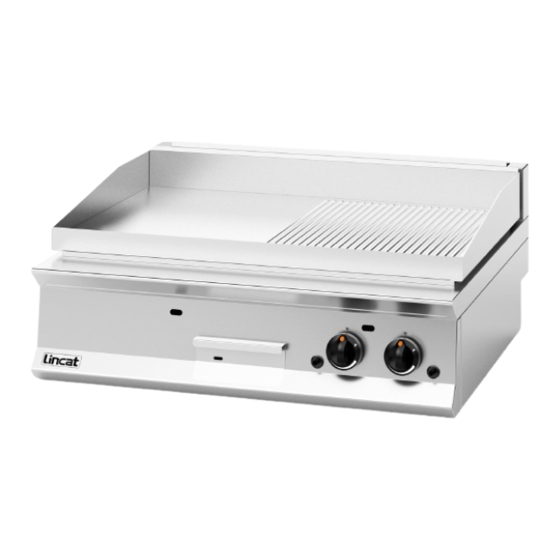

Lincat Opus 800 Installation, Operating And Servicing Instructions
Gas griddles
Hide thumbs
Also See for Opus 800:
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Lincat Opus 800
Summary of Contents for Lincat Opus 800
- Page 2 WARNING! This symbol is used whenever there is a risk of personal injury. CAUTION! This symbol is used whenever there is a risk of damaging your Lincat product. NOTE: This symbol is used to provide additional information , hints and tips.
-
Page 3: Warnings And Precautions
WARNINGS AND PRECAUTIONS This appliance must be installed, commissioned, and serviced by a qualified person in accordance with national and local regulations in force in the country of install a tion. Strip plastic coating and clean the appliance before use. During operation parts may become hot - avoid accidental contact . -
Page 4: Check List Of Enclosures
CHECK LIST OF ENCLOSURES INSTALLATION AND COMMISSIONING This appliance must only be used by qualified professionals Site this appliance beneath an extraction canopy for the removal of combus tion products. When making the gas connection, fit an isolating cock into the supply line close to the appliance for emergency shutdown or servicing purposes. - Page 5 The appliance is type ‘A’. Rooms must be ventilated in compliance with existing...
- Page 6 Connecting to a gas supply Installation a n d connection to the gas supply must only be carried out by a technician authorised by your local gas supplier. Before connection, ensure that the appliance is suitable for the type of gas supplied. Ensure the gas supply is provided with an isolating coc k for emergency shutdown.
- Page 7 OPERATING INSTRUCTIONS Preparing the griddle plate Clean the surface of the plate with warm, soapy water. Dry thoroughly and lightly coat with cooking oil. Lighting Sequence Open the main gas cock. Depress either of the control knobs and rotate to the spark position. Depress the re levant igniter button to ignite the gas at the pilot.
- Page 8 CLEANING Your Lincat product has a manufacturer’s warranty. ROUTINE CLEANING It is important that users of the appliance shall systematically check and clean down as necessary areas of the griddle that have accumulated oils, fats and other combustible debris from previous cooking.
-
Page 9: Servicing, Maintenance And Component Replacement
SERVICING, MAINTENANCE AND COMPONENT REPLACEMENT Service Access Facia panel removal Care should be taken when removing the fa cia panel as the igniter leads will remain attached to the igniter buttons. Remove the fat drawer and the control knobs Remove the screws from the facia panel . - Page 10 Component Replacement The burner cartridge can be removed from the griddle body if required to allow better access to components. R e move the control k n obs, facia panel and raise the griddle plate and remove the stat bulbs ensure not to damage the capillaries. R e move the manifold fix i ng screws at the rear of the appliance.
- Page 11 CONVERSION UK: 01522 875520 This conversion must be carried out by a Certified Gas Safe engineer This appliance is for gas cat II 2H 3P ACCESSORIES Part Number Description Used on OA89 1 7 Floor stand OG8201, OG8201/ R , OG8201/ C OA89 1 4 Floor stand OG8202, OG8202/ R , OG8202/ C...
-
Page 12: Fault Finding
FAULT FINDING Pilot will not light CHECK IGNITER FOR SPARKING Y E S CHECK GAS CHECK IGNITER LEAD SUPPLY IS ON CONNECTIONS IS GAS TY P E CORRECT CONNECT TO CORRECT GAS TY P E Y E S ADJ U ST AS CHECK OPERATING NECESSARY PRESSURE... -
Page 13: Spare Parts List
Burner will not light CHECK SUPPLY PRESSURE IS CORRECT Y E S ADJ U ST AS NECESSARY CHECK BURNER INJ E CTOR CHECK GAS FLOW TO FOR BLOCKAGE BURNER REPLACE CLEAR BLOCKAGE / THERMOSTAT REPLACE INJ E CTOR SPARE PARTS LIST Part Number Description Used on... -
Page 14: Service Information
DECLARATION All Lincat products capable of burning gaseous fuels, satisfy the requirements of Gas Appliance Regulations 2016/ 4 2 6. GUARANTEE This unit carries a comprehensive UK mainland warranty. The guarantee is in addition to, and does not diminish your statutory or legal rights. Contact...
