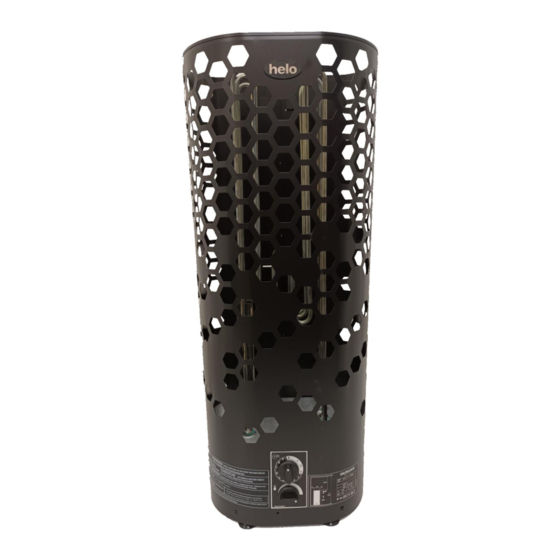

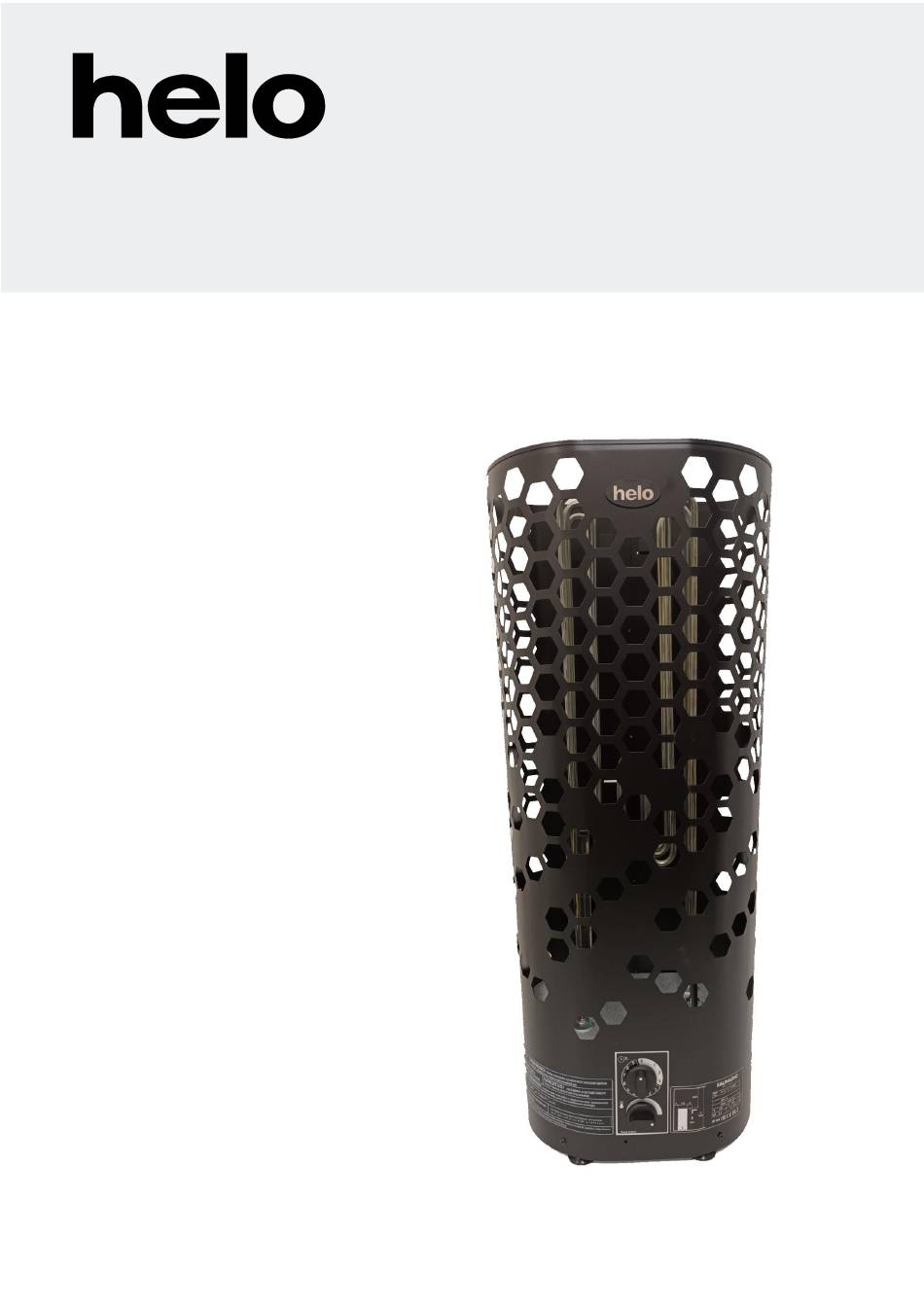

- Page 1 The genuine Finnish sauna Product Manual Laine STJ ELECTRIC SAUNA HEATER 0418 – 6 – 171809 0418 – 8 – 171809 0418 – 9 – 171809 314 SKDT 1-3 A...
-
Page 2: Table Of Contents
Main connection Electric heating toggle 2.10 Location the connection box for connection cable in the sauna room 2.11 Wiring diagram 3. Spare parts for Laine STJ 4. ROHS Instructions for environmental protection Images and table Image 1 Sauna room ventilation... -
Page 3: Manual For Sauna Heater
Product Manual Laine STJ Manual for sauna heater 1.1 Check before taking a sauna bath 1. The sauna room is suitable for taking a sauna bath. 2. The door and the window are closed. 3. The sauna heater is topped with stones that comply with the manufacturer's recommendations, the heating elements are covered with stones, and the stones are piled sparsely. -
Page 4: Recommended Sauna Room Ventilation
Product Manual Laine STJ 2. Recommended sauna room ventilation 1000 mm 500 mm Image 1 Sauna room ventilation 1. Sauna room 3. Electric sauna heater 5. Exhaust flue or channel 2. Washroom 4. Exhaust valve 6. Door to the sauna room 7. -
Page 5: Sauna Heater Stones
Product Manual Laine STJ 2.2 Sauna heater stones Quality stones meet the following requirements: Sauna stones should withstand heat and heat variation caused by vaporisation of the water thrown on the stones. Stones should be rinsed before use in order to avoid odour and dust. -
Page 6: Sauna Heater Controls
Product Manual Laine STJ 2.3 Sauna heater controls 2.3.1 Timer switch The sauna heater is controlled by operating a 12-hour timer with three operating zones. The timer is set by twisting the knob clockwise until the desired operating zone is reached. When operating, the timer gradually travels counter-clockwise towards the zero position. -
Page 7: Preparing For Sauna Heater Installation
Product Manual Laine STJ 2.6 Preparing for sauna heater installation Check the following before installing the sauna heater: 1. The ratio of the heater's input (kW) and the sauna room's volume (m ). Volume/input recommendations are presented in Table 1 on page 8. The minimum and maximum volumes must not be exceeded. -
Page 8: Main Connection
Product Manual Laine STJ Power Saunaroom Minimum distance to Stone Volume Side wall In front of m³ Back surface Approx. 5 – 9 8 – 12 9 - 13 Table 1 Safety clearances distances, minimum dimensions (mm) 2.8 Main connection The sauna heater must be connected to the mains by a qualified electrician and in compliance with current regulations. -
Page 9: Electric Heating Toggle
Product Manual Laine STJ 2.9 Electric heating toggle Electric heating toggle applies to homes with an electric heating system. Sauna heater has connections (marked N - 55) for controlling the electric heating toggle. Connectors N - 55 and the heating elements are simultaneously live (230V). -
Page 10: Wiring Diagram
Product Manual Laine STJ 2.11 Wiring diagram Teho, Effekt Lämpövastukset, Värmeelement, Tennid, Heating elements, Input, Potencia Heizeelement, Resistores Térmicos, Éléments chauffants, Leistung, Moc ТЭНы Elementy grzewcze, Vöimsus,Wejscie Puissance 230V SEPC 242 SEPC 243 SEPC 244 2000W 2670W 3000W 1,2,3 1,2,3... -
Page 11: Spare Parts For Laine Stj
SEPC 244 3000W/230V Screw SP7513002 M5 x 10 Table 3. Spare parts for Laine STJ 4. ROHS Instructions for environmental protection This product must not be disposed with normal household waste at the end of its life cycle. Instead, it should be delivered to a collecting place for the recycling of electrical and electronic devices.
