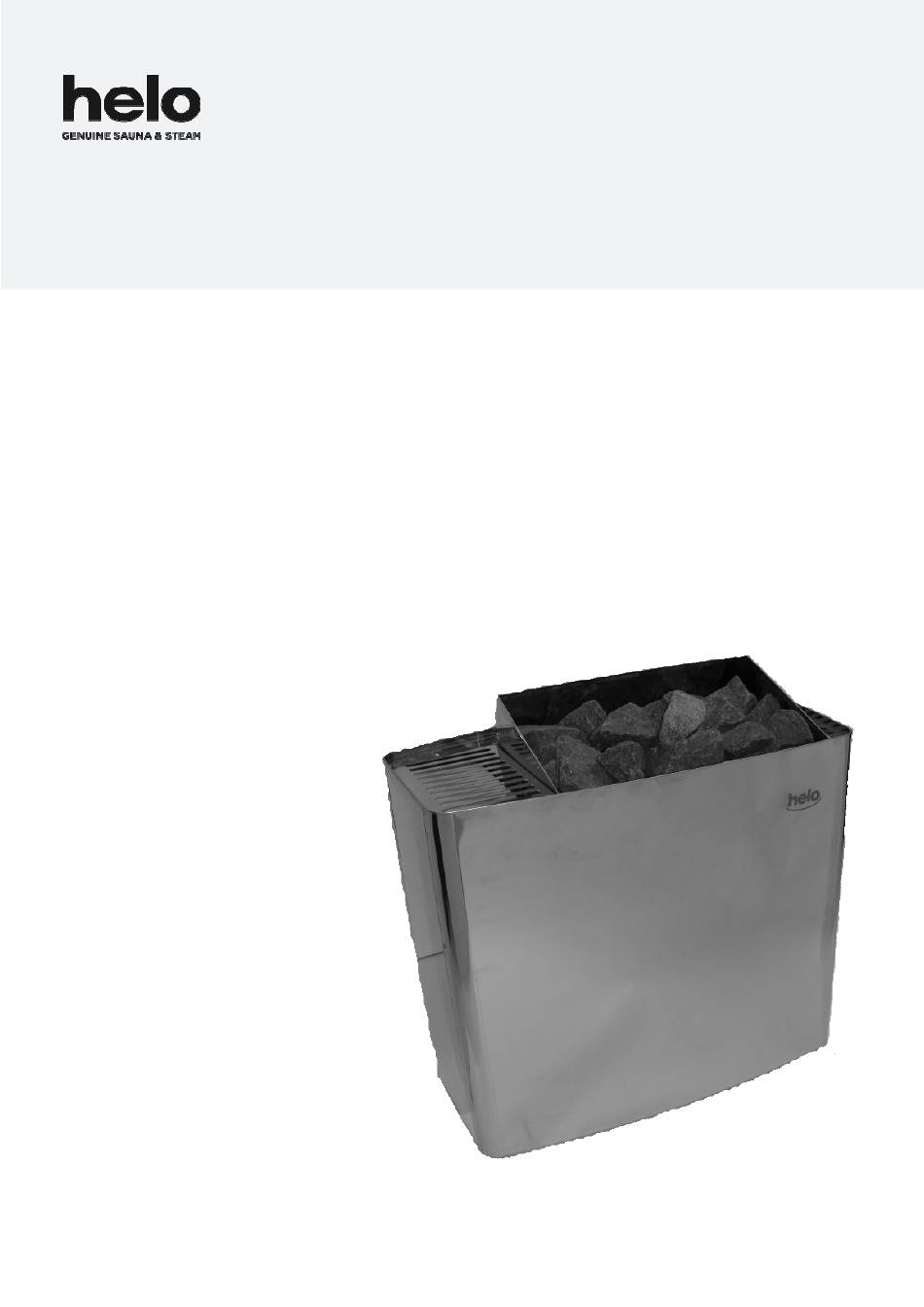

Instructions for installation and use LUMI D
ELECTRIC SAUNA HEATER:
1707-45-0405
1707-70-0405
1707-90-0405
CONTACTOR BOXES:
WE 3
400V-415V max. 9 kW
WE 4-1
230V-240V max. 6,8 kW
WE 4-3
230V 3~ max. 9 kW
CONTROL PANELS:
1601-12 (RA 12 Digi II)
1601-13 (RA 13 Digi I)
1601-16 (RA 16 Easy)
1601-18 (RA 18 Midi)
7014249
314 SKSG 17 A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Helo LUMI D
Summary of Contents for Helo LUMI D
- Page 1 Instructions for installation and use LUMI D ELECTRIC SAUNA HEATER: 1707-45-0405 1707-70-0405 1707-90-0405 CONTACTOR BOXES: WE 3 400V-415V max. 9 kW WE 4-1 230V-240V max. 6,8 kW WE 4-3 230V 3~ max. 9 kW CONTROL PANELS: 1601-12 (RA 12 Digi II)
-
Page 2: Table Of Contents
Instructions for installation and use LUMI D Contents 1. Quick instructions for use of the sauna heater 1.1. Check before taking a sauna bath 1.2. Operation of the sauna heater controls 2. Information for users Sauna room Recommended sauna room ventilation... -
Page 3: Quick Instructions For Use Of The Sauna Heater
Instructions for installation and use LUMI D 1. Quick instructions for use of the sauna heater 1.1. Check before taking a sauna bath The sauna room is suitable for taking a sauna bath. The door and the window are closed. -
Page 4: If The Sauna Heater Will Not Heat Up
Instructions for installation and use LUMI D Sauna stones should be piled sparsely in order to enhance ventilation between the stones. Do not bend the heating elements together or against the frame. Rearrange the stones regularly (at least once a year) and replace small and broken stones with new, larger stones. -
Page 5: Installation
Instructions for installation and use LUMI D 3.2. Installation Follow the safety clearance specifications on page 8 when installing the sauna heater. Thin panel is not a suitable mounting base. The mounting base must be reinforced with timber behind the panel. The minimum clearances specified on page 8 must be followed also in case the sauna room wall materials are incombustible. -
Page 6: Stages Of Installation
Instructions for installation and use LUMI D 3.4 Stages of installation Step 1: Mount the supporting brackets to the wall with the provided screws. Check the safety clearance. Step 2: Bend the locking tabs (1) on the heaters bottom plate downwards on the side which will become the front side of the heater. -
Page 7: Main Connection
Instructions for installation and use LUMI D Step 5: Install the steam guide. Place the steam guide so that the back edge is against the wall. Press the steam guide to the locking claws shown in the illustration. Step 6: An installed steam guide. -
Page 8: Sauna Heater Safety Clearances
Instructions for installation and use LUMI D 3.6. Sauna heater safety clearances Sensor Sensor OLET 19 min. mm min. mm 40 mm * The specified clearances are minimum clearances except for *), which marks an absolute measurement. The sensor is fitted on the center line of the heater. -
Page 9: Locating The Connecting Box For Connection Cable In The Sauna Room
Instructions for installation and use LUMI D 3.7. Locating the connecting box for connection cable in the sauna room KIUAS Sauna heater Image 4 Location for the connection box A = Specified minimum safety clearance 1. Recommended location for the connection box 2. -
Page 10: Wiring Diagrams
Instructions for installation and use LUMI D 3.8. Wiring diagrams Terminal block Terminal block Limiter Limiter Contactor box Contactor box Sensor cable Sensor cable 1. Blue 1. Blue 2. White 2. White 3. Red 3. Red Control panel 4. Yellow 4. -
Page 11: Heater Wiring Diagram
Instructions for installation and use LUMI D 3.9. Heater wiring diagram Teho, Effekt, Input, Lämpövastukset, Värmeelement, Tennid, Heating 230V Potencia, Leistung, elements, Heizeelement, Resistores Térmicos Vöimsus SEPC 195 SEPC 196 SEPC 197 1500W 2267W 3000W 1,2,3 1,2,3 1,2,3 230V - 240V 1N~ / 2~ Max. -
Page 12: Image 7 Principal Wiring
Instructions for installation and use LUMI D Principal wiring Sensor Sauna heater Contactor box N L1 / L1 L2 L1 L2 L3 N L1 L2 L3 Power input 230V – 240V 1N~ / 2~ Control panel 230V 3~ 400V – 415V 3N~... -
Page 13: Spare Parts For The Lumi Electric Sauna Heater
Instructions for installation and use LUMI D 4. Spare parts for the LUMI electric sauna heater Part Product number Product name Lumi 45 D Lumi 70 D Lumi 90 D 4071002 Basic grate 7712000 Cable clamp 7812550 Mains connector NLWD 1-1... -
Page 14: Rohs
Instructions for installation and use LUMI D 5. ROHS Y m p är ist ön su o je lu u n liit t yvi ä oh j e it a A n visn i n ga r f ör m ilj ösk yd d Tä...
