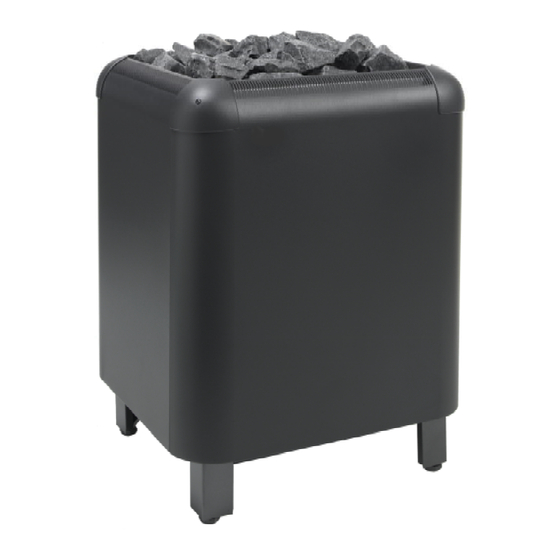

User and installation manual LAAVA and SKLE
ELECTRIC SAUNA HEATER
1105 – 9011
Laava
1105 – 10511
Laava
1105 – 12011
Laava
1105 – 15011
Laava
1105 – 901
SKLE
1105 – 1051
SKLE
1105 – 1201
SKLE
1105 – 1501
SKLE
CONTACTOR BOX
2005 – 40
WE 40
CONTROL PANELS
1601 – 41
Pure
1601 – 42
Elite
Pure
Laava
SKLE
Elite
SKLE 83-3 A
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Helo Laava 1105-9011
Summary of Contents for Helo Laava 1105-9011
- Page 1 User and installation manual LAAVA and SKLE ELECTRIC SAUNA HEATER 1105 – 9011 Laava 1105 – 10511 Laava Laava 1105 – 12011 Laava 1105 – 15011 Laava 1105 – 901 SKLE 1105 – 1051 SKLE 1105 – 1201 SKLE 1105 – 1501 SKLE CONTACTOR BOX 2005 –...
- Page 2 User and installation manual LAAVA and SKLE Contents Page 1. Warnings 1.1. Check before taking a sauna bath 1.2. Sauna room 1.3. Operation of the sauna heater controls 1.4. Operation of the sauna heater controls 2. Preparing for sauna heater installation Installation Safety clearances for sauna heaters 1105 –...
- Page 3 User and installation manual LAAVA and SKLE 1. Warnings 1.1. Check before taking a sauna bath The sauna room is suitable for taking a sauna bath. The door and the window are closed. The sauna heater is topped with stones that comply with the manufacturer's recommendations, the heating elements are covered with stones, and the stones are piled sparsely.
- Page 4 User and installation manual LAAVA and SKLE 2. Preparing for sauna heater installation Check the following before installing the sauna heater. The ratio of the heater's input (kW) and the sauna room's volume (m ). Volume recommendations are presented in Tables 1 and page 5. The minimum and maximum volumes must not be exceeded. The height of the sauna room must be at least 1900 mm or 2100 mm depending on the heater power.
- Page 5 User and installation manual LAAVA and SKLE 2.2 Safety clearances for sauna heaters 1105 – XX (SKLE / Laava) 40 mm 50 mm 500 mm Figure 2. Alternative installation location of the OLET 31 sensor on a ceiling in the Figure 1.
- Page 6 User and installation manual LAAVA and SKLE 2.3 Connection of the sauna heater to the mains The sauna heater must be connected to the mains by a qualified electrician and in compliance with current regulations. The sauna heater is connected with a semi-permanent connection. Use H07RN-F (60245 IEC 66) cables or a corresponding type.
- Page 7 User and installation manual LAAVA and SKLE 2.8 Door switch The door switch refers to the switch on the sauna door. This switch complies with regulations. Public and private saunas must have a door switch, i.e. saunas where the heater can be switched on from outside the sauna, e.g. using an On/Off button or a similar method.
- Page 8 User and installation manual LAAVA and SKLE 2.10 Principle diagram Terminal block Limiter Contactor box WE 40 Sensor cable 1 Blue OLEA 103 2 White Sensor OLET 31 3 Red 4 Yellow Control panel Contactor box Pure WE 40 1 Yellow 2 Green OLEA 103 3 Red...
- Page 9 User and installation manual LAAVA and SKLE 2.11 Locating the connecting box for the connection cable in the sauna room A = Specified minimum safety clearance, see table 1 1. Recommended location for the connecting box 2. Silumin box recommended in this area. 3.
- Page 10 User and installation manual LAAVA and SKLE 2.13 Recommended sauna room ventilation 1000 mm 500 mm Figure. 8 Rekommended sauna room ventilation 1. Sauna room 3. Electric sauna heater 5. Exhaust flue or channel 2. Washroom 4. Exhaust valve 6. Door to the sauna room 7.
- Page 11 User and installation manual LAAVA and SKLE 2.15 Heating the sauna Before turning the sauna heater on, make sure the sauna room is suitable for taking a sauna bath. When heated for the first time, the sauna heater may emit some odour. If you detect any odour while the sauna heater warms up, disconnect the sauna heater briefly, and air the room.
