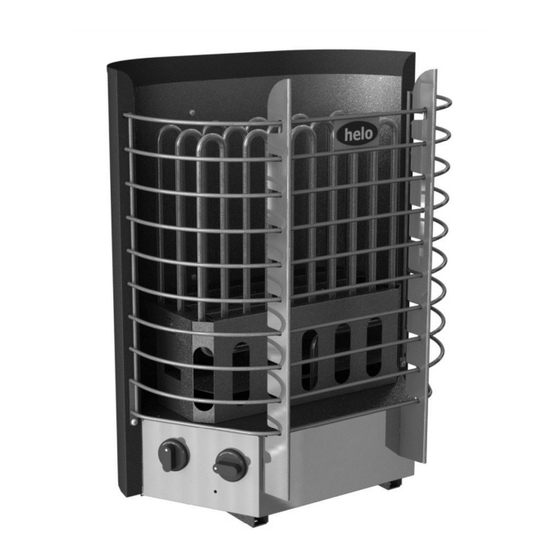

Product Manual RING WALL STJ
ELECTRIC SAUNA HEATER
1716-450-171809
1716-600-171809
1716-800-171809
314 SKSR 11-3 A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RING WALL STJ and is the answer not in the manual?

Questions and answers

Summary of Contents for Helo RING WALL STJ

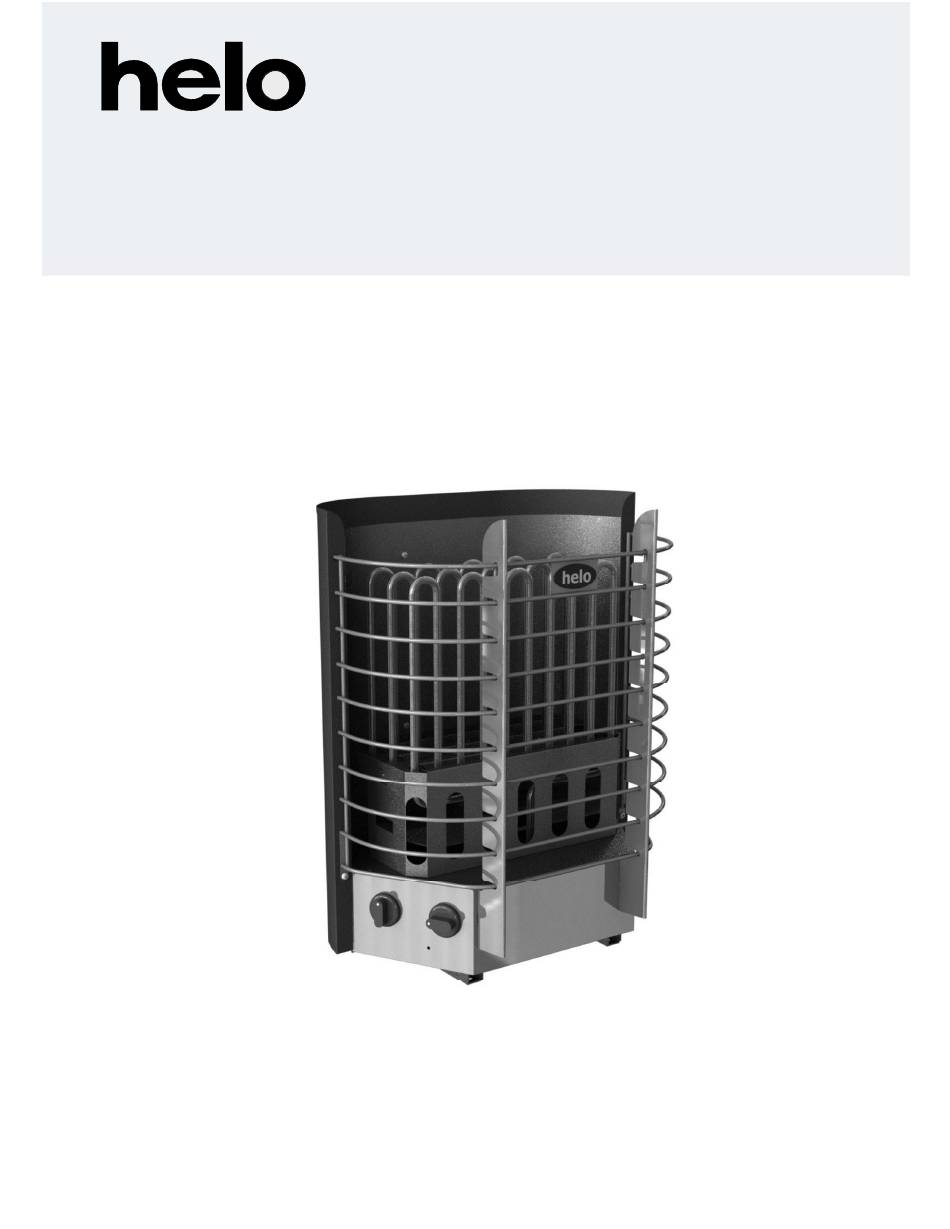

  • Page 1 REWARD YOURSELF Product Manual RING WALL STJ ELECTRIC SAUNA HEATER 1716-450-171809 1716-600-171809 1716-800-171809 314 SKSR 11-3 A...
  • Page 2: Table Of Contents

    Changing the handedness of the heater Main connection Electric heating toggle Location the connection box for connection cable in the sauna room Wiring diagram 4. Spare parts for Ring Wall STJ-electric sauna heater 5. ROHS Images and table Image 1 Sauna room ventilation...
  • Page 3: Quick Instructions For Use Of The Sauna Heater

    Product Manual Ring Wall STJ 1. Quick instructions for use of the sauna heater 1.1 Check before taking a sauna bath The sauna room is suitable for taking a sauna bath. The door and the window are closed. The sauna heater is topped with stones that comply with the manufacturer's recommendations, the heating elements are covered with stones, and the stones are piled sparsely.
  • Page 4: Recommended Sauna Room Ventilation

    Product Manual Ring Wall STJ 2.2 Recommended sauna room ventilation 1000 mm 500 mm Image 1 Sauna room ventilation 1. Sauna room 3. Electric sauna heater 5. Exhaust flue or channel 2. Washroom 4. Exhaust valve 6. Door to the sauna room 7.
  • Page 5: Sauna Heater Stones

    Product Manual Ring Wall STJ 2.4 Sauna heater stones Quality stones meet the following requirements: Sauna stones should withstand heat and heat variation caused by vaporisation of the water thrown on the stones. Stones should be rinsed before use in order to avoid odour and dust.
  • Page 6: Sauna Heater Controls

    Product Manual Ring Wall STJ 2.5 Sauna heater controls 2.5.1 Timer switch The sauna heater is controlled by operating a 12-hour timer with three operating zones. The timer is set by twisting the knob clockwise until the desired operating zone is reached. When operating, the timer gradually travels counter-clockwise towards the zero position.
  • Page 7: Electric Heating Toggle

    Product Manual Ring Wall STJ 2.6 Electric heating toggle Electric heating toggle applies to homes with an electric heating system. The sauna heater thermostat also controls the heating toggle. In other words, home heating turns on once the sauna ther- mostat cuts power off the sauna heater.
  • Page 8: Sauna Heaters Installation

    Product Manual Ring Wall STJ 3.2.1 Sauna heaters installation 1. Prepare installation holes for the heater wall mount, Note the necessary safety distance, see table 1 on page 9. Screw in the upper bolts, leave the head ca. 2mm off the wall.
  • Page 9 Product Manual Ring Wall STJ Minimum distances to the. Mounting bracket (mm) Screws 6 x 40 (2 pcs.) Screws 6 x 16 (2 pcs.) (mm) (mm) Image 2 Safety clearances Minimum clear- Amount Effect Sauna room Heaters minimum clearance ance...
  • Page 10: Changing The Handedness Of The Heater

    Product Manual Ring Wall STJ 3.2.2 Changing the handedness of the heater By default, the thermostat and the timer switch are located on the left hand side of the heater when viewed from the front. They can be moved to the other side, if necessary.
  • Page 11: Electric Heating Toggle

    Product Manual Ring Wall STJ Heater connection Fuse Heater connection Fuse Heater connection Fuse cable H07RN-F/ cable H07RN-F/ cable H07RN-F/ Effect 60245 IEC 66 60245 IEC 66 60245 IEC 66 400-415V 3N~ 230V 3~ 230-240V 1N~ / 2~ 5 x 1,5...
  • Page 12: Wiring Diagram

    Product Manual Ring Wall STJ 3.6 Wiring diagram Teho, Effekt Heating elements, Input, Potencia Leistung, Moc Elementy grzewcze, 230V Puissance SEPC 63 SEPC 64 SEPC 65 1500W 2000W 2670W 1,2,3 1,2,3 1,2,3 B1 B2 B3 A1 A2 A3 N 55...
  • Page 13: Spare Parts For Ring Wall Stj-Electric Sauna Heater

    Product Manual Ring Wall STJ 4. Spare parts for Ring Wall STJ-electric sauna heater Product Parts Product title SKSR STJ 450 SKSR STJ 600 SKSR STJ 800 number 4071153 Basic grate 5509053 Clock OYKF 1 Thermostat 5408013 OLCH 1 Mains connector...
  • Page 14: Rohs

    Product Manual Ring Wall STJ 5. ROHS mukana, vaan se on toimitettava Symboli tuotteessa, handboken eller gen refererar till detta. ngscentralen Instructions for environmental protection Hinweise zum Umweltschutz This product must not be disposed with Dieses Produkt darf am Ende seiner Lebens-...
