Summary of Contents for Helo Hanko STJ

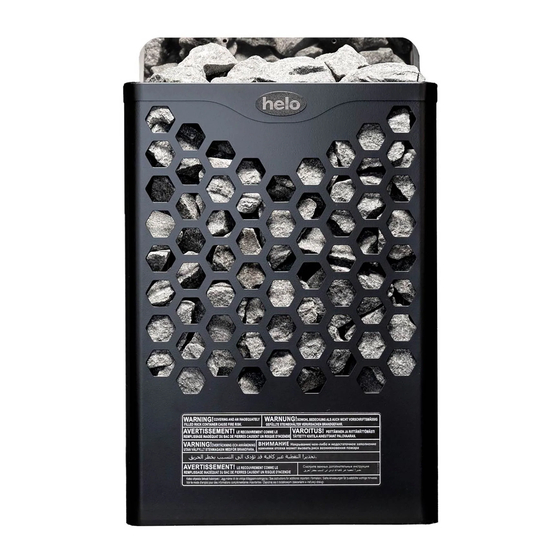

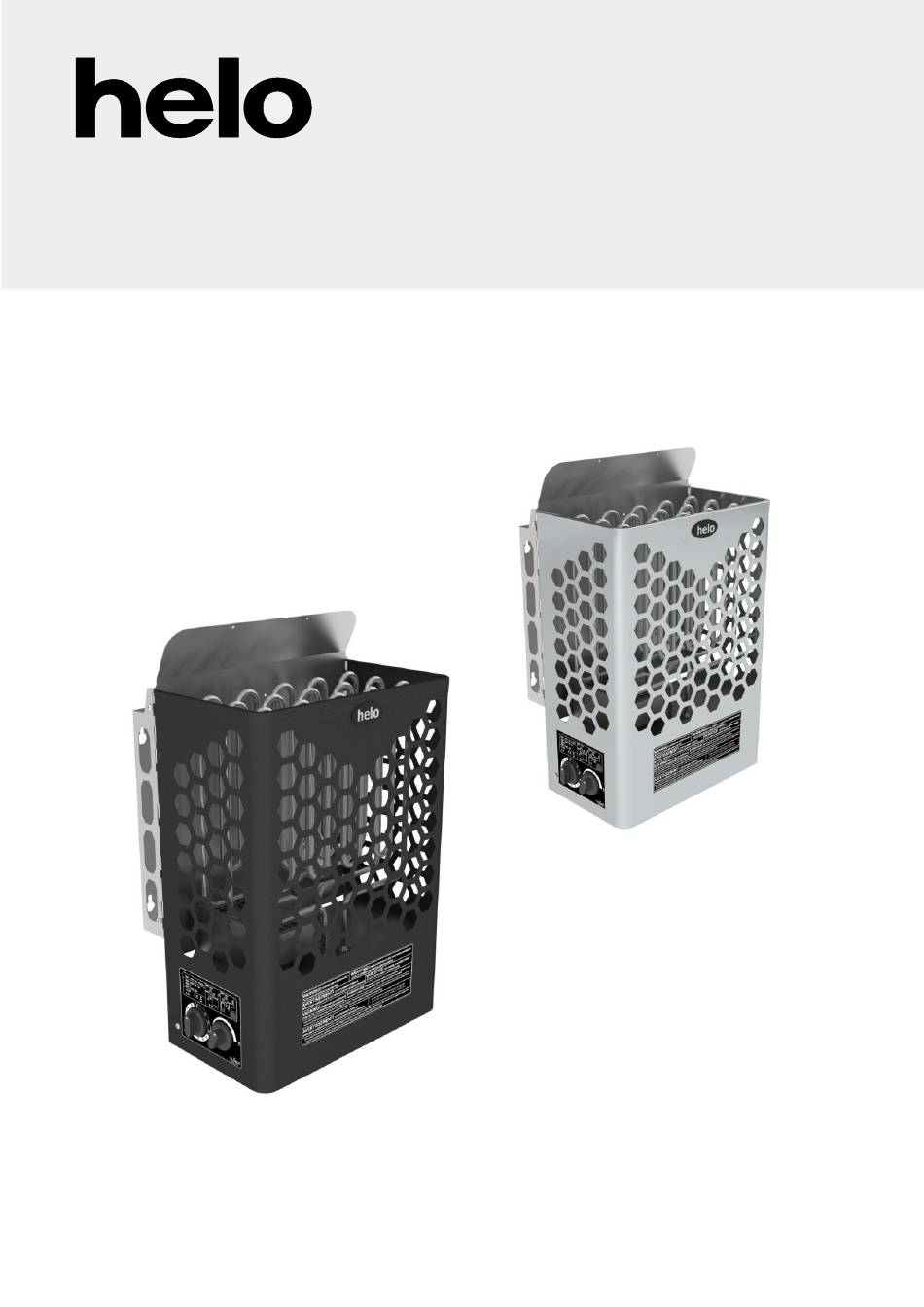

- Page 1 Finnish Sauna P rf ction Product Manual Hanko STJ MMMMon ELECTRIC SAUNA HEATER: 1702-60-171809 1702-80-171809 314 SKSB 1-3...
-
Page 2: Table Of Contents
Electric heating toggle 2.10 Location for the connection box 2.11 Moving the heater controls from one side to the other 2.12 Wiring diagram 3. Spare parts for the Hanko STJ-electric sauna heater 4. ROHS Images and Tables Image 1 Recommended sauna room ventilation... -
Page 3: Instructions For Use Of The Sauna Heater
Product Manual Hanko STJ Instructions for use of the sauna heater 1.1 Check before taking a sauna bath 1. The sauna room is suitable for taking a sauna bath. 2. The door and the window are closed. 3. The sauna heater is topped with stones that comply with the manufacturer's recommendations, the heating elements are covered with stones, and the stones are piled sparsely. -
Page 4: Recommended Sauna Room Ventilation
Product Manual Hanko STJ 2. Recommended sauna room ventilation 1000 mm 500 mm Image 1 Recommended sauna room ventilation 1. Sauna room 3. Electric sauna heater 5. Exhaust flue or channel 2. Washroom 4. Exhaust valve 6. Door to the sauna room 7. -
Page 5: Sauna Heater Stone
Product Manual Hanko STJ 2.2 Sauna heater stone Quality stones meet the following requirements: Sauna stones should withstand heat and heat variation caused by vaporisation of the water thrown on the stones. Stones should be rinsed before use in order to avoid odour and dust. -
Page 6: Sauna Heater Controls
Product Manual Hanko STJ 2.3 Sauna heater controls 2.3.1 Timer The sauna heater is controlled by operating a 12-hour timer with three operating zones. The timer is set by twisting the knob clockwise until the desired operating zone is reached. When operating, the timer gradually travels counter-clockwise towards the zero position. -
Page 7: Preparing For Sauna Heater Installation
Product Manual Hanko STJ 2.6 Preparing for sauna heater installation Check the following before installing the sauna heater: 1. The ratio of the heater's input (kW) and the sauna room's volume (m ). Volume/input recommendations are presented in Table 1 on page 8. The minimum and maximum volumes must not be exceeded. -
Page 8: Sauna Heater Safety Clearances
Product Manual Hanko STJ 2.7.1 Sauna heater safety clearances Minimum. mm Minimum. mm Minimium distances to the mounting bracket (mm) Drill Ø 3,5 mm Screws 6 x 40 (2 pcs) Image 2 Safety distances, dimensions minimum dimensions (mm) Effect Saunaroom... -
Page 9: Connection Of The Sauna Heater To The Mains
Product Manual Hanko STJ 2.8 Connection of the sauna heater to the mains The sauna heater must be connected to the mains by a qualified electrician and in compliance with current regulations. Sauna heater is connected with a semi-permanent connection. Use H07RN-F (60245 IEC 66) cables or a corresponding type. -
Page 10: Location For The Connection Box
Product Manual Hanko STJ Heater image 3 Locating the connection box for connection cable in the sauna room 2.10 Location for the connection box A = Specified minimum safety clearance 1. Recommended location for the connection box 2. Silumin box recommended in this area. -
Page 11: Wiring Diagram
Product Manual Hanko STJ 2.12 Wiring diagram Lämpövastukset, Värmeelement, Teho, Vöimsus Heating element, Heizeelement, Tennid Effekt, Input, 230V Leistung SEPC 6 SEPC 65 2000W 2670W 1,2,3 1,2,3 B1 B2 B3 A1 A2 A3 N 55 1. Syöttö / Nätet / Stromnetz / Power input. / Puissance absorbée / Vermogensingang / Entrada de Входное... -
Page 12: Spare Parts For The Hanko Stj-Electric Sauna Heater
Product Manual Hanko STJ 3. Spare parts for the Hanko STJ-electric sauna heater Part Product number Product title Hanko 60 STJ Hanko 80 STJ Clock SP5509053 OYKF 1 Thermostat SP4321015 OLHC 2 Mains connector SP7812550 NLWD 1-1 Cable clamp SP7712000...
