INSTALLATION MANUAL
Parts List
1
Driver / left side bar
1
Passenger / right side bar
2
Mounting bracket, front
2
Mounting bracket, rear
8
Hex bolt, M10 x 25mm
16
Hex bolt, M10 x 30mm
8
Clip nut, M10
32
Flat washer, M10
8
Nylock nut, M10
Torque Specifications
M6 bolt
3 ft.-lbs.
M8 bolt
7 ft.-lbs.
M10 bolt
16 ft.-lbs.
M12 bolt
28 ft.-lbs.
1/4" bolt
3 ft.-lbs.
5/16" bolt
7 ft.-lbs.
3/8" bolt
16 ft.-lbs.
7/16" bolt
20 ft.-lbs.
1/2" bolt
28 ft.-lbs.
Level of Difficulty
Easy

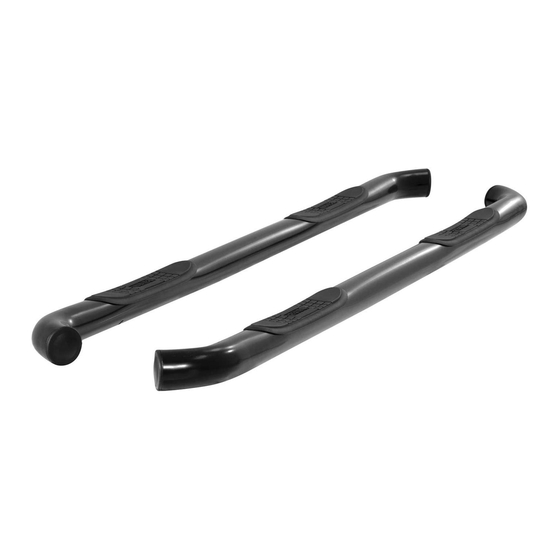

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For gloss black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • 203039-INS-RA • 800.798.0813 • NEED ASSISTANCE?
203039
Scan
for helpful
install tips
Front
• ARIESAUTOMOTIVE.COM
Rear
