Aries 205031-2 Installation Manual

INSTALLATION MANUAL
Parts List
1 Driver / left side bar
1 Passenger / right side bar
1 Driver / left mounting bracket, front
1 Passenger / right
mounting bracket, front
1 Driver / left inner support
bracket, front - for 4WD vehicles
with skid plate
1 Driver / left inner support
bracket, front - for 2WD and
4WD vehicles without skid plate
1 Passenger / right
inner support bracket, All
2 Driver / left outer support
bracket, front and rear
2 Passenger / right outer support
bracket, front and rear
1 Driver / left mounting bracket, rear
1 Passenger / right
mounting bracket, rear
2 'L' inner support bracket, rear
6 Hex bolt, 6mm x 25mm
2 Hex bolt, 6mm x 30mm
16 Flat washer, 6mm x 18mm
8 Nylock nut, 6mm
4 Bolt plate, long, 10mm x 35mm -
only for rear mounting brackets
2 Bolt plate, short, 10mm x 35mm -
only for front inner support brackets
12 Hex bolt, 10mm x 30mm
2 Hex bolt, 10mm x 35mm
1 Hex bolt, 10mm x 40mm -
only for 4WD vehicles
8 Flat washer, 10mm x 25mm
16 Flat washer, 10mm x 30mm
14 Lock washer, 10mm
6 Hex nut, 10mm
5 Nylock nut, 10mm
4 Bolt plate, 12mm x 40mm - only
for front & rear outer support brkts
2 Hex bolt, 12mm x 35mm
4 Flat washer, 12mm x 25mm
4 Flat washer, 12mm x 30mm
6 Lock washer, 12mm
6 Hex nut, 12mm
Level of Difficulty
Easy

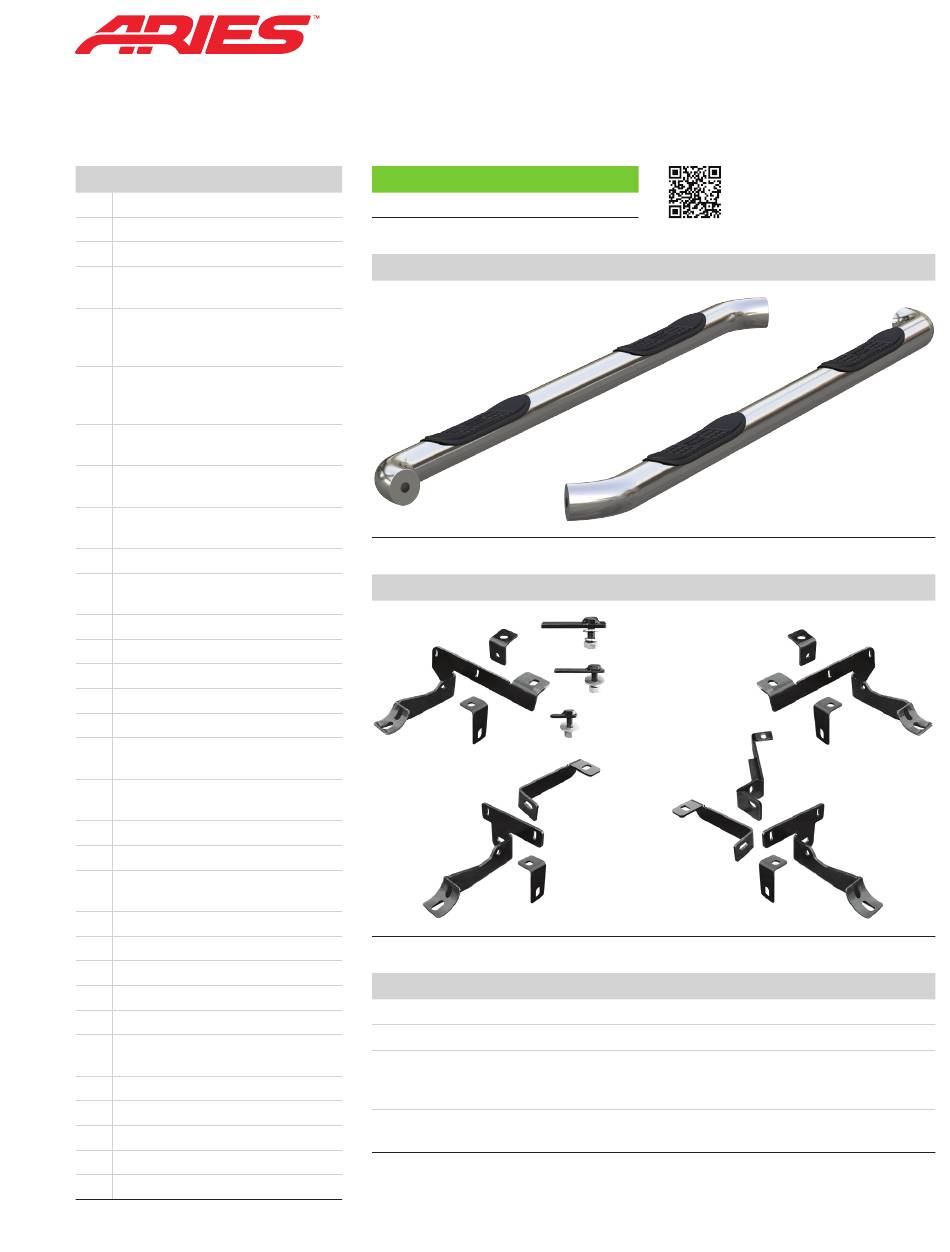

Product Image
Brackets and Hardware
'L' support
brkt
Passenger
rear
mount
brkt
Passenger outer
support brkt
Passenger
front
mount
brkt
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For stainless steel and aluminum, polish may be used to clear small scratches
and scuffs on the finish. Mild soap may be used also to clean the product.
PAGE 1 • 205031-2-INS-RB • 877.287.8634 • NEED ASSISTANCE?
Front
Bolt plate,
12mm x 40mm
Bolt plate, long
10mm x 35mm
Bolt plate, short
10mm x 35mm
Driver front inner
(with skid plate)
Passenger front
inner support
brkt
Driver front inner
support brkt
(no skid plate)
Passenger outer
support brkt
205031-2
Scan
for helpful
install tips
'L' support
brkt
Driver outer
support brkt
support brkt
Driver front
Driver outer
support brkt
• ARIESAUTOMOTIVE.COM
Rear
Driver rear
mount
brkt
mount
brkt
