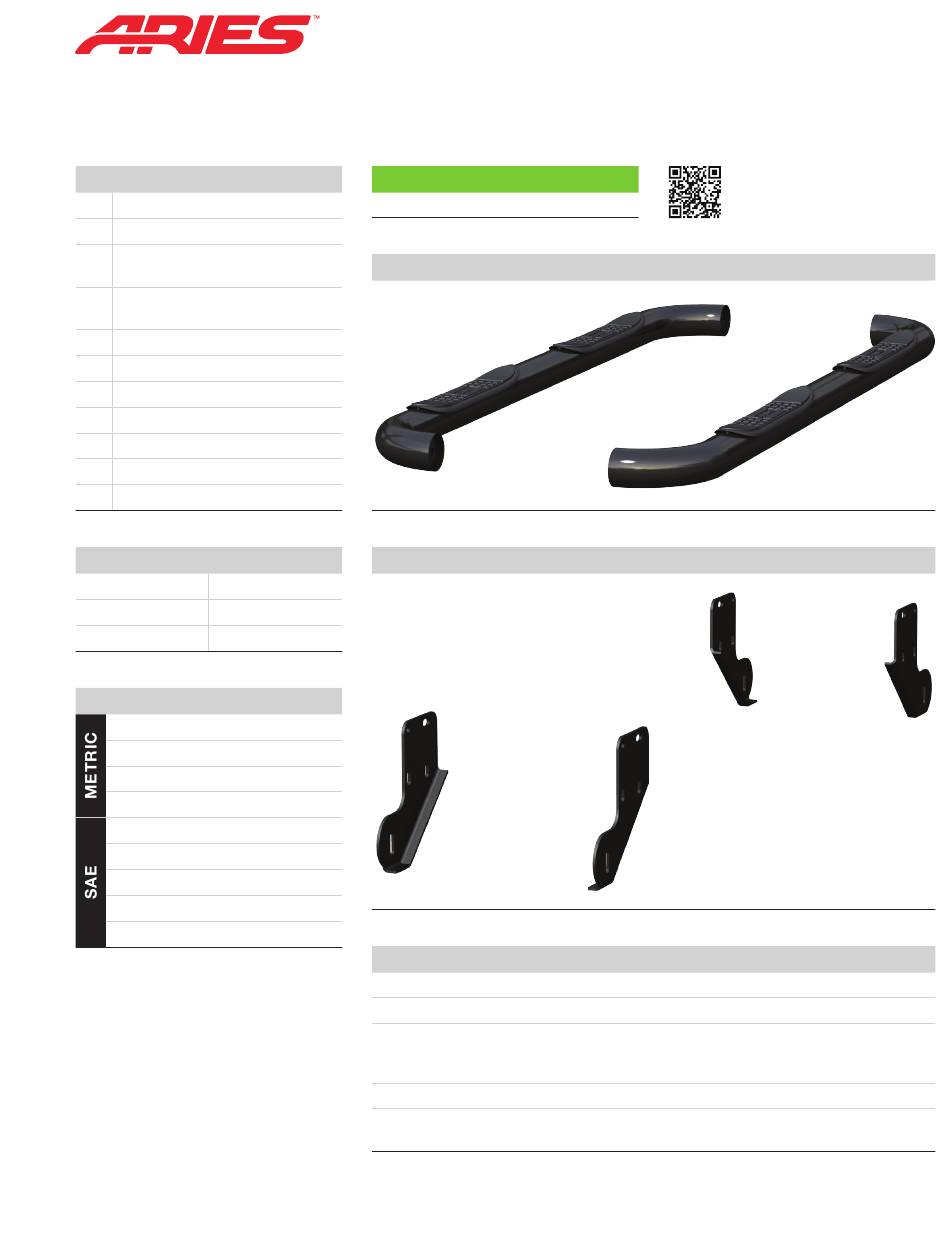

Aries 203025 Installation Manual

INSTALLATION MANUAL

Parts List

1 Driver / left side bar
1 Passenger / right side bar
2 Driver side front / passenger
side rear mounting bracket
2 Driver side rear / passenger side
front mounting bracket
14 Hex bolt, M10 - 1.50 x 35mm
22 Flat washer, M10
14 Lock washer, M10
6 Clip-nut, M10
4 Hex bolt, M12 - 1.75 x 50mm
4 Flat washer, M12
4 Lock washer, M12

Tools Required

Torque wrench Socket, 16mm
Ratchet Socket, 18mm
Level Wrench, 16mm

Torque Specifications

M6 bolt 3 ft.-lbs.
M8 bolt 7 ft.-lbs.
M10 bolt 16 ft.-lbs.
M12 bolt 28 ft.-lbs.
1/4" bolt 3 ft.-lbs.
5/16" bolt 7 ft.-lbs.
3/8" bolt 16 ft.-lbs.
7/16" bolt 20 ft.-lbs.
1/2" bolt 28 ft.-lbs.

Level of Difficulty

Easy

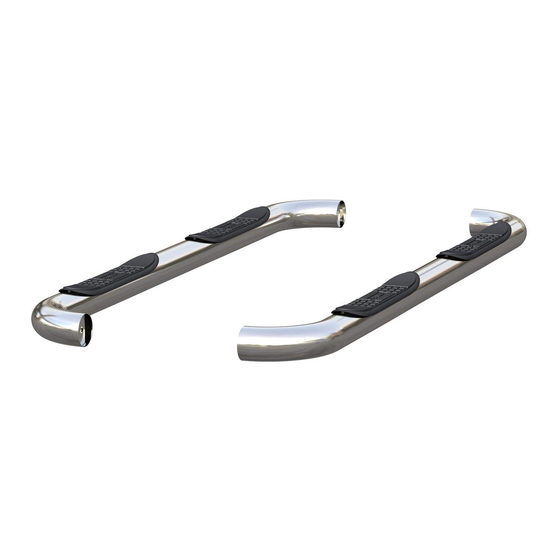

Product Image
Brackets
Passenger side
front

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For gloss black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • 203025-INS-RA • 800.798.0813 • NEED ASSISTANCE?
203025
Scan
for helpful
install tips
Front
Passenger side
rear
Driver side
front
• ARIESAUTOMOTIVE.COM
Rear
Driver side
rear
