Aries 203039 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy
Parts List
1 Driver / left side bar
1 Passenger / right side bar
1 Driver / left side front bracket
1 Driver / left side rear bracket
1 Passenger / rear side front bracket
1 Passenger / rear side rear bracket
8 Hex bolt, M8
8 Flat washer, M8
8 Lock washer, M8
8 Clip nut, M10
16 Hex bolt, M10
16 Flat washer M10 - large
8 Flat washer M10 - small
16 Lock washer, M10
8 Hex nut, M10
Tools Required
Ratchet Socket set
Torque wrench Wrench set
Level --
Torque Specifications
M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM

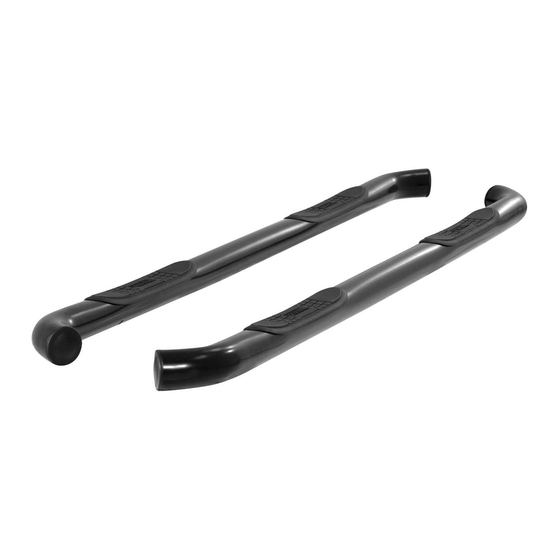

Product Photo
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the last page of this manual for troubleshooting,
warranty and product registration information.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
Product Registration
CURT Group stands behind our products with industry leading warranties.
You can help us continue to improve our product line and help us understand
your needs by registering your purchase by visiting:
warranty.curtgroup.com/surveys
At CURT Group, customer is king. We value your feedback and we use that information to make
improvements on our products. Please, take a minute and let us know how we are doing.
