INSTALLATION MANUAL
Parts List
1
Driver / left side bar
1
Passenger / right side bar
2
Mounting bracket, front
2
Mounting bracket, rear
8
Clip on nut, 10mm
8
Button head bolts, 10mm x 25mm
8
Lock washer, 10mm
32
Flat washer, 10mm
8
Nylock nut, 10mm
16
Hex bolt, 10mm x 30mm
Tools Required
Rachet
Tape measure
Socket, 17mm
Wrench, 17mm
Level
Hex bit, 6mm
Level of Difficulty
Easy

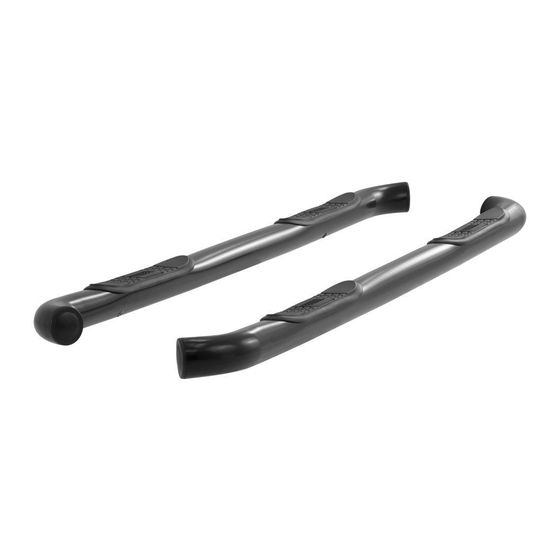

Product Image
Brackets
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may
contain abrasives that could damage the finish.
For gloss black finishes, mild soap may be used to clean the product.
PAGE 1 • 203015-INS-RB • 800.798.0813 • NEED ASSISTANCE?
203015
Scan
for helpful
install tips
Front
• ARIESAUTOMOTIVE.COM
Rear
Advertisement
Table of Contents
Related Manuals for Aries 203015
Summary of Contents for Aries 203015
- Page 1 Do not use any type of polish or wax that may contain abrasives that could damage the finish. For gloss black finishes, mild soap may be used to clean the product. • ARIESAUTOMOTIVE.COM PAGE 1 • 203015-INS-RB • 800.798.0813 • NEED ASSISTANCE?
- Page 2 Snug the hardware, but do not fully tighten. Step 4 Repeat steps 1 through 3 for installing the rear mounting bracket. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 203015-INS-RB • PAGE 2...
- Page 3 To protect your investment, see the 'Notes and Maintenance' section on the first page of this instruction manual. • ARIESAUTOMOTIVE.COM PAGE 3 • 203015-INS-RB • 800.798.0813 • NEED ASSISTANCE?
