Aries 203046 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy

Parts List

1 Driver / left sidebar
1 Passenger / right sidebar
2 Front mounting bracket
4 Center / rear mounting bracket
12 Hex bolt, 10-1.5mm x 25mm
12 Lock washer, 10mm
12 Flat washer, 10mm x 27mm x 3mm
12 Combo bolt, 8-1.25mm x 25mm

Tools Required

Ratchet Wrench set
Socket set Level
Torque wrench --

Torque Specifications*

6 mm bolt 3 ft-lbs.
8mm bolt 7 ft-lbs.
10mm bolt 16 ft-lbs.
12mm bolt 28 ft-lbs.
Use above torque setting unless otherwise noted

Product Registration and Warranty

CURT Group stands behind our products
with industry-leading warranties. Provide
feedback and help us to improve our
products by registering your purchase at:
warranty.curtgroup.com/surveys
ARIESAUTOMOTIVE.COM

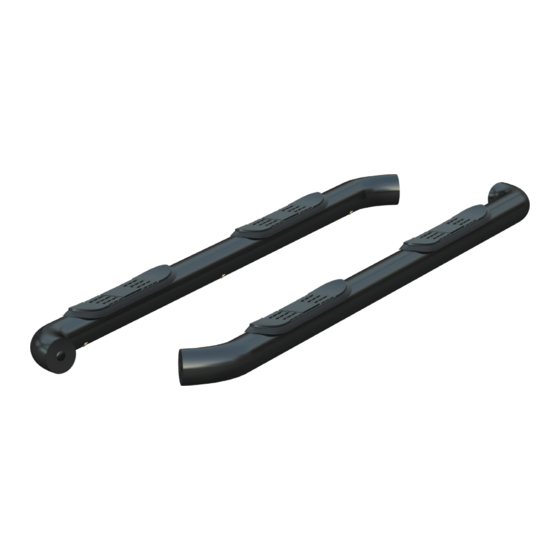

Product Photo
Brackets and Hardware
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.

Maintenance

To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
• NEED ASSISTANCE? • 877.287.8634
(4) Center / rear
mounting brackets
(2) Front
brackets
• 203046-INS-RA • PAGE 1
203046
