1999-10 FORD F250/350 SUP.DTY.REG CAB
PARTS LIST:
Qty
Description
1

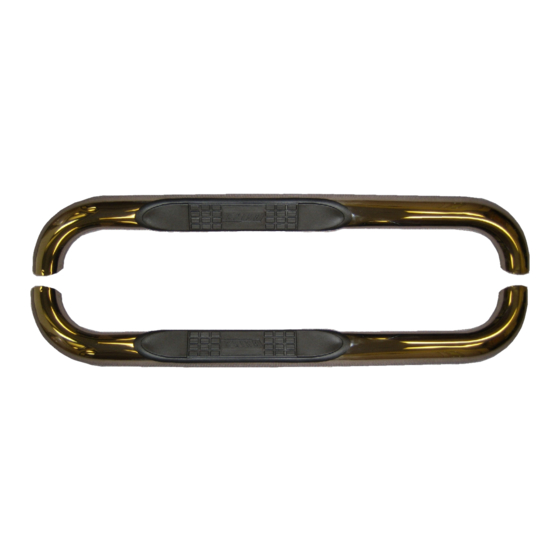

Driver/Left Side Bar
1
Passenger/Right Side Bar
1
Driver/Left Front Mounting Bracket
1
Passenger/Right Front Mounting Bracket
1
Driver/Left Rear Mounting Bracket
1
Passenger/ Rear Mounting Bracket
4
12mm x 50mm Hex Bolt
Front
Page 1 of 3
INSTALLATION INSTRUCTIONS
Passenger/Right
Side bar
Driver/Left side
Side bar
Driver Front
Mounting Brackets
Driver Rear
Mounting Brackets
203014 / 203014-2
Passenger Front
Mounting Brackets
Passenger Rear
Mounting Brackets
Qty
Description
4
12mm Flat Washer
4
12mm Lock Washer
4
10mm Clip Nuts
12
10mm x 30mm Hex Bolt
20
10mm x Flat Washer
12
10mm x Lock Washer
8
10mm x Hex Nut
1/13/2010
Advertisement
Related Manuals for Aries 203014
Summary of Contents for Aries 203014
- Page 1 INSTALLATION INSTRUCTIONS 203014 / 203014-2 1999-10 FORD F250/350 SUP.DTY.REG CAB PARTS LIST: Description Description Driver/Left Side Bar 12mm Flat Washer Passenger/Right Side Bar 12mm Lock Washer Driver/Left Front Mounting Bracket 10mm Clip Nuts Passenger/Right Front Mounting Bracket 10mm x 30mm Hex Bolt...
- Page 2 PROCEDURE: 1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. 2. Starting with the Driver/Left side, Proceed with your install by locating the factory mounting holes underneath Vehicle (Fig 1) shows location of mounting holes, note: on some vehicles you may need to remove the factory tape covering these holes.
- Page 3 DRIVER/LEFT SIDE INSTALLATION PICTURED Fig 1B Fig 2 (3)10mm Hex Bolt (5)10mm flat washer (3)10mm Lock Washer (2)10mm Nuts Driver/Left side Rear mounting holes Driver/Left side Fig 2B Fig 2A Rear mounting bracket (3)10mm Hex Bolt (5)10mm flat washer (3)10mm Lock Washer Driver/Left side (2)10mm Nuts Rear clip nut...
