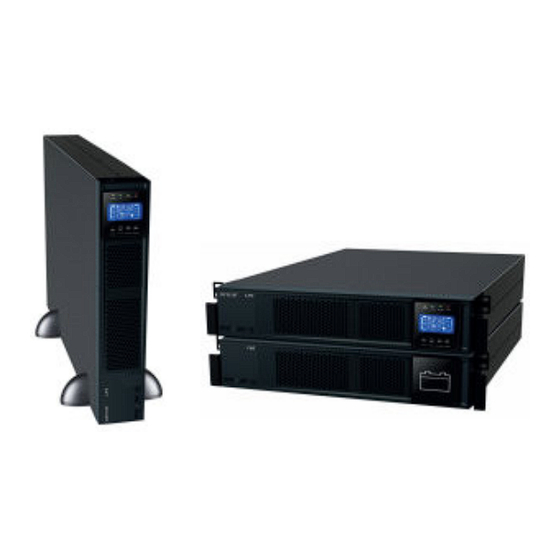

- Page 1 INSTALLATION AND OPERATING MANUAL OFYS RT 1 - 3kVA...
-
Page 2: Table Of Contents
15. APPENDIX: TOXIC AND HAZARDOUS SUBSTANCES AND ELEMENTS ..... . .31 OFYS RT 1 - 3kVA - 551906A - SOCOMEC... - Page 3 OFYS RT 1 - 3kVA - 551906A - SOCOMEC...
-
Page 4: Certificate And Conditions Of Warranty
UPS inactivity. SOCOMEC may, at its own discretion, opt for the repair of the product or the replacement of faulty or defective parts with new parts, or with used parts of equivalent quality to new parts with regard to function and performance. -
Page 5: Safety Standards
CAUTION! If the unit is found to be damaged externally or internally, or any of the accessories are damaged or missing, contact SOCOMEC. Do not operate the unit if it has suffered a violent mechanical shock of any kind. NOTE! Install the unit in accordance with clearances in order to prevent access to handling devices and guarantee sufficient ventilation (refer to ‘Environmental requirements and handling’... - Page 6 For such uses we would advise you to contact SOCOMEC beforehand to confirm the ability of these products to meet the requested level of safety, performance, reliability and compliance with applicable laws, regulations and specifications.
-
Page 7: Description Of Symbols
In the event of contact with the eyes, wash immediately with plenty of water and call a doctor. Call a doctor immediately in the event of accidents or illness. Do not dispose of in normal waste stream (symbol WEEE). OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 8: Abbreviations
Master BMS Protective Earth State of Charge State of Health Surge Protection Device THDI Total Harmonic Distortion in Current THDV Total Harmonic Distortion in Voltage Uninterruptible Power Supply U.P.O. UPS Power Off OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 9: Environmental Requirements And Handling
Do not lift or move the product using the front plastic cover as you may damage or break it and cause injury to yourself in the process WARNING! Heavy Weight! Up to 30kg OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 10: Installing
Before install the UPS, please follow below steps to re-connect battery wires first. Remove front panel. Connect the AC input and re-connect Put the front panel back to the unit. battery wires. 4.1. Rack mounting OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 11: Tower Mounting
4.2. Tower mounting 4.3. Battery Connection Only for long backup time models, connect external batteries as in the picture below. OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 12: Electrical Installation
The UPS should not be turned on during wiring connection. Turn off battery breaker before installation if any. NOTE! Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords. 1000VA OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 13: Communication Connection
USB/ RS-232 port and the other to the communication port of your PC. With the monitoring software installed, you can schedule UPS shutdown/start-up and monitor UPS status through PC. ATTENTION! USB port and RS-232 port can’t work at the same time. Max cables length = 3m. OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 14: Control Panel
• Switch to bypass mode: When the main power is normal, press ON/Mute and Select buttons simultaneously for 5 seconds. The UPS will now switch to bypass mode. This action will be ineffective if the input voltage is out of acceptable range. OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 15: Menu
Indicates the output voltage, frequency or battery voltage. Vac: output voltage, Vdc: battery voltage, Hz: frequency. Load information Indicates the load level by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates overload. Indicates the load or the output is short. OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 16: Alarms
Beeping once every 10 seconds. Battery mode Beeping once every 4 seconds. Fault mode Beeping continuously. Warning Overload Beeping twice every second. Low Battery Beeping once every second. Adjusted1-5min before shutdown. OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 17: Abbreviations Meaning In The Display
8.3. Abbreviations meaning in the display Abbreviation Display content Meaning Enable Disable Escape High loss Low loss Battery Converter Temperature Charger Bypass frequency unstable EEPROM error OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 18: Menu Function Descriptions
BAT 60: presents output frequency is 60Hz If converter mode is enabled, you may choose the following output frequency: CF 50: presents output frequency is 50Hz CF 60: presents output frequency is 60Hz OFYS RT 1 - 3kVA - 551906A - SOCOMEC... - Page 19 230-264: setting the high voltage point in parameter 3 from 230Vac to 264Vac. (Default: 264Vac). LLS: Bypass low voltage point. 180-220: setting the low voltage point in parameter 3 from 180Vac to 220Vac. (Default: 180Vac). OFYS RT 1 - 3kVA - 551906A - SOCOMEC...
-
Page 20: Fault Code
Battery voltage too high Bus under None Battery voltage too low Bus unbalance None Over temperature None Inverter soft start failure None Overload High Inverter voltage None Charger failure None Low Inverter voltage None OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 21: Warning Indicator
Beeping every second Charger failure Beeping every second Battery fault Beeping every second Out of bypass voltage range Beeping every second Bypass frequency unstable Beeping every second EEPROM error Beeping every second OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 22: Operating Procedures
Battery mode or during battery self-test. 2. Suggest to charge batteries at least 10 hours before use. Otherwise, the backup time may be shorter than expec- ted time. OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 23: Battery Mode Operation
1. Turn off the UPS by pressing “OFF” button for at least 0.5s, and then the buzzer will beep once. 2. Then UPS will cut off power to output and there is no display shown on the display panel. OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 24: Operating Mode
Alarm is sounding every 10 second Bypass mode Display Description UPS is powered off and no output supply power, but still can charge batteries. Standby mode Display OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 25: Standard Features And Options
RS 232 OFYS-OP-SNMP OFYS –OP-REL cannot be installable OFYS-OP-REL OFYS-OP-SNMP cannot be installable Electrical Option OFYS-OP-CBL10F Mechanical Option OFYS-OP-RAIL Required option Incompatible option OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 26: Trouble Shooting
Batteries are not fully charged. and then check capacity. If the problem Battery backup time is shorter than still persists, consult your dealer. nominal value. Batteries defect. Contact your dealer to replace the battery. OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 27: Maintenance
Storage temperature Recharge frequency Charging duration -25°C to 40°C Every 3 months 1-2 hours 40°C to 45°C Every 2 months 1-2 hours OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 28: Safeguarding The Environment
For any questions regarding the disposal of the product, contact local distributors or retailers. In case of product with incorporated battery, please use the proper recycling. OFYS RT 1 - 3kVA - 551906A - SOCOMEC... -
Page 29: Technical Specifications
Dimensions (D × W × H) 310 x 438 x 88 mm 410 x 438 x 88 mm 460 x 438 x 88 mm Long-run Model Weight 9 kg 12 kg 14.2 kg OFYS RT 1 - 3kVA - 551906A - SOCOMEC... - Page 30 20% to 90% no condensing CE / EN IEC 62040-1, Standard Compliance EN IEC 62040-2, Category C2 Derating to 70% of capacity in Frequency converter mode or when the output voltage is adjusted to 208VAC. OFYS RT 1 - 3kVA - 551906A - SOCOMEC...
-
Page 31: Appendix: Toxic And Hazardous Substances And Elements
（Pb） （Hg） （Cd） （Cr6+） （PBB） （PBDE） 电池类 陶瓷电子组件类 保险丝类 半导体器件类 焊锡 开关/断路器类 电源线和插座之 端子 印刷电路板 o：表示在该零部件的均质材料中，该有害物质的含量符合 GB/T 26572-2011 规定的限量要求 x：表示在该零部件的均质材料中，该有害物质的含量超出 GB/T 26572-2011 规定的限量要 求 表示本产品含有中国 RoHS 禁止的物质：数字表示所涉及产品和零件的“环保使用期限”； “环保使用期限”说明：本产品的环保使用期限，是指在正常使用条件和遵守本产品安全使用注意事项的情况 下，从生产日起本产品含有的有害物质或元素不会对环境、人身及财产造成严重影响的期限。因电池需周期 性更换，所以20 年环保使用期限不包括电池。 OFYS RT 1 - 3kVA - 551906A - SOCOMEC... - Page 32 CORPORATE HQ CONTACT: SOCOMEC SAS 1-4 RUE DE WESTHOUSE 67235 BENFELD, FRANCE www.socomec.com 551906A...
