Item # 1008674455
20 IN. INDOOR/COVERED OUTDOOR CEILING FAN
WITH PULL CHAIN SWITCH
e strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection SFZ-500-R
Summary of Contents for Home Decorators Collection SFZ-500-R

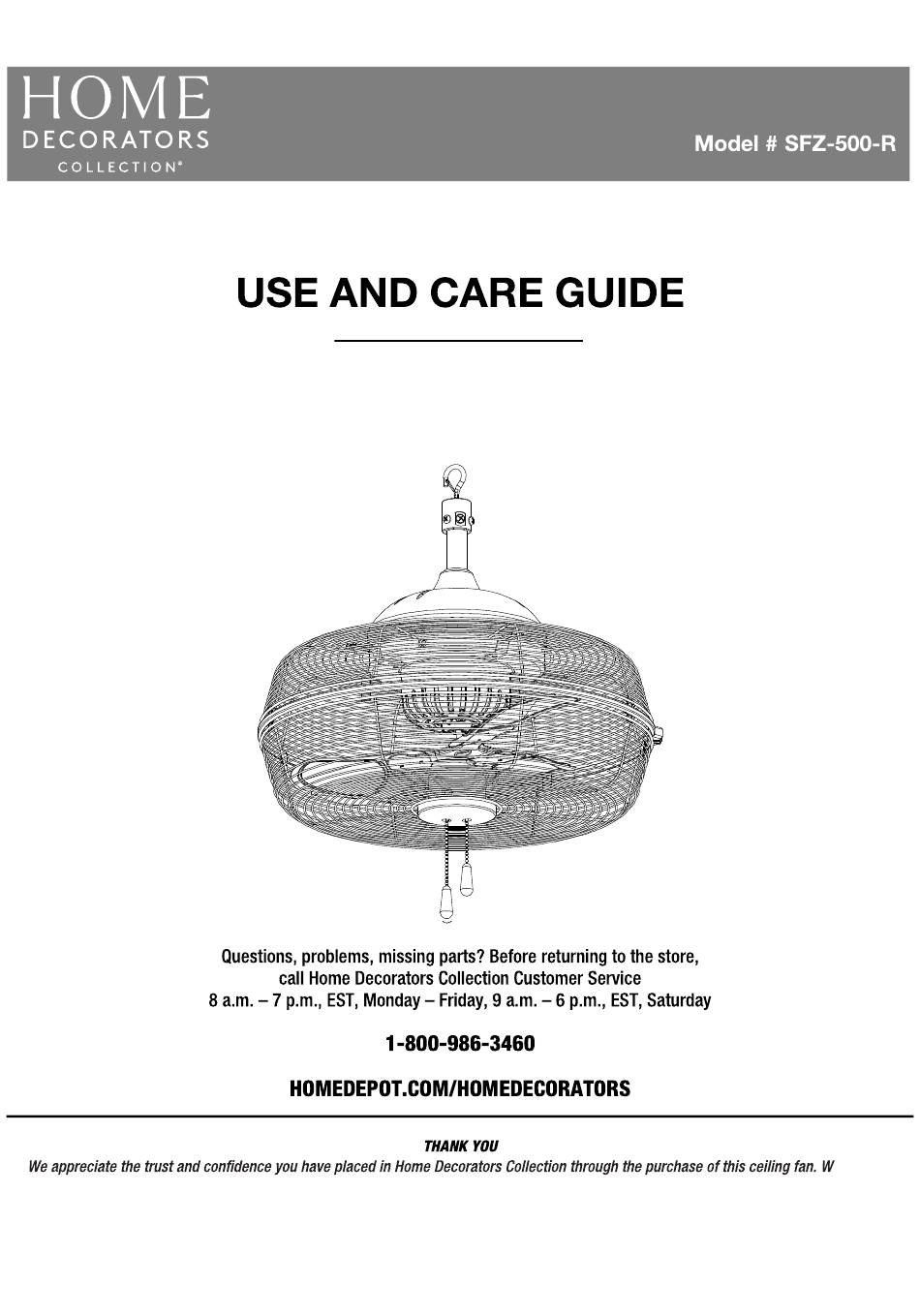

- Page 1 20 IN. INDOOR/COVERED OUTDOOR CEILING FAN WITH PULL CHAIN SWITCH e strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Home Decorators Collection!
-
Page 2: Table Of Contents
Table of Contents ........2 Tools required ........4 Safety Information . -
Page 3: Safety Information
Safety Information (continued) OPERATION SAFETY □ To reduce the risk of re or electric shock, do not use this fan with any solid-state speed control device. □ Do not operate the fan until fully assembled with all parts □ Do not use this fan as a dryer. Make sure nothing is blocking properly in place. -
Page 4: Pre-Installation
WARNING: Items in this section are not assembled to the product by the manufacturer and require installation. Use of a product that may have been improperly assembled could result in serious personal injury. WARNING: the fan installation, cleaning, or servicing. WARNING: To reduce the risk of personal injury, do not bend the blade brackets when installing the brackets, balancing the blades, or cleaning the fan. -
Page 5: Package Contents
PACKAGE CONTENTS Part Description Quantity Hanger Bracket Assembly Decorative Cap Fan Head Mounting Collar Celvis Pin Hitch Pin Lock Screw HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. -
Page 6: Installation
Installation Attaching Fan Head to Hanger Attaching Hanger Bracket Assembly Bracket Assembly and Decorative Cap □ Pull out the hitch pin (BB) and then remove the clevis pin (AA) To reduce risk of re, electric shock, or injury WARNING: from the mounting collar (D) of fan head (C). Loosen the lock to persons, turn off power to wall switch or make sure the screws (CC). - Page 7 Positioning the Decorative Cap Mounting the Fan to the Ceiling □ Push down the decorative cap (B) to cover up the mounting WARNING: Make sure the ceiling angle is not steeper collar (D). than 30 degrees and the open end of the mounting bracket (not included) is up and facing the ceiling, if angle mounting is adopted for the fan.
-
Page 8: Operation
NOTICE: WARNING: Do not operate the fan until fully assembled seconds before changing the fan’s direction. with all parts properly in place. □ switch (H) to make the fan with internal oscillating or non-internal oscillating. WARNING: Always switch off and unplug the fan when not in use, before moving fan from one location to another, □... -
Page 9: Care And Cleaning
Care and Cleaning □ Push down and take off the protecting rim (F). WARNING: Always switch off and unplug the fan before cleaning. Never connect the fan to a power supply when it is not in use, when moving fan from one location to another, assembling parts, making adjustments, cleaning or performing maintenance. -
Page 10: Maintenance
Maintenance □ The fan has permanently lubricated sealed bearings, therefore no further lubrication is required. □ All servicing, apart from ordinary cleaning, should be performed by quali ed personnel only. Those who are not certi ed electricians should not disassemble, repair or rebuild the fan. □...
