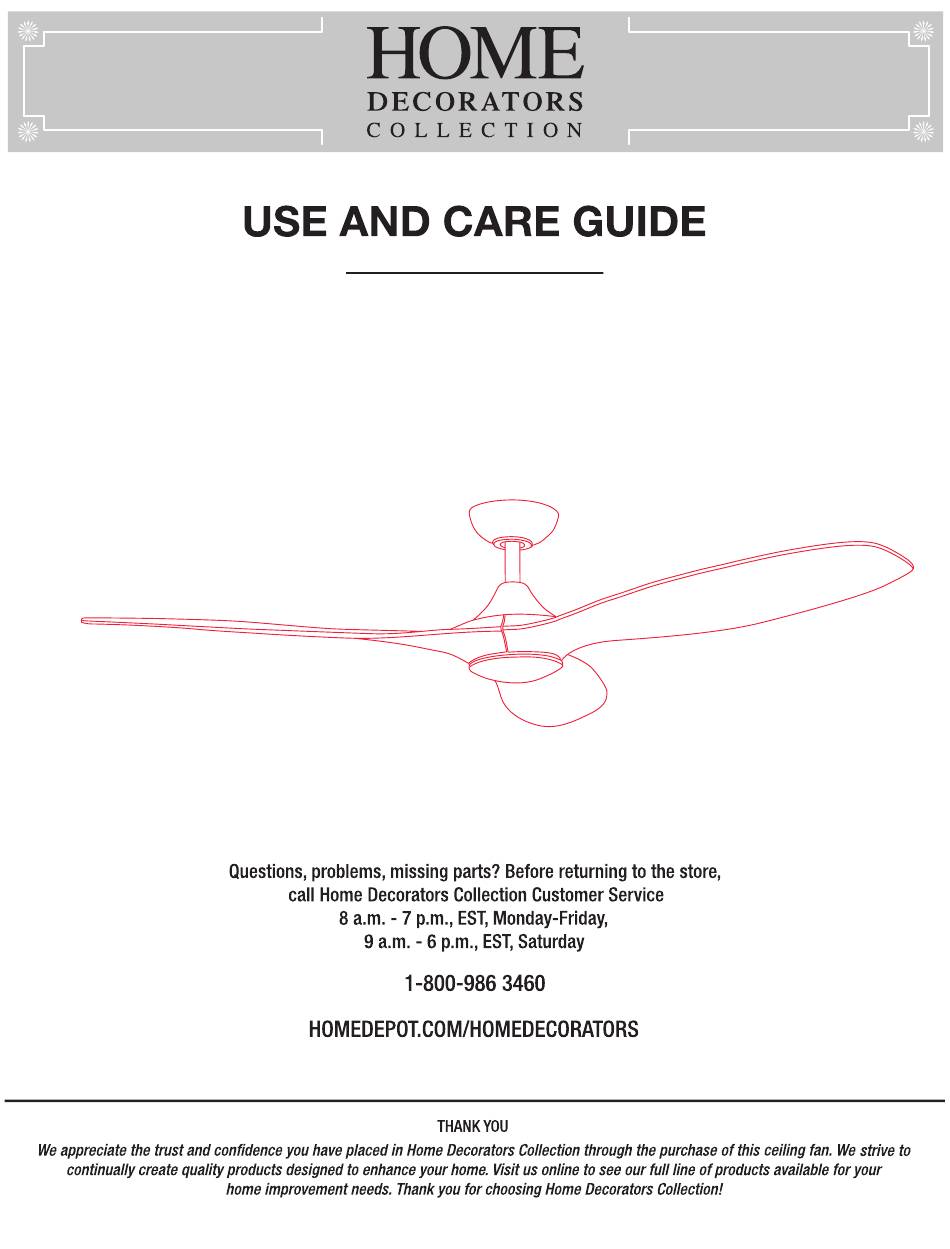

- Page 1 Item #XXXXXXX Model #SW17B2L BN CANTERBURY LED 60 INCH CEILING FAN...
- Page 2 Attaching the Fan Blades............Installing the Light Kit and Metal Shade........
- Page 3 To reduce the risk of fire or electric shock, this fan should only be used with fan speed control part NO.:DL-1170FCS-10, manufactured by: Summer Wind International.,Ltd.
- Page 4 Fan size Speed Volts Amps Watts N.W. G.W. C.F. 2.58 0.05 2270 4.15 0.08 3099 6.98 0.13 4016 5.42 7.01 60 in.(1,52 M) 2.41’ ft. 10.86 0.20 4788 (11.92 lbs) (15.42 lbs) 18.69 0.32 5502 25.19 0.41 6065...
- Page 5 Metal washer (pre-assembled) (pre-assembled) (pre-assembled) (pre-assembled) (pre-assembled) (pre-assembled) Balancing kit...
- Page 6 Metal shade (pre-assembled) (pre-assembled)
-
Page 8: Hanging The Fan
Hanging the Fan □ □ □... - Page 9 Hanging the Fan (continued)
- Page 10 Hanging the Fan (continued) Making the electrical connections WARNING: To avoid possible electrical shock, ensure the electricity is turned off at the circuit breaker or main fuse box before wiring. WARNING: Check to see that all connections are tight, including the ground, and that no bare wire is visible at the wire nuts, except for the ground wire.
-
Page 12: Attaching The Fan Blades
Attaching the Fan Blades the blade washer (AA) and metal washer (BB) provided. - Page 13 Installing the Light Kit and Metal Shade Attaching the metal shade to the fan motor assembly If you want the fan to be non-light version, please kindly skip step 8 above and follow the procedure directly. Attach the metal shade (I) to the switch box (NN) by twisting tightly.
-
Page 14: Learning Process
A23G 12V 1.2.3.4.5.6 buttons: Turns the light ON or OFF. Press and hold the button to set the desired brightness. Learning process Once the receiver has detected the set frequency, the fan will begin to rotate for a short period and then shut off. - Page 15 Reverse function button (PP): Controls the fan direction.
