Item #XXXXX
Model #SW1422/48in/WH

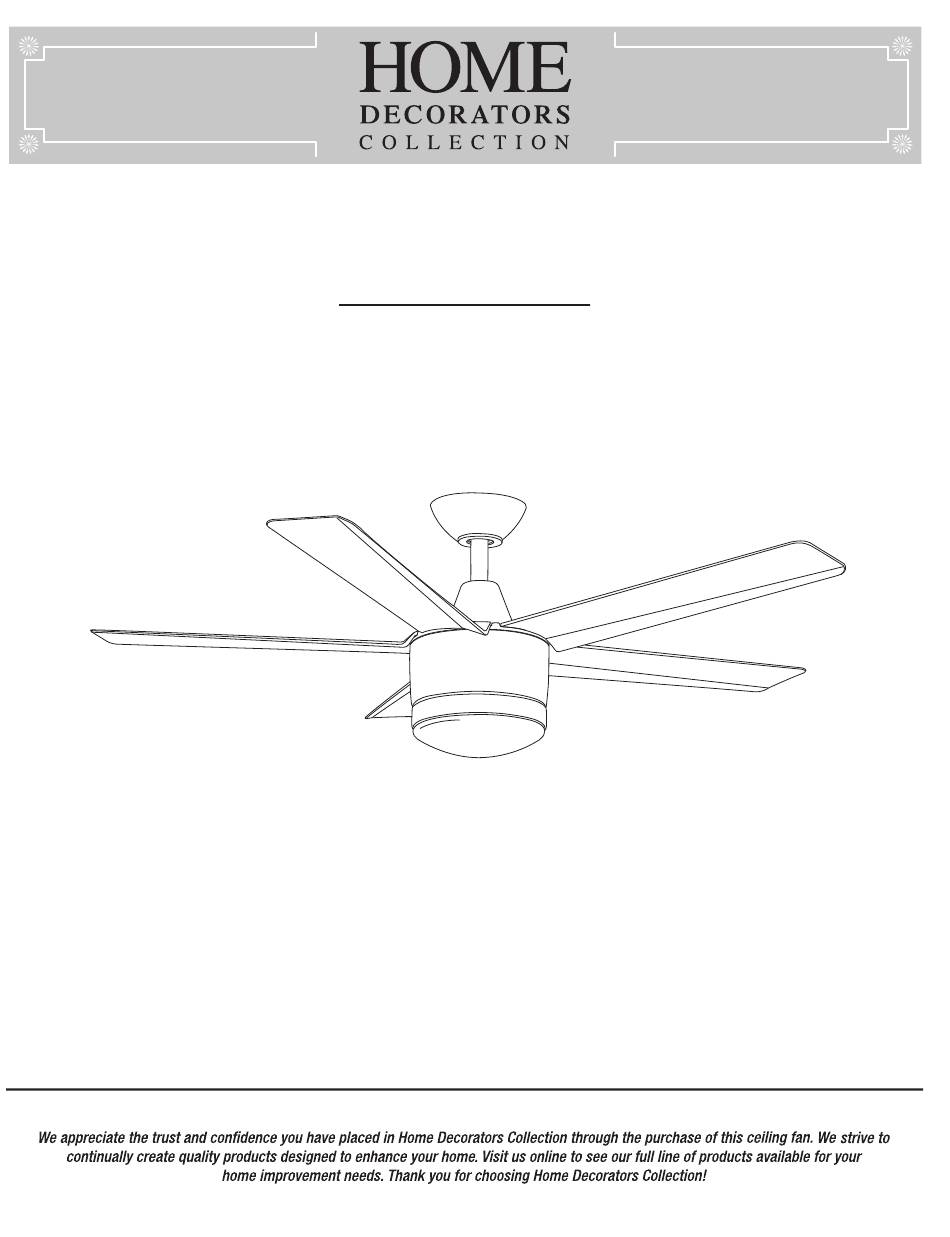

USE AND CARE GUIDE
MERWRY LED 48 INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday,
9 a.m. - 6 p.m., EST, Saturday
1-800-986 3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Home Decorators Collection MERWRY SW1422
Summary of Contents for Home Decorators Collection MERWRY SW1422
- Page 1 USE AND CARE GUIDE MERWRY LED 48 INCH CEILING FAN Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday 1-800-986 3460 HOMEDEPOT.COM/HOMEDECORATORS...
- Page 2 Installing the light kit plate.............12 Installing the LED assembly and glass shade......13...
- Page 3 WARNING： To reduce the risk of fire or electric shock, this fan should only be used with fan speed control part No.:DL- 1167RYS-02, manufactured by S.Q.M Co Ltd.
- Page 4 Fan size Speed Volts Amps Watts N.W. G.W. C.F. 0.24 15.68 2069 7.09 kg 7.96 kg 48 in.(1,22 m) 1.52 ft. Medium 0.35 29.67 3298 (15.6 lb) (17.51 lb) 0.46 54.79 4572 High...
- Page 5 15 + 1 spare 15 + 1 spare preassembled with hanger ball and downrod preassembled in downrod preassembled in downrod...
- Page 7 Disconnect power by removing the ‘FUSE’ or turning OFF the breaker depending on the type of Electrical panel in your home ceiling joist...
- Page 8 Place the slots (NN) from the mounting bracket (B) over the two mounting screws provided with the outlet box. Slide the mounting bracket (B) until it locks in place at the narrow section of the slots (NN). Securely tighten the two mounting screws OUTLET BOX OUTLET BOX provided with the outlet box.
- Page 10 Remove one screw (KK) from the mounting bracket (B) but DO NOT discard it because it will be used again in coming step. Loosen the other screw (KK) approximately 1/4 turn. check groove (OO) CAUTION:Do not cut the antenna wire (QQ) of receiver.
- Page 12 Assembly --Installing the Light Kit Plate...
- Page 13 Assembly —Installing the LED Assembly and Glass Shade Installing the glass shade Pay attention to the black arrow on the LED assembly (J) Raise glass shade (K) up against the LED assembly and align the black arrow on the glass shade (K) to the black arrow on the LED assembly (J) Secure the glass shade (K) to the light kit plate (I) by turning it clockwise.(Fig.3)
