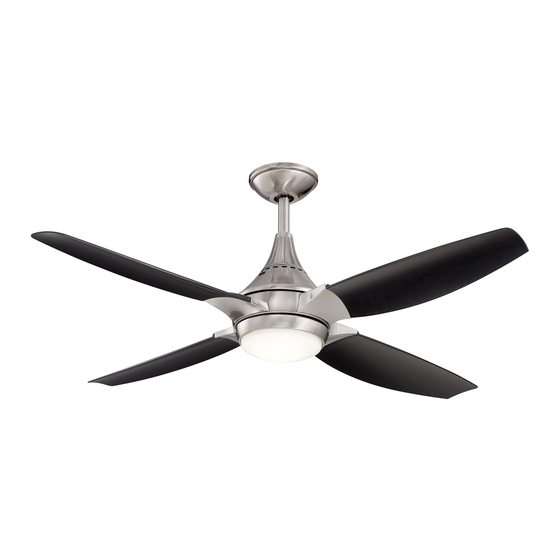

52in ceiling fan

Advertisement

Quick Links

111 939
Model: 111939
120 V~ 60 Hz 81 W
Read and follow all the instructions
before using this product.
Belaris
52
Ceiling Fan
in
Owner's Manual
Belaris
Ventilador de Techo de 1,32
m
Manual del Propietario

Advertisement

loading
Need help?

Need help?

Do you have a question about the Belaris and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Home Decorators Collection Belaris

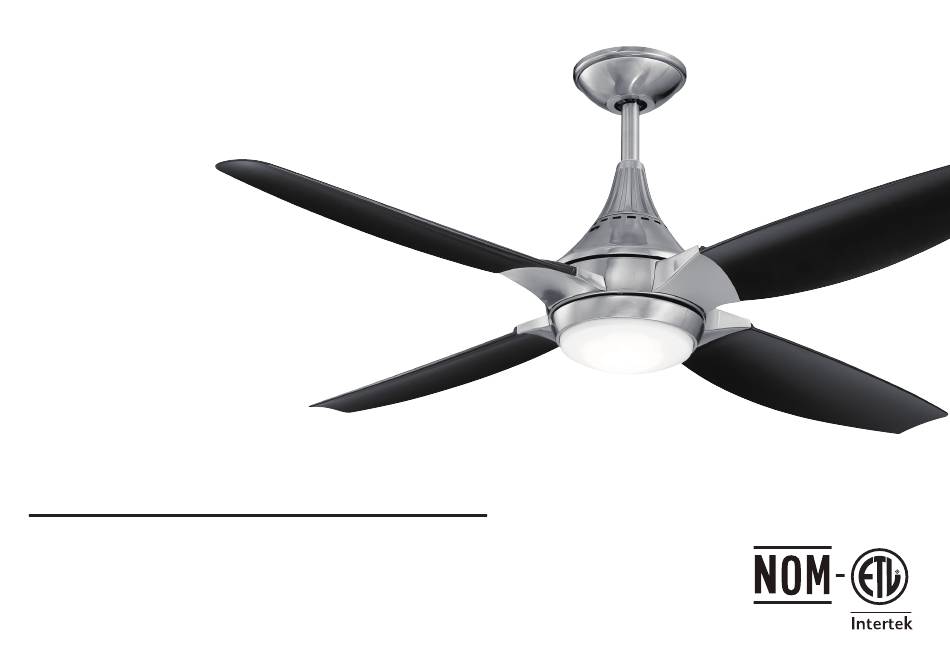

  • Page 1 111 939 Model: 111939 120 V~ 60 Hz 81 W Read and follow all the instructions before using this product. Belaris Ceiling Fan Owner’s Manual Belaris Ventilador de Techo de 1,32 Manual del Propietario...
  • Page 2 To ensure your combinations of wood and brass personal safety and to maximize finishes, solid designer colors, and the performance of your fan, our unique glass and crystal please read this manual designs. thoroughly. Belaris by Home Decorators Collection...
  • Page 3 VENTILADOR DE TECHO/CEILING FAN Marca/Brand: HDC Modelo/Model: 111939 120 V~ 60 Hz 81 W Consumo de energía por unidad de tiempo en operación (Energy Consumption): 76.847 Wh Consumo de energía por unidad de tiempo en modo de espera (Energy Consumption in stand by mode): 0.2439 Wh Importador/Importer: SERVICIOS HOME DEPOT, S.
  • Page 4: Table Of Contents

    52” Saleen Thank you for purchasing our ceiling fan. This product has been manufactured with the highest standards of safety and quality. Ceiling Fan by HDC Date Purchased Table of Contents Store Purchased Safety Rules ....1 111-939 Unpacking Your Fan .
  • Page 5: Safety Rules

    Safety Rules - Read and Save These Instructions To reduce the risk of electric shock, insure electricity has been turned off After making electrical connections, spliced conductors should be turned at the circuit breaker or fuse box before beginning. upward and pushed carefully up into outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding All wiring must be in accordance with the National Electrical Code conductor on one side of the outlet box and ungrounded conductor on the...
  • Page 6: Unpacking Your Fan

    Unpacking Your Fan Unpack your fan and check the contents. You should have the following items: Set of blades (4) Mounting plate Blade Attachment Hardware (13 Screws and rubber washer) Canopy assembly LED light kit Ball/downrod assembly Glass shade Blade Arm Attachment Hardware Coupling cover Receiver with 6 wire nuts (9 Screw with lock washer)
  • Page 7: Installing Your Fan

    Installing Your Fan Provide Strong Support Tools Required Figures 1~3 are examples of different ways to mount the outlet box. Phillips screwdriver, straight slot screwdriver, step ladder and wire cutters. Recessed Ceiling Outlet Box Mounting Plate Mounting Options Figure 3 Outlet Box Note: You may need a longer downrod to If there isn't an existing NOM listed mounting box,...
  • Page 8 Hanging the Fan Carefully feed the motor wires up through the Loosen but downrod. Thread the downrod into the collar. Remove do not Remove Align the holes and replace the clevis pin and REMEMBER to turn off the power. Follow the cotter pin.
  • Page 9 Installing Fan to NOM Listed the Electrical Box Cross pin Ground Lead Outlet Box Set Screw Hanger Downrod Ball WARNING Mounting Pin in Locked TO REDUCE THE RISK OF FIRE, ELECTRIC Motor Wires Positioon SHOCK OTHER PERSONAL INJURY. Screws (Supplied MOUNT FAN ONLY TO AN OUTLET BOX OR with Outlet Box) Ceiling Canopy...
  • Page 10 Making the Electrical (Figure 13) Receiver to house supply wires electrical connections: Connect the black (hot) Connections Frequency Switch wire from the ceiling to the black wire marked "AC in L" from he receiver. Connect the white (neutral) wire from the ceiling to the white wire WARNING marked "AC in N"...
  • Page 11 WARNING SUPPLY CIRCUIT CHECK TO SEE THAT ALL CONNECTIONS ARE Outlet Box TIGHT, INCLUDING GROUND, AND THAT NO Screws BARE WIRE IS VISIBLE AT THE WIRE NUTS. Ceiling Ground EXCEPT FOR THE GROUND WIRE. Mounting Conductor BLACK Bracket Outlet Box Canopy Finishing the Fan WHITE...
  • Page 12 Attaching the Fan Blades Screws and Blade Rubber Washers Attach the blade arm to the blade using the screws with rubber washers provided. Start a screw into the blade arm and do not tighten. Repeat for the two remaining screws and Motor rubber washers.
  • Page 13 Blade Balancing Installing the Mounting If deviation is greater than 1/8”, please call Customer Service (01-800-004-6633) to order Plate complimentary replacements of your brackets. All blades are grouped by weight during assembly. The following procedure should correct Remove 1 of the 3 screws from the mounting most fan wobble.
  • Page 14: Installing The Light Kit

    Installing the Light Kit CAUTION Securely tighten the two light kit mounting BEFORE STARTING INSTALLATION, DISCON- screws previously loosened and the one NECT THE POWER BY TURNING OFF THE previously removed. (Fig. 19) CIRCUIT BREAKER OR REMOVING THE FUSE AT FUSE BOX. TURNING POWER OFF USING Raise glass shade up against the LED light kit, THE FAN SWITCH IS NOT SUFFICIENT TO and secure it to fan by turning glass clockwise...
  • Page 15: Operating Your Transmitter

    Operating Your Transmitter Installing the Battery: Restore power to the ceiling fan and test for proper operation. Install 12V MN21/A23 battery (included), to "HI, MED, LOW" buttons: prevent damage to transmitter, remove the battery These three buttons are used to set the fan if not used for long periods.
  • Page 16 Installing the Transmitter Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, Holder number of fans, etc. Remove the two plugs from the holder. Note The reverse switch is located on the top of motor that the plugs have unique tabs that allows housing.
  • Page 17: Care Of Your Fan

    Care of Your Fan Troubleshooting PROBLEM SOLUTION Here are some suggestions to help you maintain your fan. The fan will not start. Check main and branch circuit fuses or breakers. Because of the fan's natural movement, some Check line wire connections to the fan and switch wire connections in connections may become loose.
  • Page 18: Specifications

    Specifications FAN SIZE SPEED VOLTS AMPS WATTS N.W. G.W. C.F. 0.23 12.26 52.40 10.31 kg 11.90 kg 52” MED. 0.38 33.60 107.57 2.11' (22.69 lbs) (26.17 lbs) HIGH 0.51 60.99 153.94 These are approximate measures. They do not include Amps and Wattage used by the light kit. Importer: SERVICIOS HOME DEPOT, S.
