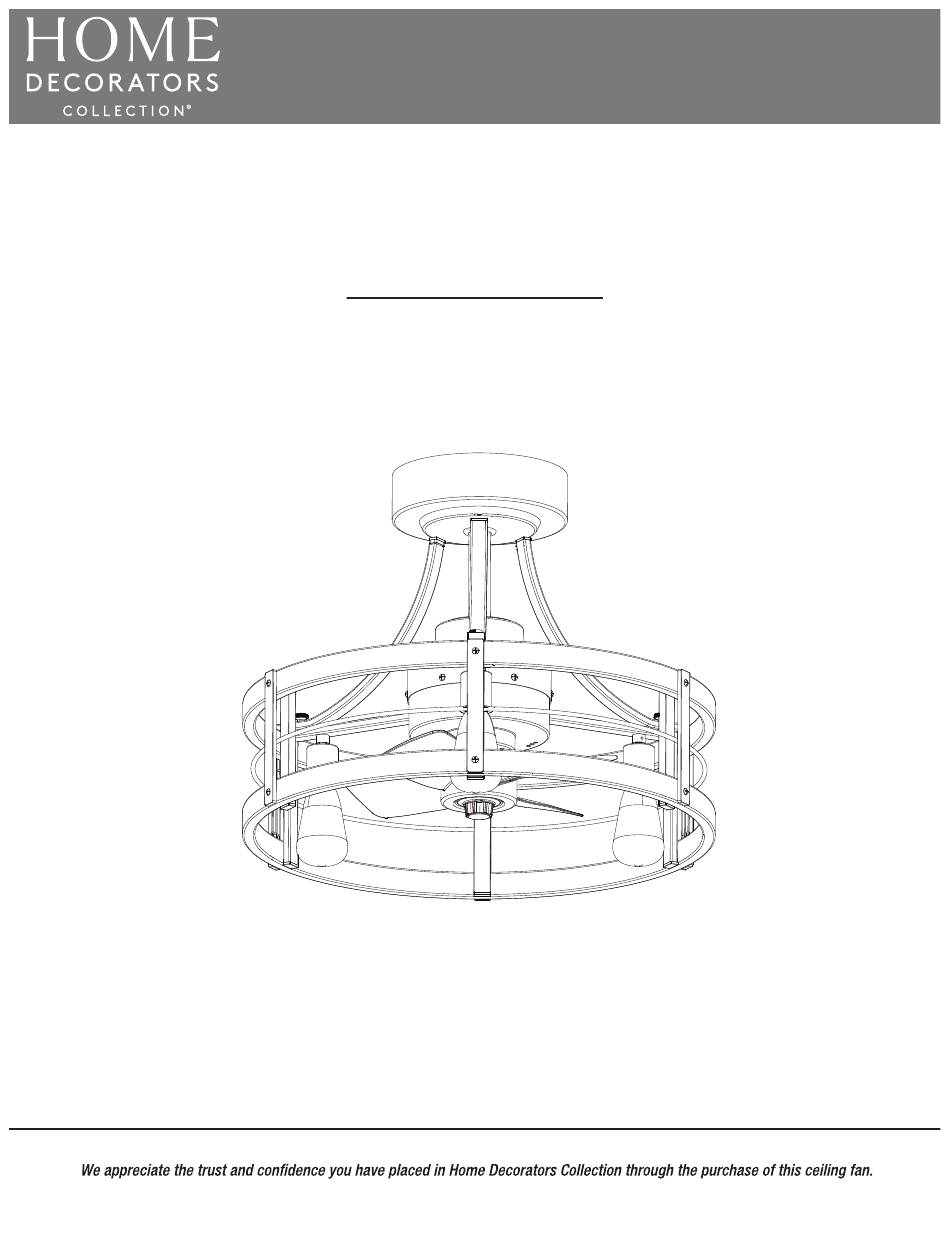

Item # 1008674492
Model #SFL-550R
USE AND CARE GUIDE
22 IN. DIMMABLE LED BULB INDOOR/COVERED OUTDOOR
CEILING FAN WITH REMOTE CONTROL
Questions, problems, missing parts? Before returning to the store,
call Home Decorators Collection Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday
1-800-986-3460
HOMEDEPOT.COM/HOMEDECORATORS
THANK YOU
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available
for your home improvement needs. Thank you for choosing Home Decorators Collection!
Advertisement
Table of Contents
Related Manuals for Home Decorators Collection SFL-550R
Summary of Contents for Home Decorators Collection SFL-550R
- Page 1 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS THANK YOU We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs. Thank you for choosing Home Decorators Collection!
-
Page 2: Table Of Contents
Table of Contents Table of Contents ........2 Tools required . -
Page 3: Warranty
Safety Information (continued) □ □ Do not use the fan to exhaust hazardous or explosive materials Do not insert your hand or other objects into the guard or the and vapors. movable parts. □ □ Do not touch the fan with wet hands. Make sure that the fan does not get wet (water splashes etc.). -
Page 4: Pre-Installation
Pre-Installation PLANNING INSTALLATION WARNING: Items in this section are not assembled to the product by the manufacturer and require installation. Use of a product that may have been improperly assembled could result in serious personal injury. WARNING: To reduce the risk of re, electric shock, or injury to persons, unplug or disconnect the appliance from the power supply before the fan installation, cleaning, or servicing. -
Page 5: Hardware Included
Pre-Installation (continued) HARDWARE INCLUDED Part Description Quantity Installation hardware bag Canopy mounting screws Securing bolt Securing screws Remote control wall mount screws Decorative arms mounting screws HOMEDEPOT.COM/HOMEDECORATORS Please contact 1-800-986-3460 for further assistance. -
Page 6: Package Contents
Pre-Installation (continued) PACKAGE CONTENTS Part Description Quantity Mounting bracket Canopy Decorative cap Pivot ball/downrod assembly Motor housing cap Fan body LED bulb Remote control EHU-659TRF Remote control wall mount Remote control AAA batteries Decorative arms... -
Page 7: Installation
Installation Installing the Ceiling Fan Mounting WARNING: personal injury, turn off power to room and wall switch by Bracket removing fuses or turning off circuit breakers as needed before beginning installation. WARNING: Remove any existing ceiling fan or light where you intend to install this ceiling fan. - Page 8 Installation (continued) Preparing For Mounting Routing the Wires □ Carefully feed the four electrical wires of the fan body (F) □ Follow the order and with the cupped side facing up, place through the pivot ball/downrod assembly (D) . the canopy (B) and the decorative cap (C) through the pivot ball/downrod assembly (D).
- Page 9 Installation (continued) Assembling the Fan Body Attaching the Decorative Arms □ Insert the downrod assembly (D) into top of fan body (F), □ Attach the three decorative arms (K) to the fan body (F) and aligning the holes. Insert the securing bolt (DD) into the secure them by tightening the screws (HH).
- Page 10 Installation (continued) Wiring the Fan Attaching the Fan to the Electrical □ If your outlet box has two hot wires, choose the supply wire that matches the wall switch you want to use for the ceiling fan and connect it to the black motor hot wire of the fan. WARNING: Once you begin the process of hanging the Then connect the other hot wire to the blue lighting ceiling fan, do not leave the fan unattended until the...
- Page 11 Installation (continued) Wiring the Fan (Optional) Placing the Decorative Housing □ If your outlet box has the only one hot wire, connect the fan □ Push the canopy (B) upward to cover up the outlet box, the black motor hot wire and the fan blue lighting hot wire mounting bracket and electrical wires.
- Page 12 Installation (continued) Installing the Batteries Installing the LED Bulbs □ □ Insert the three LED bulbs (G) into the light holders of and sliding the cover off. the fan body (F) and rotate clockwise to secure. □ Install two remote control batteries (J) provided into the remote control (H).
- Page 13 Installation (continued) Preparing the Remote Control power button WARNING: either the wall switch or breaker box. □ Return power to the fan at the wall switch or breaker box. □ To pair the fan with the remote control, press and hold the POWER button and the AIRFLOW DOWN button at the same ON / OFF ON / OFF...
- Page 14 Installation (continued) Installing the Remote Control Wall Mount □ Install the remote control wall mount (I) in to the desired location, using the two mounting screws (GG) provided. □ Place the remote control (H) on the remote control wall mount (I) if needed.
-
Page 15: Operation
Operation Using the Remote Control (Model No. EHU-659TRF ) □ enhance the fan’s performance and make its use more NOTE: If you have not already done so, restore power to the room and wall switch, then make sure the wall switch controlling the fan is turned on. -
Page 16: Maintenance
Maintenance □ Due to the natural movement of a ceiling fan, connections can become loose over time. Check all the ceiling fan’s connections (not including the electrical connections) at least twice a year. □ The fan has permanently lubricated sealed bearings, therefore no further lubrication is required. □... -
Page 17: Troubleshooting
Troubleshooting WARNING: Turn off power to room and wall switch by removing fuses or turning off circuit breakers as needed before attempting any repairs to the ceiling fan or the electrical connections. Failure to do so can cause serious personal injury. Problem Solution □... - Page 18 □ this device must accept any interference received, including interference that may cause undesired operation. The following responsible party designated in FCC §2.909 is responsible for this declaration: □ Fan Model Number: SFL-550R, SFL-550S □ Remote Control Model Number: EHU-659TRF □ Company Name: CM Development Inc.
- Page 19 Questions, problems, missing parts? Before returning to the store, call Home Decorators Collection Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m.- 6 p.m., EST, Saturday 1-800-986-3460 HOMEDEPOT.COM/HOMEDECORATORS Retain this manual for future use.
