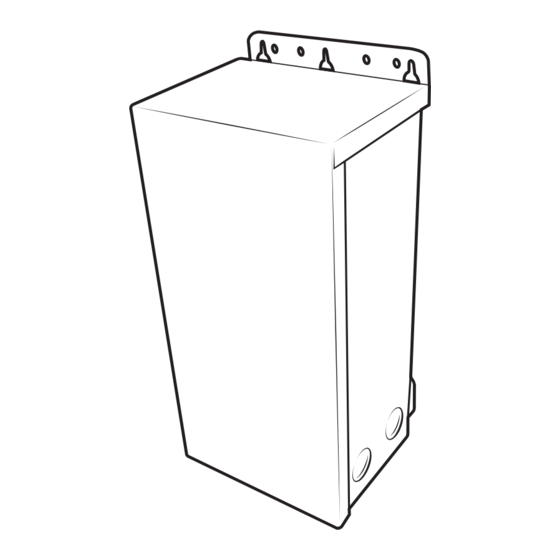

LED Light Controller
This product requires AquaLink RS revision Y or later
FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and qualified in pool
equipment by the jurisdiction in which the product will be installed, where such state or local or provincial requirements
exist. In the event no such state or local requirement exists, the individual in charge of installation must be a
professional with sufficient experience in pool equipment installation and maintenance, so that all of the instructions in
this manual can be followed exactly. Improper installation and/or operation can create dangerous electrical hazards,
which can cause high voltages to run through the electrical system. Before installing this product, read and follow all
warning notices and instructions that accompany this product. Failure to follow warning notices and instructions may
result in property damage, personal injury, or death. Improper installation and/or operation may void the warranty.
If these instructions are not followed exactly, a fire or explosion may result, causing property damage,
personal injury, or death. DO NOT MODIFY THIS EQUIPMENT!
ATTENTION INSTALLER: This manual contains important information about the installation, operation
and safe use of this product. This information should be given to the owner/operator of this equipment.
INSTALLATION AND OPERATION MANUAL
WARNING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinite WaterColors IWCP50W100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jandy Infinite WaterColors IWCP50W100

  • Page 1 INSTALLATION AND OPERATION MANUAL Jandy Infinite WaterColors ® ™ LED Light Controller This product requires AquaLink RS revision Y or later WARNING FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed, where such state or local or provincial requirements exist.
  • Page 2: Table Of Contents

    ENGLISH Jandy Infinite WaterColors LED Light Controller Installation & Operation Manual ® ™ Table of Contents Section 1. Important Safety Instructions ..3 Section 4. iAquaLink App Features ....8 ® Safety Instructions ........3 Light Setup ..........8 Landscape Lighting Instructions ..... 4 4.2...
  • Page 3: Section 1. Important Safety Instructions

    Jandy Infinite WaterColors LED Light Controller Installation & Operation Manual ENGLISH ® ™ Section 1. IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS Safety Instructions All electrical work must be performed by a licensed electrician and conform to all national, state, provincial and local codes.
  • Page 4: Landscape Lighting Instructions

    This manual provides installation and basic operational of a pool or spa connect power unit to a GFCI protected instructions for the Jandy Infinite WaterColors LED branch circuit. In Canada, do not mount power supply or Light Controller. The Infinite WaterColors LED Light...
  • Page 5: Location Requirements For Pool And Spa Light Applications

    Jandy Infinite WaterColors LED Light Controller Installation & Operation Manual ENGLISH ® ™ Figure 1. Package Contents Location Requirements for Pool and Spa Light Applications Figure 2. Install Brackets In order to protect the Infinite Water Colors LED Light Mark the location for the mounting screws.
  • Page 6: High Voltage Wiring

    ENGLISH Jandy Infinite WaterColors LED Light Controller Installation & Operation Manual ® ™ High Voltage Wiring WARNING Risk of electric shock which can result in serious injury or death: Before attempting to install or service, ensure that all power to the circuit supplying power to the system is disconnected or turned off at the circuit breaker.
  • Page 7: Bonding

    Jandy Infinite WaterColors LED Light Controller Installation & Operation Manual ENGLISH ® ™ NOTE: Cover screw ensures bonding to ground, and must be secured in place. Turn on the breaker to restore power (LED2 will turn on red and LED1 will start flashing green).
  • Page 8: Section 4. Iaqualink App Features

    ENGLISH Jandy Infinite WaterColors LED Light Controller Installation & Operation Manual ® ™ Additionally, in the United States the National Electrical Section 4. iAquaLink ® Code (NEC ) and in Canada the Canadian Electrical ® ® Features Code (CEC), require that all metallic components of a pool...
  • Page 9: Select Colors

    Jandy Infinite WaterColors LED Light Controller Installation & Operation Manual ENGLISH ® ™ From the menu screen, go to > System Setup > Turn zone lights on/off by tapping the toggle to IWC Lights. the right of the desired zone.
  • Page 10: Section 6. Amazon Alexa Light Control

    ENGLISH Jandy Infinite WaterColors LED Light Controller Installation & Operation Manual ® ™ Section 6. Amazon Alexa Light Control Go to iaqualink.com for more information on controlling your Infinite WaterColors lights through Amazon Alexa. Section 7. Troubleshooting Problem Possible Cause Corrective Action Light don’t turn on...
  • Page 11 Jandy Infinite WaterColors LED Light Controller Installation & Operation Manual ENGLISH ® ™ Page 11...
  • Page 12 Zodiac Pool Systems LLC 2882 Whiptail Loop # 100 Carlsbad, CA 92010, USA Jandy.com | 1.800.822.7933 Zodiac Pool Systems Canada, Inc. 2-3365 Mainway Burlington, ON L7M 1A6, Canada ETL LISTED CONFORMS TO Jandy.ca | 1.800.822.7933 ANSI/UL STD 379 UL STD 50E UL STD 1838 ®...
