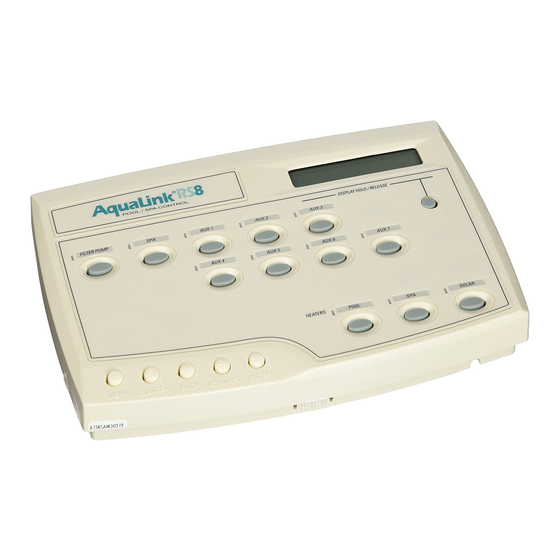

Jandy AquaLink RS All Button Quick Review Card

AquaLink
Basic Operation: The AquaLink
First, you can press the button of the equipment you want to turn on. When the LED above the button is illuminated, the equipment is on (with
the exception of the heater buttons). When the LED above a button flashes, the equipment is being protected by a built-in safety delay.
Second, you can program the equipment to turn on and off at specific times.

Filter Pump Button

Turns on the filter pump and starts
water circulation.

Spa Pump Button

Turns on the filter pump and
switches water circulation from pool
to spa.

Equipment Labels

Indicates generic "AUX" labels. Cus-
tom labels can be added for each
"AUX" from the label pack.
Owners Manual may be downloaded online @ www.jandy.com
For Technical Support call 707.776.8200 ext.260
6000 Condor Dr., Moorpark, CA, USA 93021 • 707.776.8200 • FAX 707.763.7785
RS All Button Quick Review Card
®
® RS All Button Indoor Controller can turn your pool/spa/landscape equipment on and off two ways:

Display

Rotates between messages indicat-
ing time/date/temperature and status
of equipment.

Display Hold/ Release

Stops or starts the display rotating
through messages (e.g. time, date,
temperature).

Auxiliary Buttons

Turns auxiliary functions on and off. If
LED is lit, function is on.

Heater Button

Turns heaters on and off. If LED is
green, heater is enabled. If LED is red,
heater is firing.
