OWNER'S MANUAL
Jandy
Infinite WaterColors
®
Nicheless LED Light
WARNING
FOR YOUR SAFETY - This product must be installed and serviced by a contractor
who is licensed and qualified in pool equipment by the jurisdiction in which the
product will be installed where such state or local requirements exist. The maintainer
must be a professional with sufficient experience in pool equipment installation and
maintenance so that all of the instructions in this manual can be followed exactly.
Before installing this product, read and follow all warning notices and instructions
that accompany this product. Failure to follow warning notices and instructions
may result in property damage, personal injury, or death. Improper installation and/
or operation may void the warranty. DO NOT MODIFY THIS EQUIPMENT!
Improper installation and/or operation can create unwanted electrical hazard which
can cause serious injury, property damage, or death.
ATTENTION INSTALLER - This manual contains important information about the
installation, operation and safe use of this product. This information should be
given to the owner/operator of this equipment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Infinite WaterColors IWC15W100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Jandy Infinite WaterColors IWC15W100

  • Page 1 OWNER’S MANUAL Jandy Infinite WaterColors ® ™ Nicheless LED Light WARNING FOR YOUR SAFETY - This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exist. The maintainer must be a professional with sufficient experience in pool equipment installation and maintenance so that all of the instructions in this manual can be followed exactly.
  • Page 2: Table Of Contents

    ENGLISH Jandy Infinite WaterColors Nicheless LED Light | Owner’s Manual ® ™ Table of Contents Section 1. Safety Information ......4 Section 2. General Description ....... 5 Product Overview ............5 Product Contents ............5 Section 3. Installation ........6 Preparing the Light Fixture for Installation..... 6 Installing the Light Fixture ..........8...
  • Page 3 ENGLISH Jandy Infinite WaterColors Nicheless LED Light | Owner’s Manual ® ™ FCC Regulatory Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 4: Section 1. Safety Information

    READ AND FOLLOW ALL INSTRUCTIONS The Jandy Infinite WaterColors Nicheless LED Light is designed to be powered and operated with the Jandy Infinite WaterColors LED Light Controller, the lights will not operate when powered from an alternate transformer. Follow all installation and operating instructions that accompany this product, as well as the Jandy Infinite WaterColors LED Light Controller (Model: IWCLC300W).
  • Page 5: Section 2. General Description

    ® WaterColors Nicheless LED Lights are only available for 14-volt AC power. For supply connection, use only the Jandy Infinite WaterColors LED Light Controller which is an isolating low voltage power supply with ungrounded output, evaluated and listed by a Nationally Recognized Testing Laboratory (NRTL) for swimming pool use.
  • Page 6: Product Contents

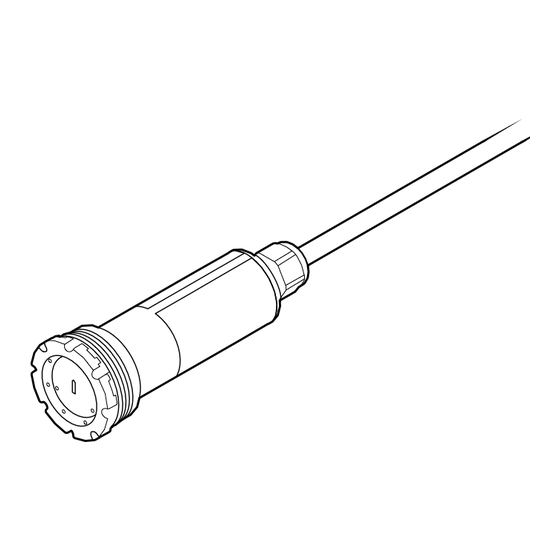

    Infinite WaterColors Nicheless LED Light | Owner’s Manual ® ™ Product Contents 1 - Jandy Infinite WaterColors Nicheless LED Light 2 - Protective Cover 3 - White Cosmetic Cover 4 - Gray Cosmetic Cover 5 - Installation Tool 6 - Owner’s Manual...
  • Page 7: Preparing The Light Fixture For Installation

    Nicheless LED Light | Owner’s Manual ® ™ NOTE: Jandy Nicheless Lights are Low Voltage and do not have any exposed metal and as such do not require a separate ground or bonding wire. Preparing the Light Fixture for Installation NOTE: The electrician must complete preparatory steps before light fixture is installed.
  • Page 8: Installing The Light Fixture

    ENGLISH Jandy Infinite WaterColors Nicheless LED Light | Owner’s Manual ® ™ 14 VAC Class 2 Magnetic Transformer or Junction Box 48” min. Check AHJ for other J-box requirements 8” minimum to maximum water level Maximum possible water line. (top of copping) 4”...
  • Page 9 NOTE: When using a 1 1/2” MIP fitting on the back of a SP-1022 or SP-1408 Wall Fitting, the interior of the Spears and Dura MIP are too small for use with the Jandy Infinite WaterColors Nicheless LED Lights. ®...
  • Page 10: Wet Area Installations

    Controller Wiring Options The Jandy Infinite WaterColors Nicheless LED Light is designed to be powered and operated with the Jandy Infinite WaterColors LED Light Controller, the lights will not operate when powered from an alternate transformer. Follow all installation and operating instructions that accompany this product, as well as the Jandy Infinite WaterColors LED Light Controller (Model: IWCLC300W).
  • Page 11: Wire Gauge And Length

    ™ WARNING RISK OF ELECTRICAL SHOCK OR ELECTROCUTION, which could result in serious injury or death. The Jandy Infinite WaterColors Nicheless LED Lights are only available for 14-volt AC power. For supply connection, use only the Jandy Infinite WaterColors LED Light Controller which is an isolating low voltage...
  • Page 12 Light Controller listed for swimming pool, spa, and wet area use. NOTE The Jandy Infinite WaterColors LED Lights will not operate properly with light dimmers. Do not wire the Jandy Lights to any dimming circuitry. DO NOT CONNECT TWO OR MORE POWER SUPPLIES IN...
  • Page 13: Section 5. Iaqualink ® App Features

    ENGLISH Jandy Infinite WaterColors Nicheless LED Light | Owner’s Manual ® ™ Section 5. iAquaLink ® 5.1.2 Name Light Zones App Features Go to > System Setup > Light Setup > Zone Name. Download the iAquaLink app and/ or upgrade to the latest version prior From the Edit Zone Name pop to light and zone set up.
  • Page 14: Adjust Brightness

    ENGLISH Jandy Infinite WaterColors Nicheless LED Light | Owner’s Manual ® ™ 5.3.2 Preset Colors Choose menu on the OneTouch Go to the equipment page display screen and press select. and select the zone you want From the menu screen, go to >...
  • Page 15: Select Color

    ENGLISH Jandy Infinite WaterColors Nicheless LED Light | Owner’s Manual ® ™ From the IWC Lights Zone Scroll through the menu and Setup screen, choose Zone select the desired light zone. Name. From the list of preset colors From the IWC Lights Rename...
  • Page 16 Zodiac Pool Systems LLC 2882 Whiptail Loop # 100, Carlsbad, CA 92010 1.800.822.7933 | Jandy.com Zodiac Pool Systems Canada, Inc. 3365 Mainway, Unit 2 Burlington, ON L7M 1A6 1.888.647.4004 | Jandy.ca...
