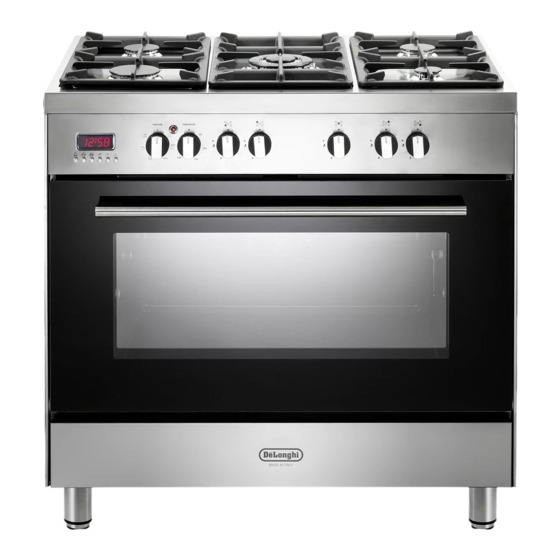

- Page 1 DE ’ L O N G H I C OO KING USER & INSTALLATION INSTRUCTIONS D SR 907 1 D F DUAL FUEL COOKER...
-
Page 2: Table Of Contents
CONTENTS Page Number Introduction ..........Important Safety Precautions &... -
Page 3: Introduction
Dear Customer, Thank you for purchasing the DeLonghi DSR 9071 DF dual fuel cooker. The safety precautions and recommendations listed below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance. -
Page 4: Important Safety Precautions & Recommendations
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS IMPORTANT: This appliance is designed and manufactured solely for the cooking of domestic (household) food and is not suitable for any non domestic application and therefore should not be used in a commercial environment. The appliance guarantee will be void if the appliance is used within a non domestic environment i.e. - Page 5 • CAUTION: this appIiance must only be installed in a permanently ventilated room in compliance with the applicable regulations. • Do not operate your appliance by means of an external timer or separate remote-control system. • Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the electric power supply.
- Page 6 • WARNING: During use the appliance and its accessible parts become hot; they remain hot for some time after use. Care should be taken to avoid touching heating elements (on – the hob and inside the oven). The door is hot, use the handle. –...
- Page 7 • Do not line the oven walls or base with aluminium foil. Do not place baking trays or the drip tray on the base of the oven chamber. • Do not cover the hob with aluminium foils. FIRE RISK! Do not store flammable material in the oven or in the •...
- Page 8 ENERGY LABELLING/ECODESIGN • Commission delegated regulation (EU) No 65/2014 (supplementing Directive 2010/30/EU of the European Parliament and of the Council). • Commission regulation (EU) No 66/2014 (implementing Directive 2009/125/EC of the European Parliament and of the Council). Reference to the measurement and calculation methods used to establish compliance with the above requirements: •...
-
Page 9: Advice For The Installer
Advice for the installer IMPORTANT • The appliance is designed and approved for domestic use only and should not be installed in a commercial, semi commercial or communal environment. Your product will not be guaranteed if installed in any of the above environments and could affect any third party or public liability insurances you may have. -
Page 10: Installation
1 - INSTALLATION This cooker has class “2/1” overheating protection so that it can be installed next to a cabinet. If the cooker is installed adjacent to furniture which is higher than the gas hob cooktop, a gap of at least 200 mm must be left between the side of the cooker and the furniture. The walls and kitchen furniture surrounding the appliance must be made of non-flammable material. - Page 11 FITTING THE ADJUSTABLE FEET AND LEVELLING THE COOKER The adjustable feet must be fitted to the base of the cooker before use (figs. 1.2, 1.3). Rest the rear of the cooker on a piece of the polystyrene packaging exposing the base for the fitting of the feet.
- Page 12 MOVING THE COOKER WARNING: When raising cooker to upright position always ensure two people carry out this manoeuvre to prevent damage to the adjustable feet (fig. 1.5). Fig. 1.5 WARNING WARNING When moving cooker to its final position Be careful: Do not lift the cooker by DO NOT DRAG (fig.
- Page 13 ANTI-TILT BRACKET Important! To restrain the appliance and prevent it tipping accidentally, fit the supplied bracket to the rear wall to fix it securely. To fit the anti-tilt bracket: After you have located where the cooker is to be positioned, mark on the wall the place where the two screws of the anti-tilt bracket have to be fitted.
- Page 14 PROVISION FOR VENTILATION • The appliance should be installed into a room or space with an air supply in accordance with the current version of BS 5440-2: 2000. • For rooms with a volume of less than 5m - permanent ventilation of 100 cm free area must be provided.
-
Page 15: Gas Section
2 - GAS INSTALLATION IMPORTANT NOTE This appliance is supplied for use on NATURAL GAS or LPG (check the gas regulation label attached on the appliance). • Appliances supplied for use on NATURAL GAS are adjusted for this gas only and cannot be used on any other gas (LPG) without modification. - Page 16 Fig. 2.1 RESTRAINING CHAIN Chain security holes Cooker Back of the cooker Rear wall Installation to Natural Gas Installation to Natural Gas must conform to the Code of Practice, etc. The supply pressure for Natural Gas is 20 mbar. The installation must conform to the relevant British/European Standards. Installation to LP Gas When operating on Butane gas a supply pressure of 28-30 mbar is required.
- Page 17 Notes: • Flexible hoses can be used where the sited ambient temperature of the hose does not exceed 70°C. These hoses must be manufactured in accordance with BS669 part 1 or EN 14800 and be of the correct construction for the type of gas being used.
- Page 18 Fitting the plug Fig. 2.3 on the inlet pipe terminal not used Cooker manifold (right Cooker or left inlet pipe) manifold (right or left inlet pipe) Manifold male Manifold pipe fitting male 1/2” G cylindrical pipe fitting (ISO 228-1) male 1/2”...
- Page 19 CONVERSION TO NATURAL GAS OR TO LPG REPLACEMENT OF THE INJECTORS Auxiliary, If the injectors are not supplied they can Semi-rapid and be obtained from the After-Sales Service. Rapid burners Select the injectors to be replaced according to the “Table for the choice of the injectors”.
- Page 20 TABLE FOR THE CHOICE OF THE INJECTORS Cat: 2H3+ Natural Gas G30 28-30 mbar G20 20 mbar Nominal Reduced G31 37 mbar power power BURNERS Ø Air ring Ø Air ring [kW] [kW] injector opening injector opening [1/100 mm] [mm] [1/100 mm] [mm] Auxiliary (A)
-
Page 21: Electrical Installation
3 - ELECTRICAL INSTALLATION IMPORTANT: The cooker must be installed in accordance with the manufacturer’s instructions. Incorrect installation, for which the manufacturer accepts no responsibility, may cause damage to persons, animals and things. The connection of the appliance to earth is mandatory. The manufacturer declines all responsability for any inconvenience resulting from the inobservance of this condition. - Page 22 ELECTRICAL FEEDER CABLE CONNECTION WARNING: If the power supply cable is damaged, it must be replaced only by an authorised service agent in order to avoid a hazard. To connect the supply cable: Remove the screw securing the cover “A” on the rear of the cooker (fig. 3.2). •...
-
Page 23: Advice For The User
Advice for the user... -
Page 24: Cooking Hob
1 - COOKING HOB Fig. 1.1 GAS BURNERS Auxiliary burner (A) 1,00 kW Semi-rapid burner (SR) 1,75 kW Rapid burner (R) 3,00 kW Triple-ring burner (TR) 3,50 kW Notes: • The electric ignition is incorporated in the knobs. The appliance has a safety valve system fitted, the flow of gas will be stopped if and •... -
Page 25: Control Panel
2 - CONTROL PANEL Fig. 2.1 CONTROL PANEL - Controls description Front right burner control knob Rear right burner control knob Central burner control knob Rear left burner control knob Front left burner control knob Oven thermostat control knob Oven selector control knob Electronic clock/programmer Oven thermostat indicator light Please note: This appliance incorporates a safety cooling fan which you will hear operating... -
Page 26: Use Of The Hob Burners
3 - USE OF THE HOB BURNERS GAS BURNERS Gas flow to the burners is adjusted by turning the knobs (illustrated in fig. 3.1) which control the safety valves. Turning the knob, so that the indicator line points to the symbols printed on the panel, achieves the following functions: - symbol closed valve... - Page 27 LIGHTING THE BURNERS CHOICE OF THE BURNER ignite burner, following On the control panel, near every knob instructions are to be followed: there is a diagram that indicates which burner is controlled by that knob. Press in the corresponding knob and turn counter-clockwise (fig.
-
Page 28: Fan Oven
4 - FAN OVEN OPERATING PRINCIPLES Attention: the oven door becomes very hot during operation. Heating and cooking in the FAN oven are Keep children away. obtained in the following ways: GENERAL FEATURES by forced convection With your new Fan oven it is possible to A fan draws in the air contained in cook a variety of food using the 2 different the oven, which circulates it through... - Page 29 Fig. 4.1 Fig. 4.2 (fig. 4.2) TEMPERATURE KNOB To turn on the heating elements of the oven, set first the function selector to the required setting and then the thermostat knob to the desired temperature. To set the temperature, line up the temperature knob indicator with the required temperature.
- Page 30 ECO FUNCTION (ENERGY SAVING) The circular element and the fan are on. The heat is diffused by forced convection. This function reduces the appliance’s energy consumption, it is therefore particularly beneficial for the gentle cooking of small quantities of food on a single shelf. It is not necessary to preheat the oven and use with the oven door closed.
-
Page 31: Oven Temperature Guide
5 - OVEN TEMPERATURE GUIDE Electric oven temperature Cooking process Oven heat Gas mark °C °F Keeping food hot, very cool ½ milk puddings Egg custards cool Rich fruit cakes, cool braising Low temperature moderate roasting, shortbread Victoria sandwich, plain fruit cake, moderate baked fish Small cakes, choux... -
Page 32: Elettronic Clocl "Touch-Control
6 - ELECTRONIC PROGRAMMER The electronic programmer is a device which groups together the following functions: • 24 hours clock with illuminated display • Timer (up to 23 hours and 59 minutes) • Program for automatic oven cooking • Program for semi-automatic oven cooking Description of the buttons: Description illuminated... - Page 33 (fig. 6.2) ELECTRONIC CLOCK ELECTRONIC TIMER The programmer is equipped with an The timer program consists only of a electronic clock with illuminated numbers buzzer which may be set for a maximum which indicates hours and minutes. period of 23 hours and 59 minutes. If the AUTO symbol is flashing push the Upon immediate connection of the oven or after a power cut, three zeros will flash on...
- Page 34 AUTOMATIC OVEN COOKING Set the temperature and the cooking program by using the switch and To cook food automatically in the oven, it is thermostat knobs of the oven (see necessary to: specific chapters). Set the length of the cooking period. oven programmed Set the end of the cooking time.
- Page 35 SEMI-AUTOMATIC COOKING At the end of the cooking time the oven will turn off automatically, the This is used to automatically switch off the symbol will turn off, AUTO will flash and a buzzer oven after the desired cooking time has will be sound, which can be turned off by elapsed.
- Page 36 IMPORTANT – MAIN OVEN NOT WORKING If the main Oven is not working, it may have been accidently set to “AUTOMATIC” or the power to the appliance was interrupted. If the Timer is showing the letter “AUTO” as below or the time of day is flashing, the Oven may not turn on or be delayed in its operation. Before requesting a service call, please refer to the timer set up instructions in this handbook and ensure the timer is set to “MANUAL”...
-
Page 37: Cleaning & Maintenance
7 - CLEANING AND MAINTENANCE GENERAL ADVICE WARNING: When correctly installed, your product • Before you begin cleaning, you meets all safety requirements laid down must ensure that the appliance is switched off at the cooker switch. for this type of product category. However special care should be taken •... - Page 38 • Burner bodies (aluminium alloy): CORRECT REPLACEMENT OF THE They should be cleaned with soapy TRIPLE RING BURNER water and a clean cloth. For stubborn The triple ring burner must be correctly stains a proprietary cream or stainless positioned (see fig. 7.5); the burner rib steel cleaner may be used;...
- Page 39 Fig. 7.1 Fig. 7.2 Fig. 7.3 Fig. 7.4 Fig. 7.5...
- Page 40 ASSEMBLY AND DISMANTLING OF Fig. 7.6 THE SIDE RUNNER FRAMES • Fit the side runner frames into the holes on the side walls inside the oven (fig. 7.6). Slide the rack into the runners (fig. • 7.7). The rack must be fitted so that the safety notch, which stops it sliding out, faces the inside of the oven;...
- Page 41 STORAGE COMPARTMENT REPLACING THE OVEN LAMP The storage compartment is accessible WARNING: Ensure the appliance is through the pivoting panel (fig. 7.9a). switched off and disconnected from the electrical power supply before replacing the lamp to avoid the possibility of electric shock.
- Page 42 REMOVING THE OVEN DOORS The oven door can easily be removed as follows: Open the door to the full extent (fig. • 7.11a). • Open the lever “A” completely on the left and right hinges (fig. 7.11b). Hold the door as shown in fig. 7.11d. •...
- Page 43 REFIT THE DOOR Hold the door firmly (fig. 7.12a). • • Insert the hinge tongues into the slots, making sure that the groove drops into place as shown in the fig. 7.12b. • Open the door to its full extent. •...
- Page 44 REMOVING THE INNER PANE OF GLASS The oven door is fitted with no. 2 panes: • no. 1 outside; • no. 1 inner. To clean all panes on both sides it is necessary to remove the inner pane as follows: Lock the door open: Fig.
- Page 45 AFTER CLEANING, REPLACE THE INNER GLASS PANE When replacing the inner glass pane, make sure that: • You replace the pane correctly, as shown. The pane must be in the position described below in order to fit into the door and to ensure that the Fig.
- Page 46 8 - GUARANTEE Your new “De’Longhi” product comes with 12-month guarantee covering all parts and labour. If your appliance proves to be defective as a result of faulty materials or workmanship during the guarantee period, these parts will be repaired or replaced free of charge. AFTER SALES SERVICE Should you require service, spares or product information and advice: •...
- Page 48 Descri pt i ons an d ill ustrati ons in this booklet a re giv en as simpl y ind icat ive. T h e ma nuf a ct ur er r es erv es the right, consider ing t he cha ract eri stics o f t he models described here, at any time and without notice, to make eventual necessary mo d ifi cat i on s f or the ir constr ucti on or for com merc ial n eeds.
