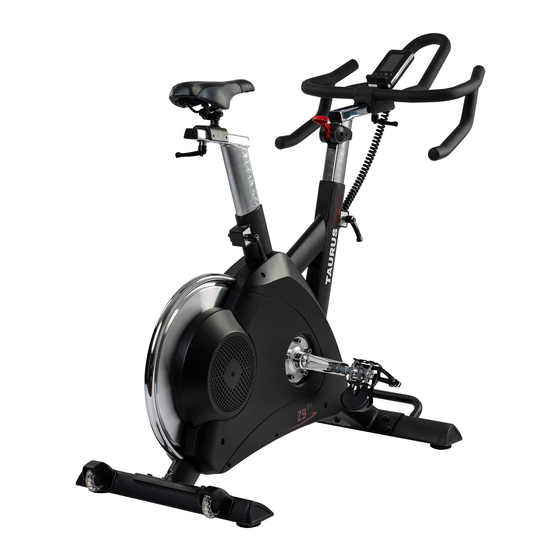

- Page 1 USER’S MANUAL Taurus Racing Bike Z9 Pro TF-Z9-PRO...
-
Page 2: Safety Instructions
Safety Instructions • To ensure the best safety of the exerciser, regularly mechanisms are not projecting into the area of check it on damages and worn parts. movement during the work-out. • When setting up the exerciser, please make sure •... - Page 3 • Assemble the exerciser as per assembly instructions and be sure to only use the strucutral parts provided with the exerciser and designed for it. Prior to the assembly, make sure the contents of the delivery is complete by referring to the parts list of the assembly and operating instructions.
- Page 4 Exploded drawing...
-
Page 5: Part List
Part list Part Part no. Description Specification Description Specification Q'ty main frame nylon nut M8*1.25*8T front stabilizer buffer D9*D5.8*13 rear stabilizer magnet cell 29*3*3 left triangle cap 95.7*57.2*51.3 cross bolt M5*0.8*10L adjustable round right triangle cap 95.7*57.2*51.3 wheel D59*M10*40L allen bolt M8x1.25x20L bolt M8*1.25*40L... - Page 6 left crank 170*9/16"-20BC brake plate 54.5*37*13 right crank 170*9/16"-20BC cow leather 52*31*4T 25L&25 pedal JD-012,9/16" bolt M8x1.25x45L bolt M8x1.0x16 cable plug D4*D12*13 bolt cover D23x6.5 cross bolt M5*0.8*10L screw M10*1.5*20L computer SM-2534-64 M10*1.5*8T stop plug D20*D5.7*7 round cross bolt M5x0.8x15L round head screw M6*1.0*50L D6*26.5*7.7...
- Page 7 Inner-Hex spring D1.2*55L Spanner flat washer D18*D8.5*1.0T open-wrench 155*30*5T inner hex wrench M6,8.8 CHECK LIST (CONTENTS OF PACKAGE)
- Page 8 STEP 1 1) Assemble the front stabilizer (2) and rear stabilizer (3) onto the main frame (1) by using the flat washer (7), spring washer (6), and Allen bolt (5). 2) Adjust the proper height by turning the wheel of front & rear foot cap (59). 3) Cover the cover of moving wheel (79)
- Page 9 STEP 2 1) front post (8) & seat post (9) already pre-assembled with main frame, Adjust the most suitable position by knob...
- Page 10 STEP 3 1) Fix handlebar (13) onto the front post (8) by L knob (12) and then fix the stop bolt (15) and spacer (106) Assemble the saddle (10) onto the seat post (9) by L know (12), and then fix the stop bolt (5) and spacer (106).
- Page 11 STEP 4 1) Through the computer cable(105) from the hole of computer fixing plate (fig a) 2) Insert the cable plug (83) (fig b) Fix the computer (85) onto the plate(14) by screw (84)
- Page 12 STEP 5 1) Assemble the left pedal(25L) onto left crank by anti-clockwise, and fix the right pedal(25R) onto right crank by clockwise 2) connect the adaptor(100) with machine and electric socket...
- Page 13 Step 6 You can move the machine easily...
- Page 18 Programme:...
