O P E R A T I N G I N S T R U C T I O N S

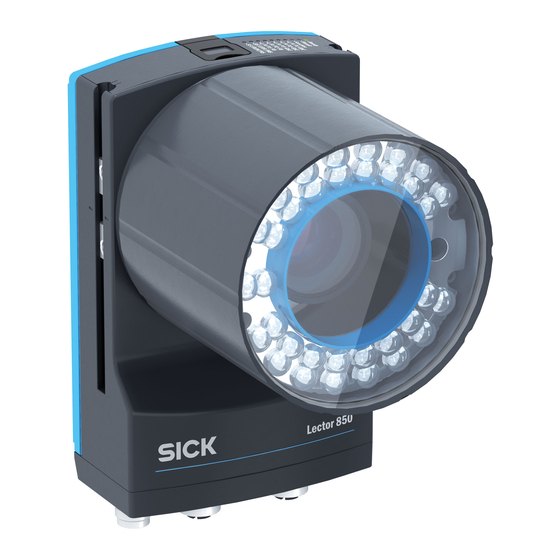

Lector85x CAN I/O
Image-based code reader

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Lector85x and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SICK Lector85x

Summary of Contents for SICK Lector85x

  • Page 1 O P E R A T I N G I N S T R U C T I O N S Lector85x CAN I/O Image-based code reader...
  • Page 2 Original document This document is an original document of SICK AG. O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 3: Table Of Contents

    Inserting and removing memory card............. Saving the parameter set................. 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...
  • Page 4 12.1 Declarations of conformity and certificates..........12.2 Licenses....................O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 5: About This Document

    Technical VI83I-xxxxxxHx illumination 8027770 www.sick.com/8027770 information unit 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 6: Further Information

    • Other publications • Software • Accessories O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 7: Safety Information

    No maintenance is required to ensure compliance with the LED risk group. For both radiation types: 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...
  • Page 8 If the housing is damaged, disconnect the device from the voltage supply and do ■ not put it into operation. O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 9: Intended Use

    Network services and ports • Password management 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 10: Qualification Of Personnel

    • knowledge of the applicable regulations and standards O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 11: Product Description

    Product and type designation Product characteristics Product ID 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 12: Type Code

    Product overview Product overview C-mount thread Lens O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 13: Integrated Illumination Unit

    The alignment aid can be switched off. 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 14: Display And Control Elements

    Data transmission over the Ö network (1 Gbit/s) O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...
  • Page 15 No supply voltage or no Ethernet/IP app installed. 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...
  • Page 16 (10/100 Mbit/s) o = off; O = illuminated; Ö = flashing O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 17: Working Distance

    Figure 3: Assignment of codes to objects 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...
  • Page 18 If the speed of the conveying equipment is variable, an external encoder is required for the three-dimensional assignment of codes. O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK...

  • Page 19: Mounting

    This mounting step is only required for the Lector85x Flex product variant (basic device). 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...
  • Page 20 Do not touch the glass lenses at either end of the lens unit with your fingers. ► O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK...

  • Page 21: Assembling The Product

    The Ready status LED lights up green. Perform fine tuning. 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 22: Electrical Installation

    If necessary: low-impedance and current-carrying equipotential bonding between ■ areas with different ground potentials O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...
  • Page 23 This measure achieves a high degree of resistance to electromagnetic interference. 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...
  • Page 24 System controller Device Voltage supply O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 25: Pin Assignment

    • Implement proper and complete shielding concept. 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...
  • Page 26 Configurable digital input and out‐ Do not connect. put 6 O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 27: Network Services And Ports

    Configure the CAN data interface using SOPASair. 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 28: Can Connection Principle

    CAN male connector with terminating resistor ß O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...
  • Page 29 CAN male connector with terminating resistor à 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 30: Commissioning

    The new password is valid immediately. Log in again with the newly assigned password. O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK...

  • Page 31: Changing Password

    Main Authorized client Client Service Service level 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 32: External Data Back-Up

    The device then starts with its new valid parameter set. O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK...

  • Page 33: Inserting And Removing Memory Card

    8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 34: Installing Firmware Updates

    In the bottom right window, click the Install button. ✓ The firmware update is installed. O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 35: Maintenance

    Remove any dust from the housing using a soft brush. 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 36: Troubleshooting

    If only the camera housing and not the lens is replaced, readjust the focus position on the lens. O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK...

  • Page 37: Decommissioning

    SICK will be glad to help you dispose of these products on request. 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 38: Technical Data

    IEC 60825-1 Ed. 3., as described in Laser Notice No. 56 dated 8 May 2019. P < 0.39 mW O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 39: Mechanics And Electronics

    143.4 mm x 90 mm x 46 mm  W x H) 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 40: Dimensional Drawing

    4 M5 tapped blind holes, 5.5 mm deep; for mounting the device Complete device Product type: V2D8505x–xxxxxxxxxx O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 41: Performance

    2D code types Data-Matrix ECC200, MaxiCode, QR code 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 42: Interfaces

    Image and data storage via external FTP retrieval O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 43: Ambient Data

    Field of view diagram Lector85x Flex Product type: V2D8505R-xxxxxxxxxx 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...
  • Page 44 Working distance in mm Lector85x Flex Product type: V2D8509R-xxxxxxxxxx O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...
  • Page 45 Working distance in mm Lector85x Flex Product type: V2D8512R-xxxxxxxxxx 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...
  • Page 46 1D code 2D code Working distance in mm O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK Subject to change without notice...

  • Page 47: Accessories

    {S/N} corresponds to the serial number of the product, see type label (if indicated). 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...

  • Page 48: Annex

    For license texts, see www.sick.com/licensetexts. Printed copies of the license texts are also available on request. O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O 8027859/1KN0/2023-08-02 | SICK...
  • Page 49 ANNEX 8027859/1KN0/2023-08-02 | SICK O P E R A T I N G I N S T R U C T I O N S | Lector85x CAN I/O Subject to change without notice...
  • Page 50 Phone +65 6744 3732 Phone +30 210 6825100 Phone +65 6744 3732 E-Mail sales.gsg@sick.com E-Mail office@sick.com.gr E-Mail sales.gsg@sick.com Hong Kong Slovakia Phone +852 2153 6300 Phone +421 482 901 201 E-Mail ghk@sick.com.hk E-Mail mail@sick-sk.sk Detailed addresses and further locations at www.sick.com SICK AG  |  Waldkirch  |  Germany  |  www.sick.com...
